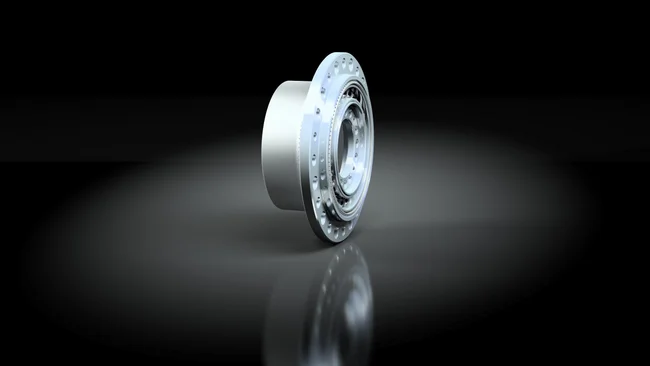

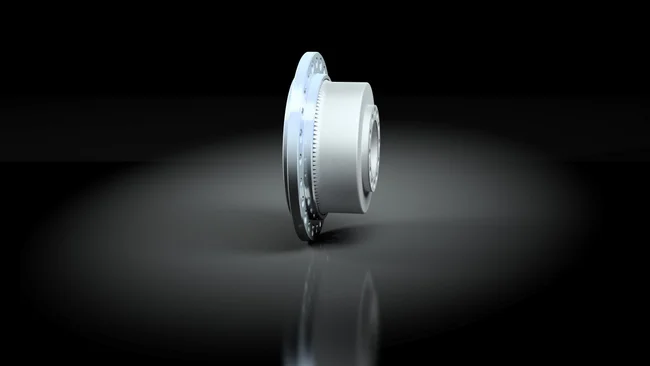

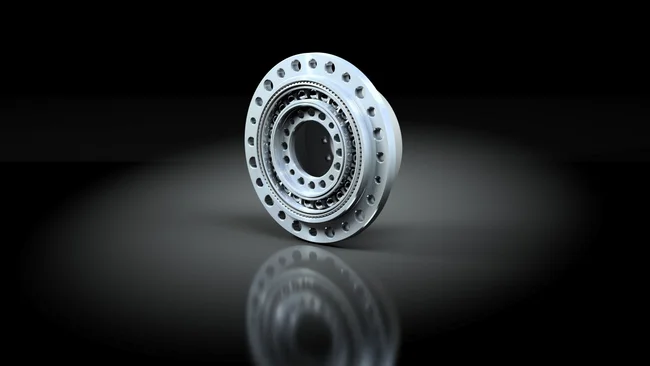

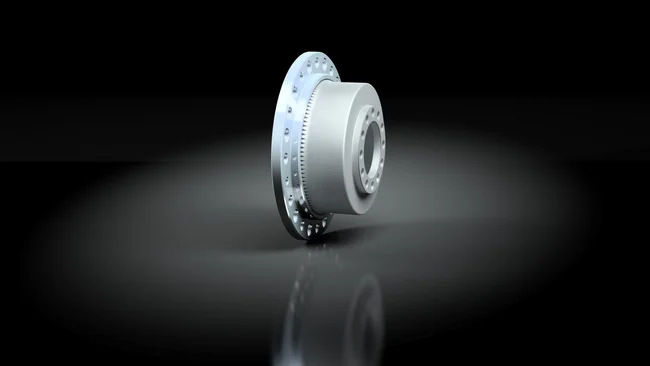

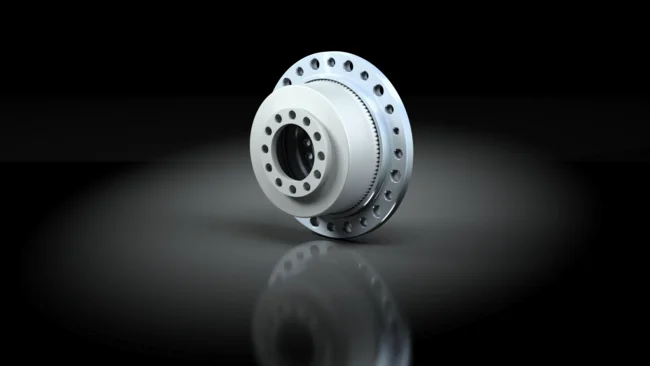

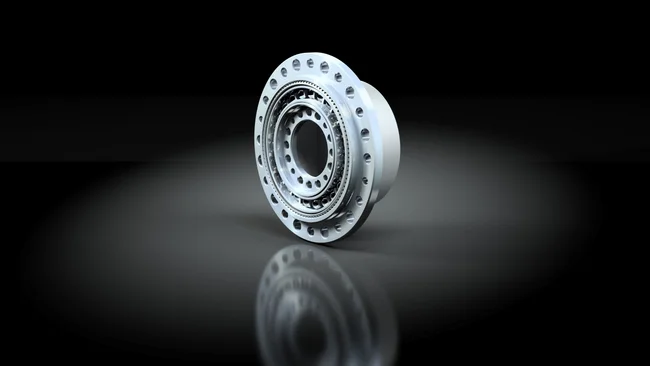

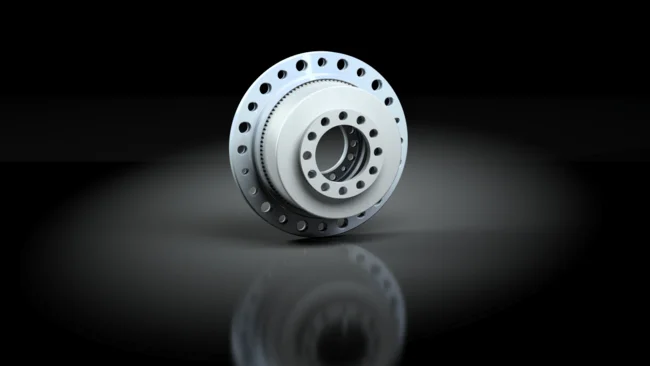

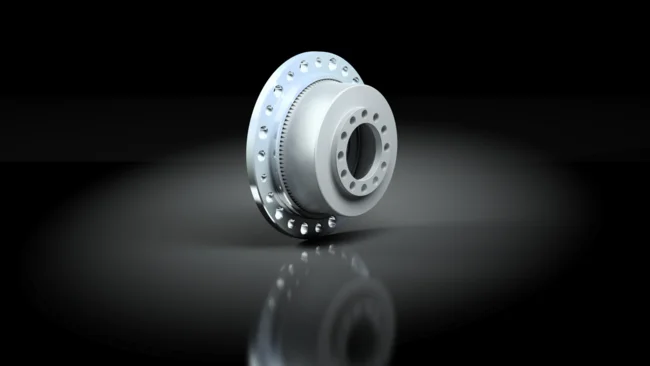

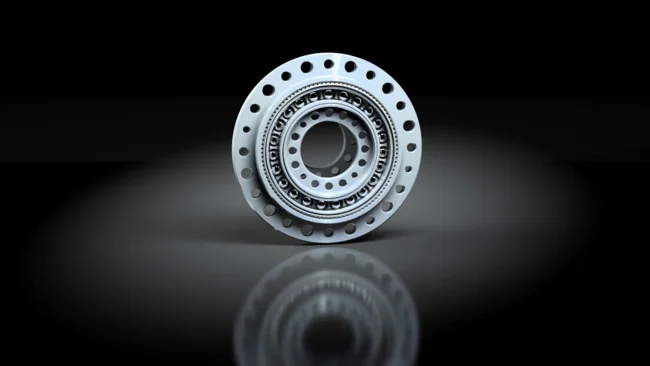

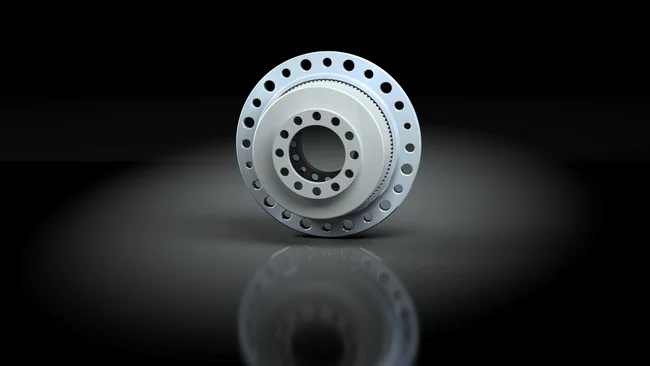

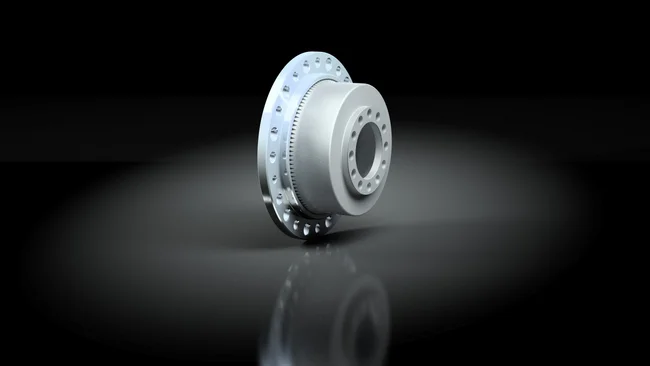

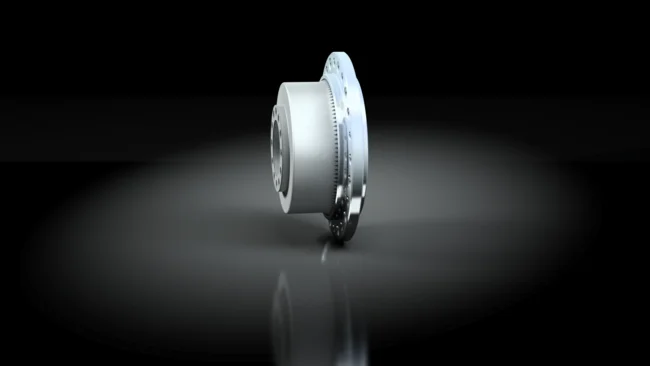

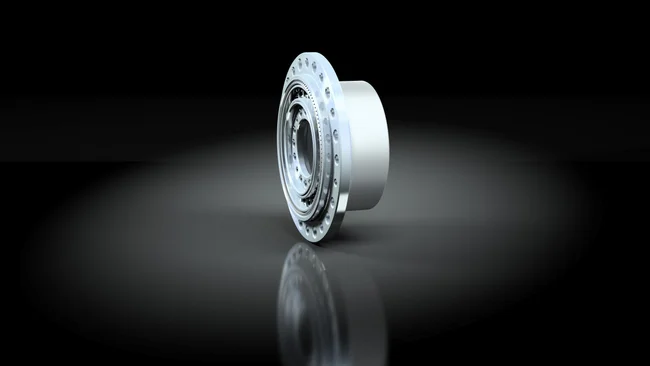

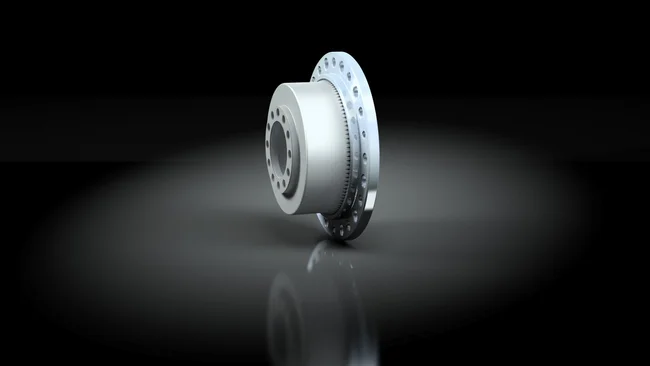

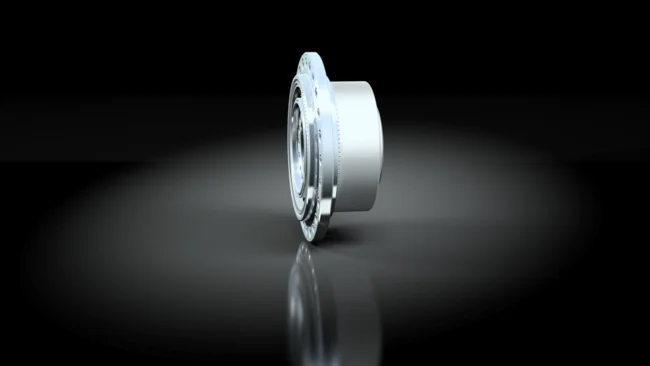

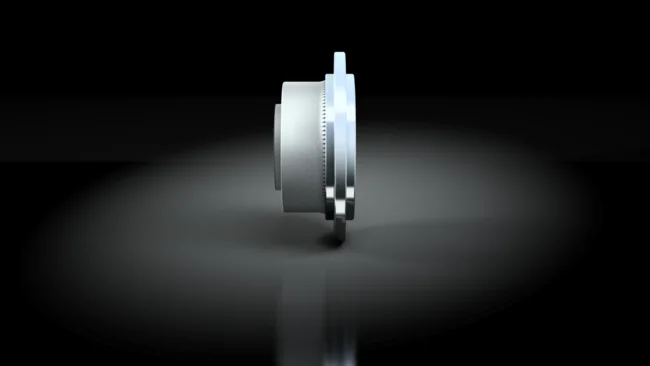

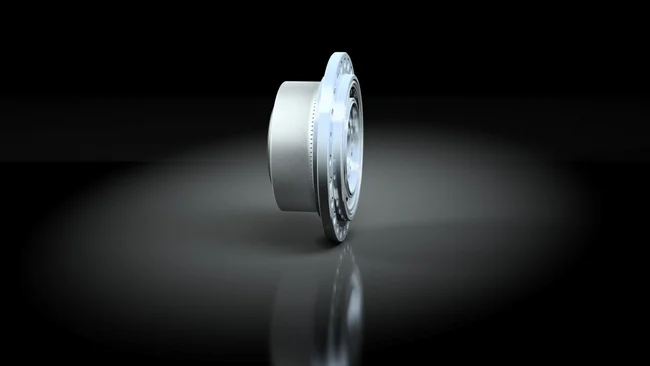

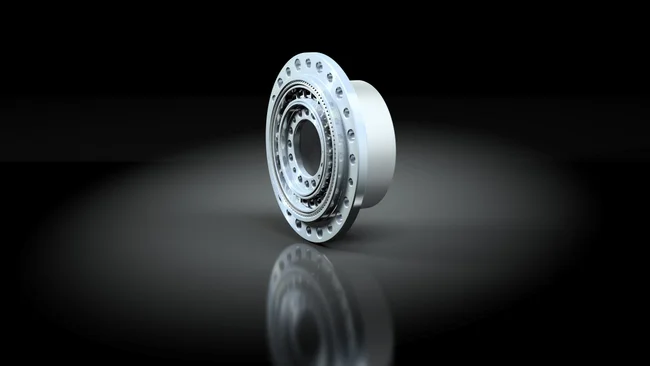

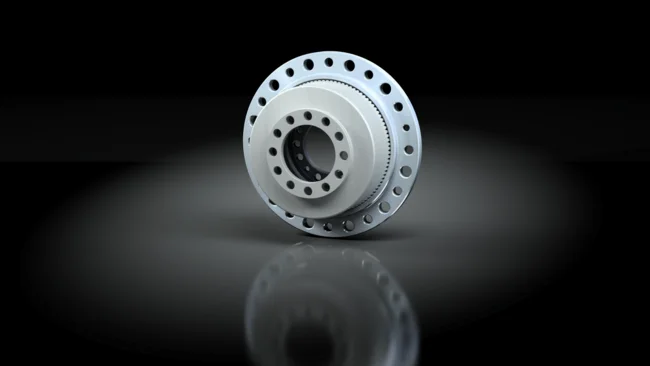

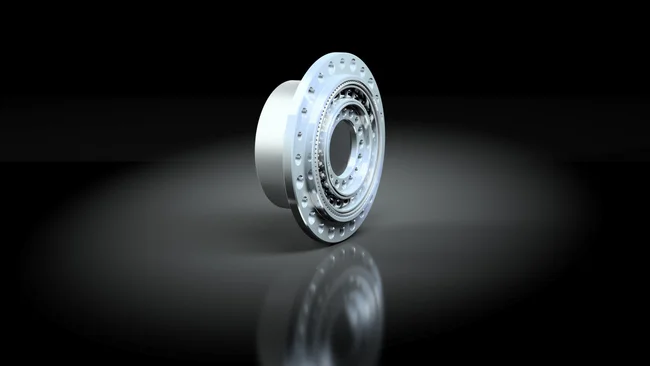

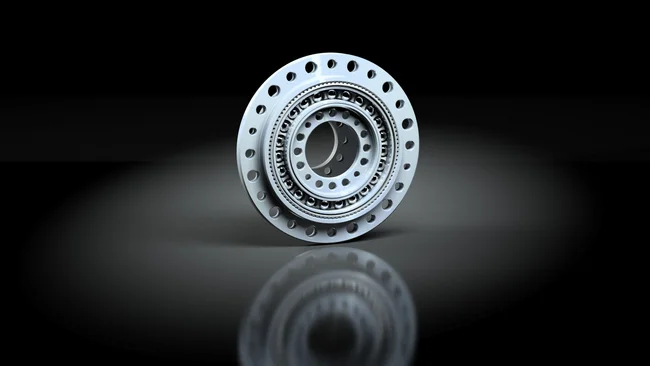

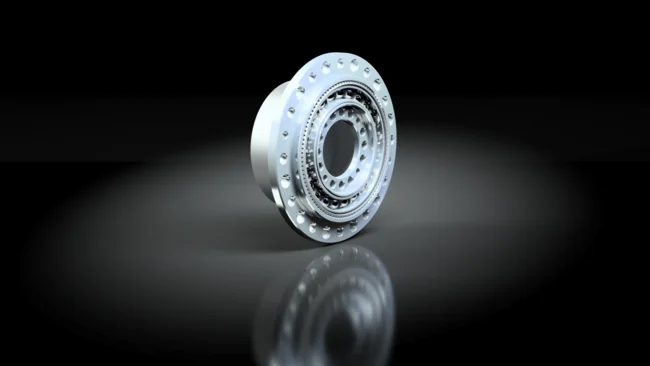

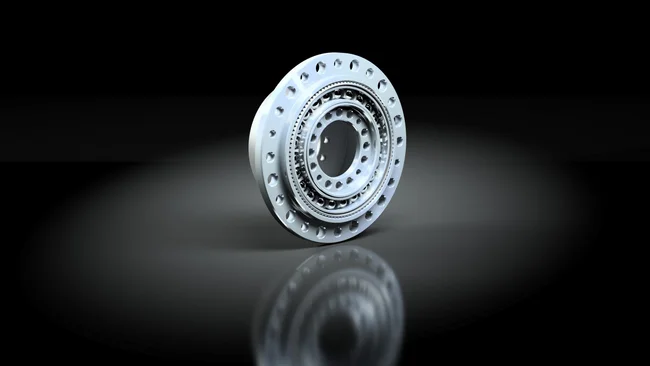

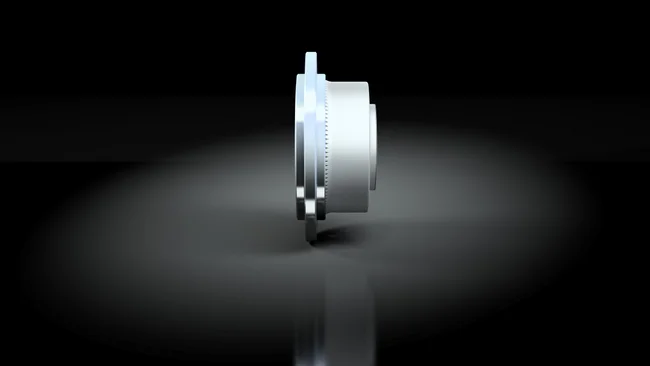

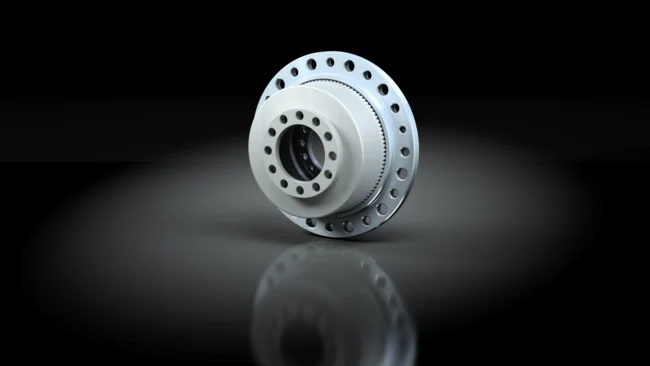

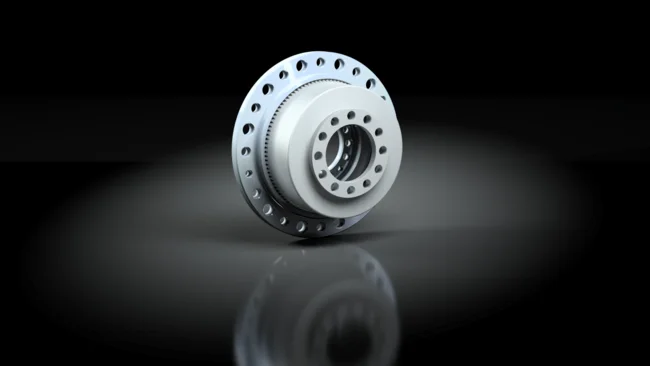

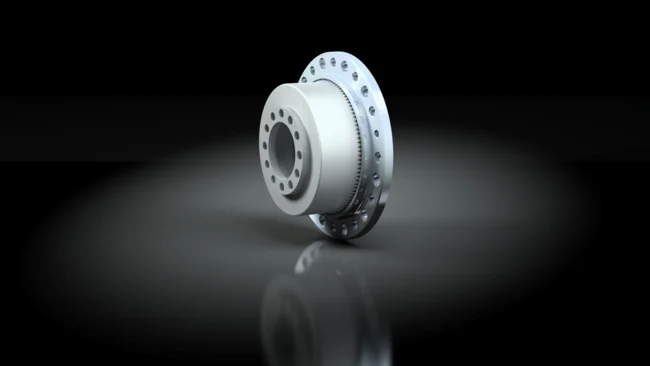

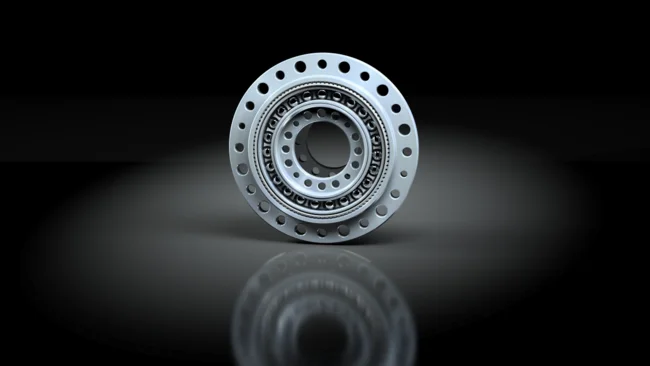

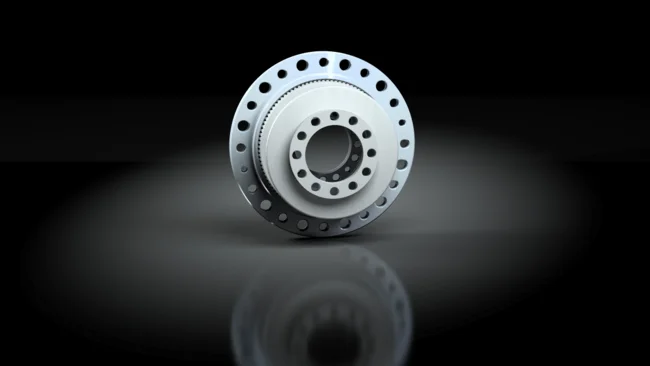

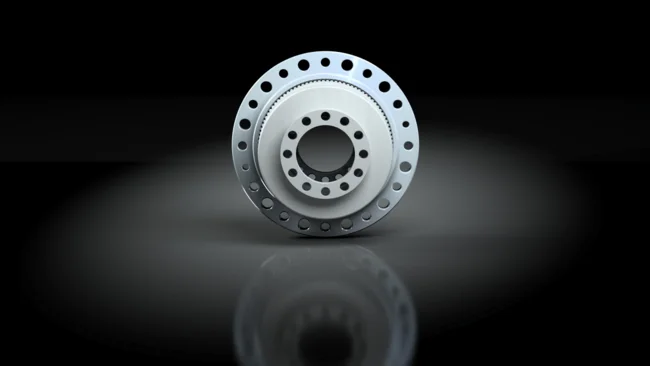

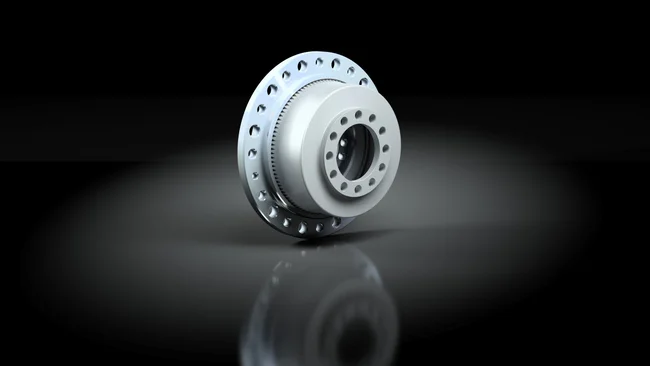

CPL-2A

The lightweight gear with large hollow shaft

Maximum torque:

9 … 372 Nm
Ø Hollow shaft:

13.5 … 36 mm
Sizes:

14 … 32
Ratio:

30 … 160

Downloads

The lightweight gear with large hollow shaft

The CPL-2A Series Gear Component Sets are characterised by their very low weight, low moment of inertia and are perfectly suited for moving axes with the highest dynamics.

Harmonic Drive® Triangle Technology

In addition to the proven strain wave gear technology, CPL-2A Series is also available in Triangle Technology. Setting new standards in torsional stiffness, transmission accuracy and dynamics.

Strain Wave Gear Technology Triangle Technology

Features

High torques at the lowest weight
High dynamics due to reduced moment of inertia
Large hollow shaft for the passage of supply cables and shafts
Small outer diameter
Ideal for applications with own output bearing arrangement
