Gears with output bearing

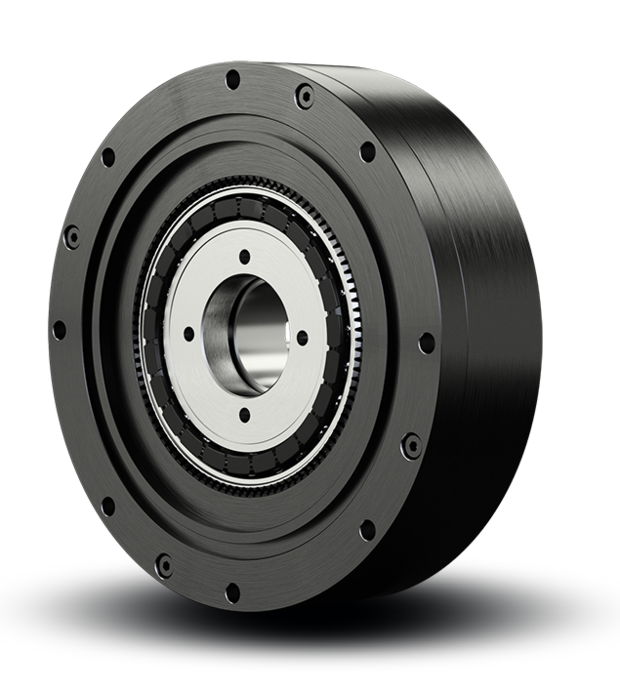

CSD-2UF

Compact and lightweight hollow shaft gear with maximum load capacity

  • Maximum torque:
    12 … 453 Nm
  • Tilting moment:
    91 … 849 Nm
  • Sizes:
    14 … 40
  • Ratio:
    50 … 160
  • Ø Hollow shaft:
    9 … 37 mm

Highly compact with reinforced output bearing



The CSD-2UH/-2UF Series Gears consist of a short mounting CSD Gear Component Set and a tilt resistant output bearing. They are characterised by a short design, lowest weight and excellent corrosion protection.



Features

  • Shortest construction
  • Lowest weight
  • Integrated tilt resistant output bearing
  • Optional hollow shaft
  • Direct motor attachment possible

Branches

Harmonic Drive SE products stand for precision, reliability, and maximum performance. They are used in a wide variety of applications—anywhere where precise movements, compact designs, and durable drive solutions are required.

Mechanical Engineering

Compact and precise actuators for machine tools – ideal for limited space and the highest manufacturing requirements.

Learn more

01

Medical Technology

Precise, reliable gear technology for rehabilitation systems and medical technology – for safe, efficient, and targeted therapies.

Learn more

02

Robotics, Handling & Automation

Precise, safe movements in collaborative and industrial robots – Harmonic Drive® products control every axis for maximum efficiency and flexibility.

Learn more

03

Applications

Applications

  • Industrial robots
  • Exoskeletons
  • Surgical robots
  • Machining center
