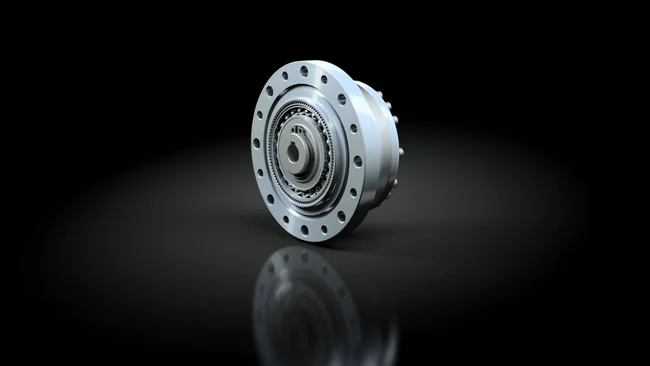

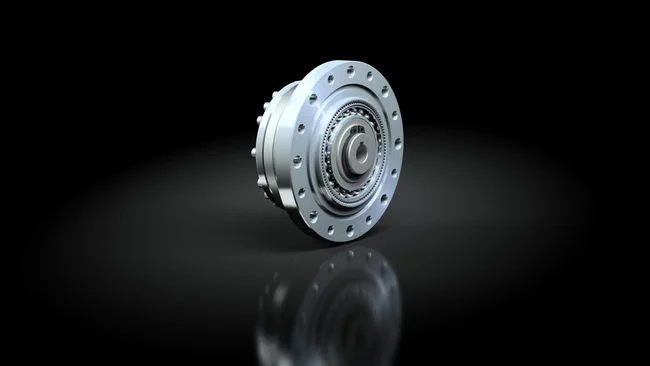

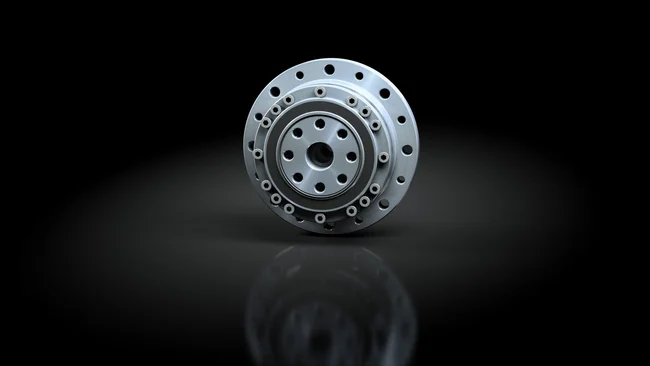

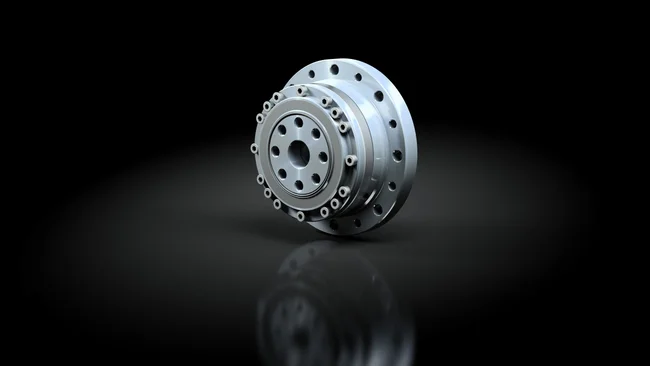

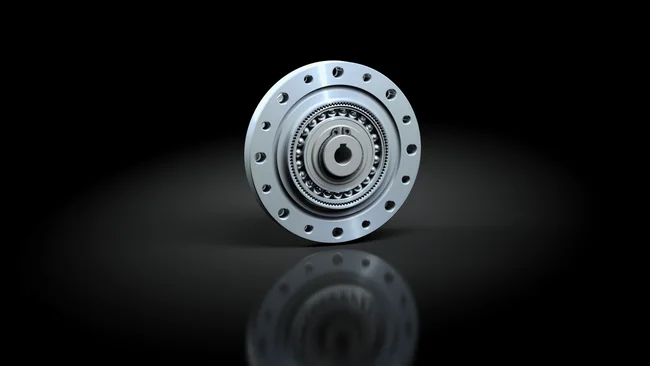

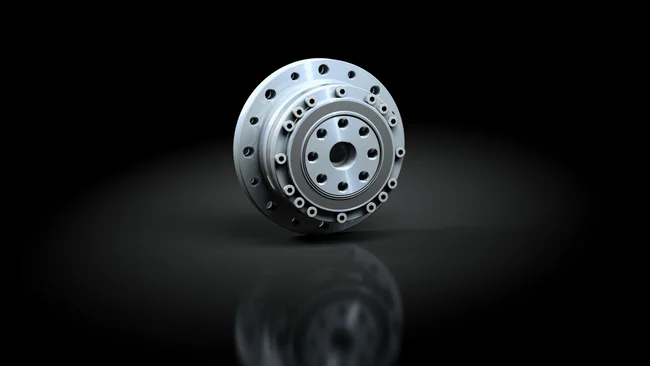

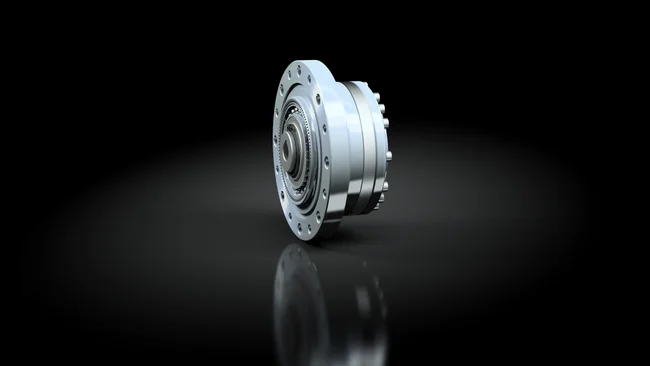

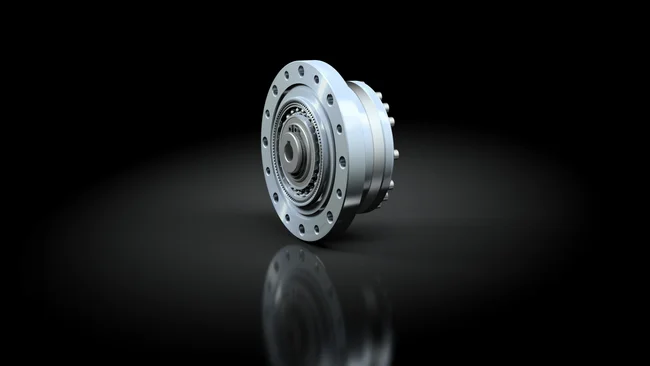

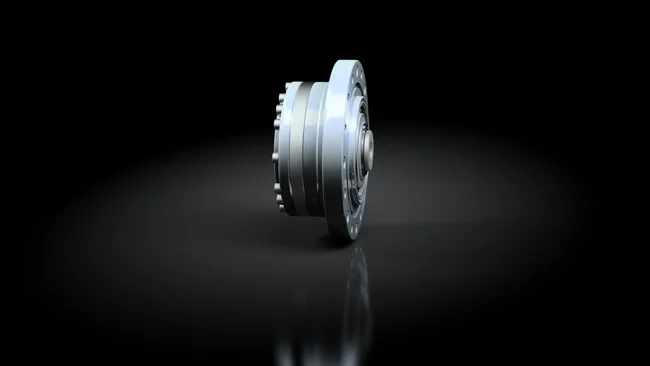

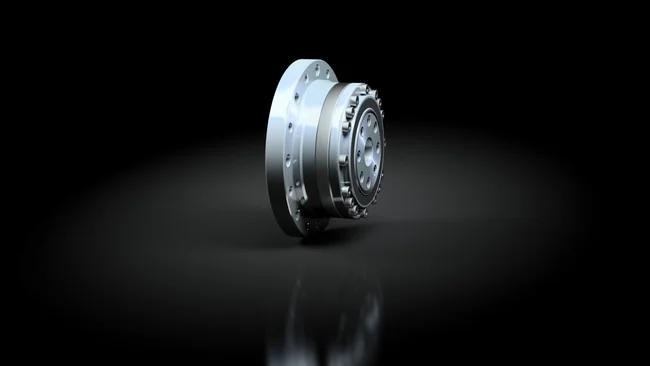

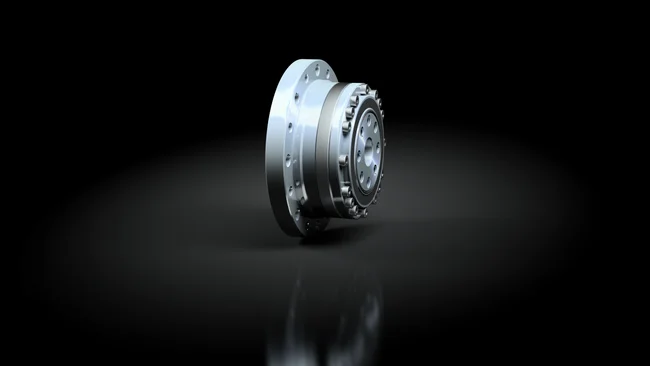

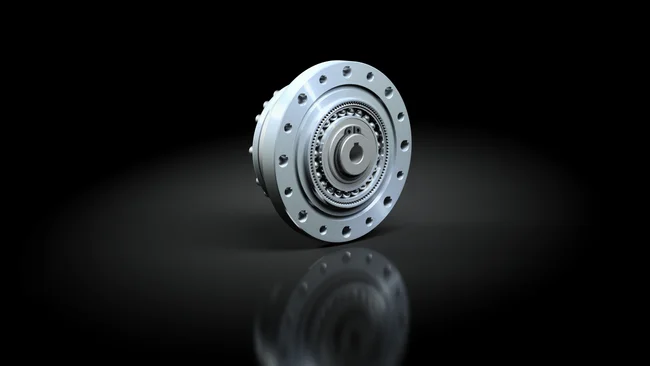

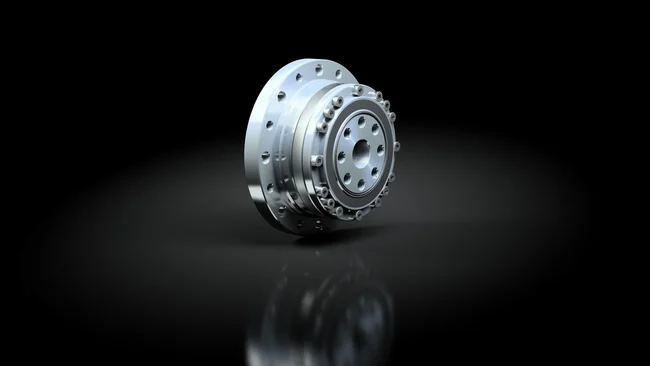

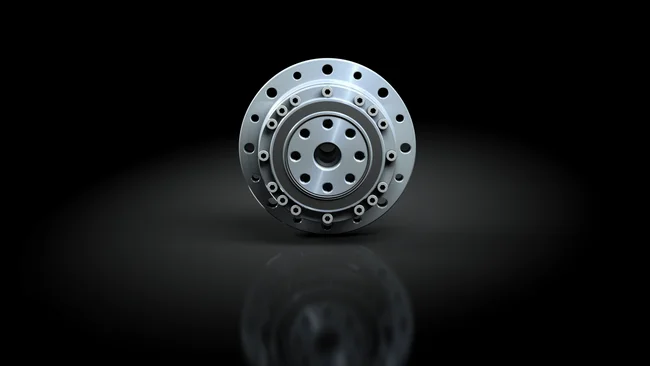

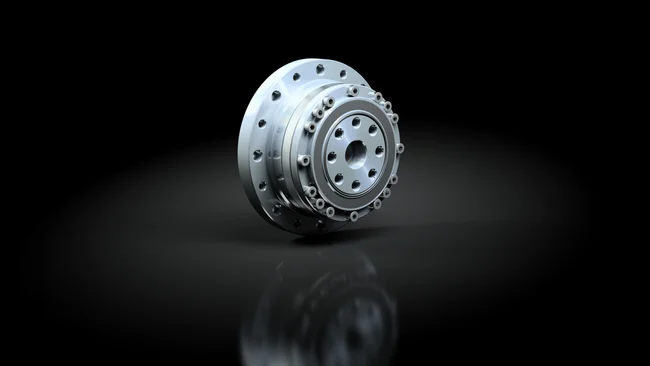

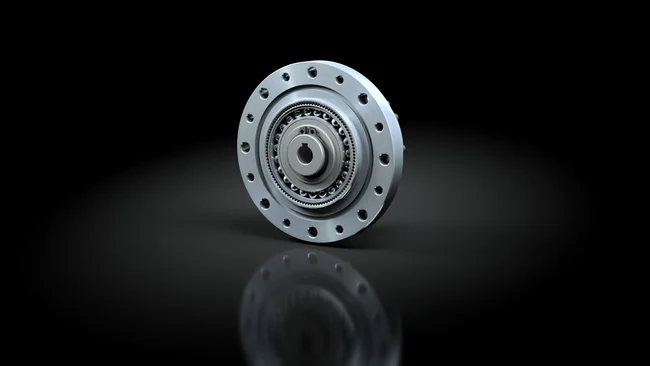

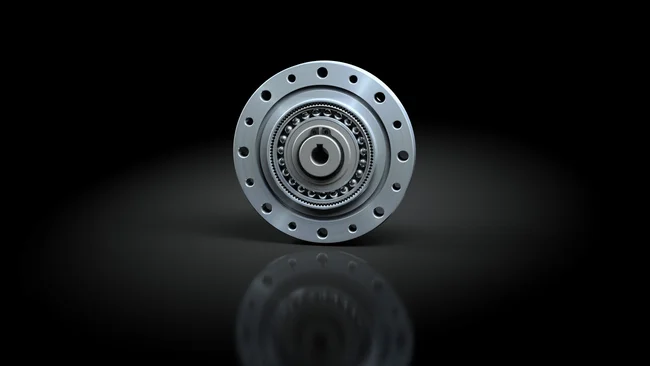

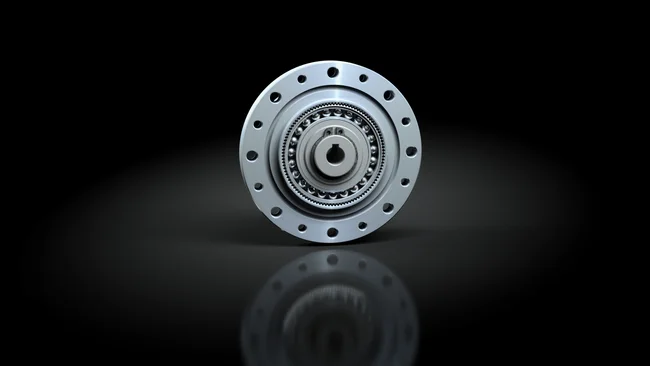

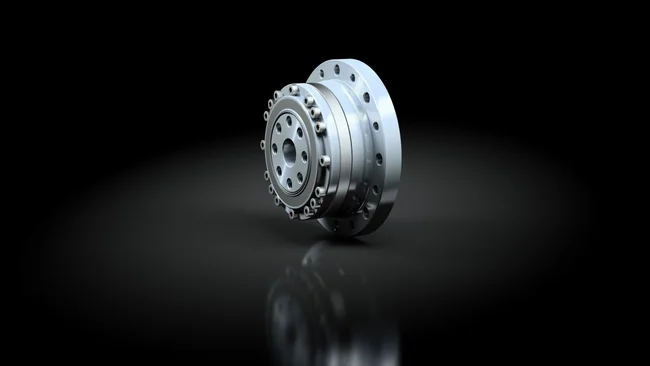

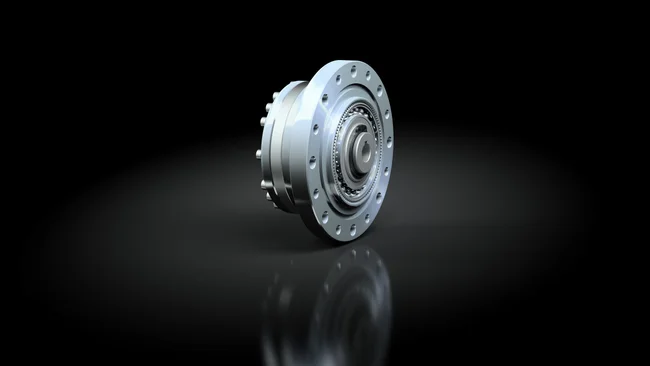

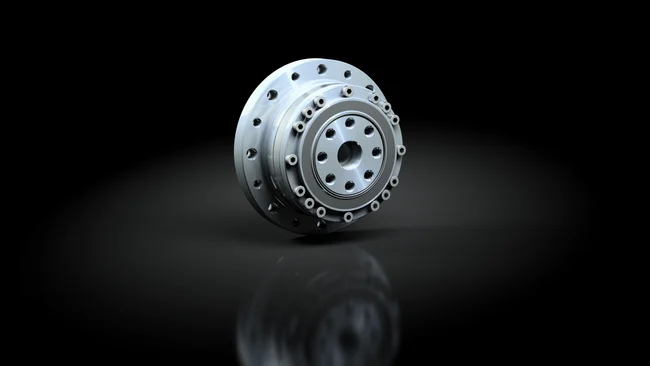

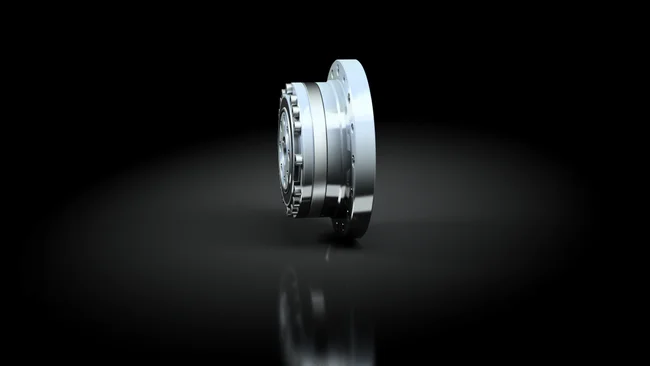

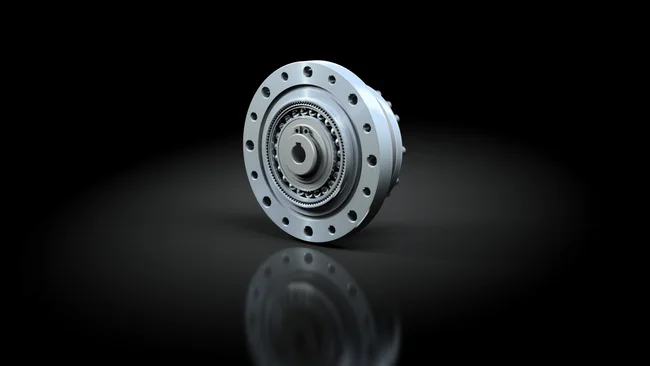

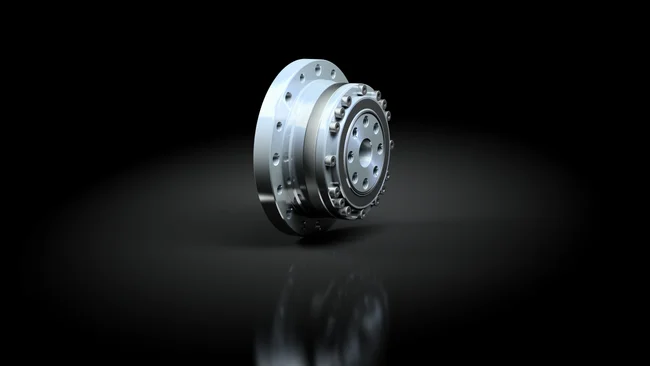

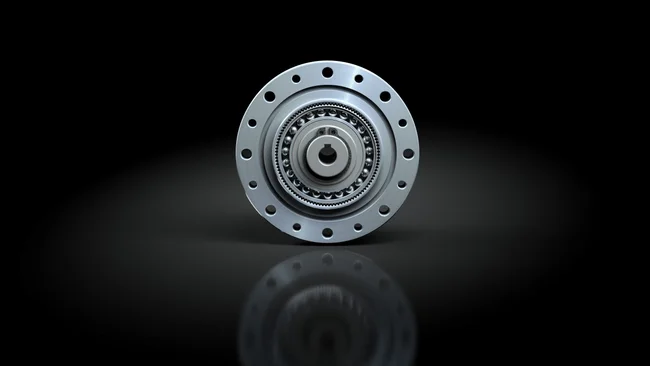

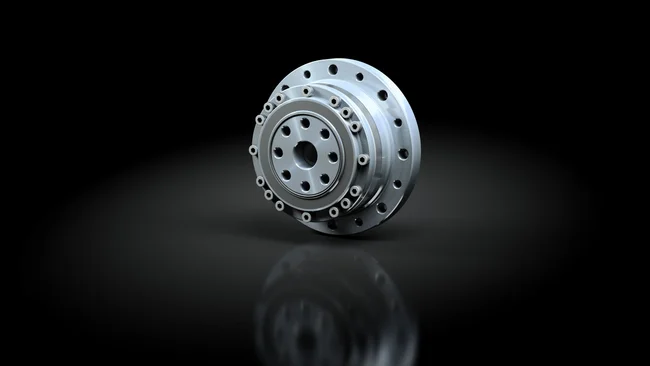

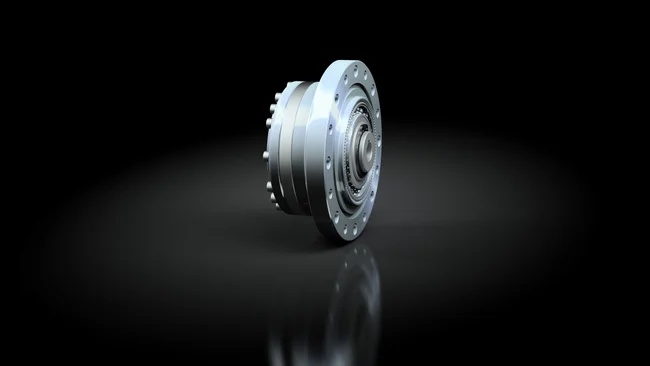

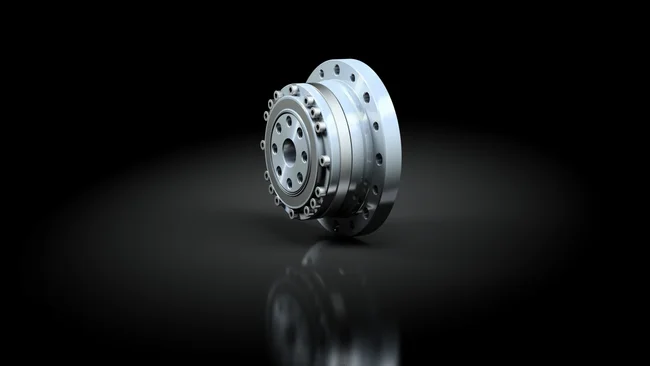

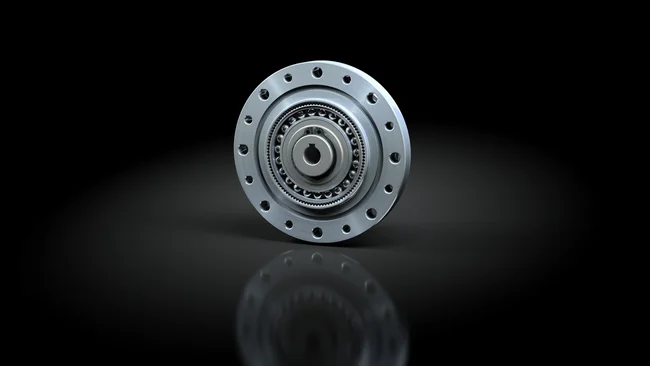

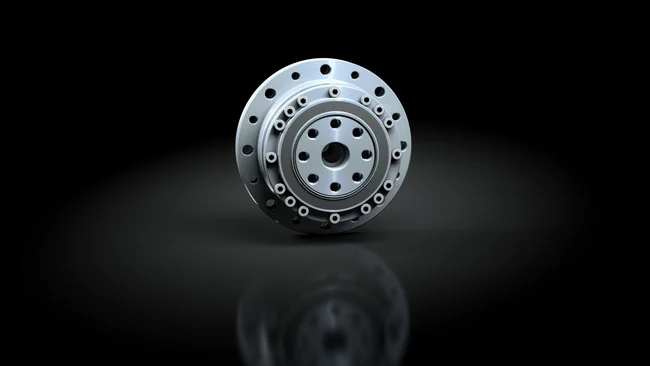

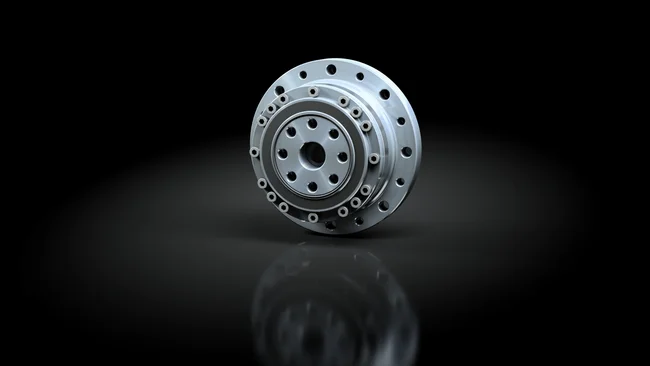

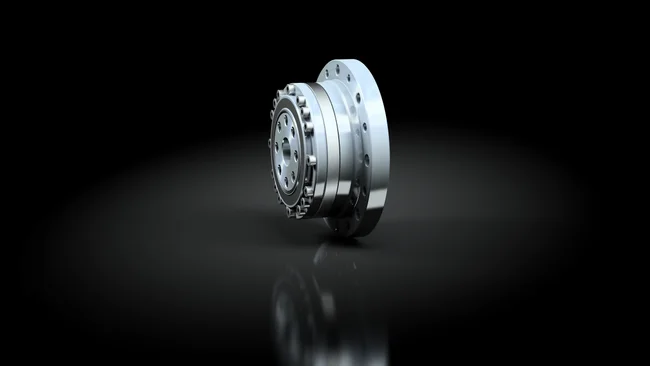

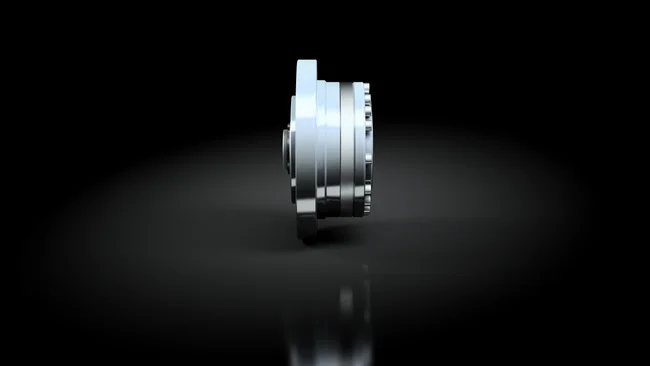

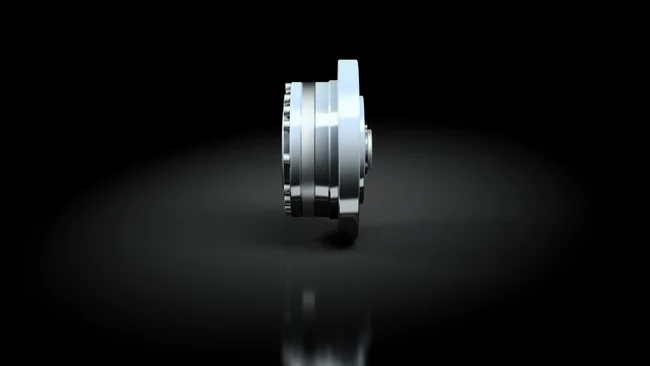

CSG-2UH

Highest torque capacity and lifelong precision

Tilting moment:

41 … 1175 Nm
Sizes:

14 … 65
Maximum torque:

7 … 6175 Nm
Ratio:

50 … 160
Ø Hollow shaft:

-

Downloads

Highest torque capacity and lifelong precision

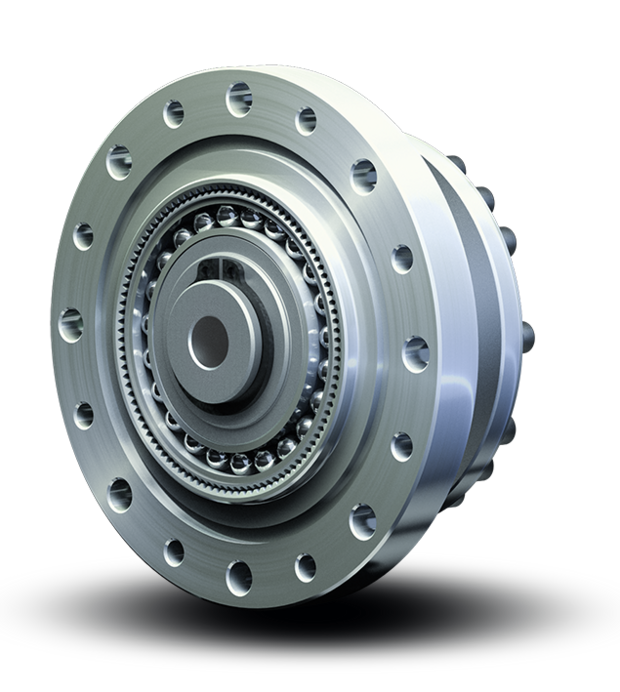

The CSG-2UH Series Gears with output bearing are characterised by maximum torque capacity and service life with a small outer diameter as well as lifelong precision and freedom from backlash.

Harmonic Drive® Triangle Technology

In addition to the proven strain wave gear technology, CSG-2UH Series is also available in Triangle Technology. Setting new standards in torsional stiffness, transmission accuracy and dynamics.

Strain Wave Gear Technology Triangle Technology
