Gears with output bearing

CSG-CPS

Gear with input shaft with highest torque capacity and reinforced output bearing

  • Maximum torque:
    44 ... 841 Nm
  • Tilting moment:
    114 ... 886 Nm
  • Ø Hollow shaft:
    -
  • Sizes:
    17 ... 40
  • Ratio:
    50 ... 160
Downloads

Highest torque capacity and reinforced output bearing

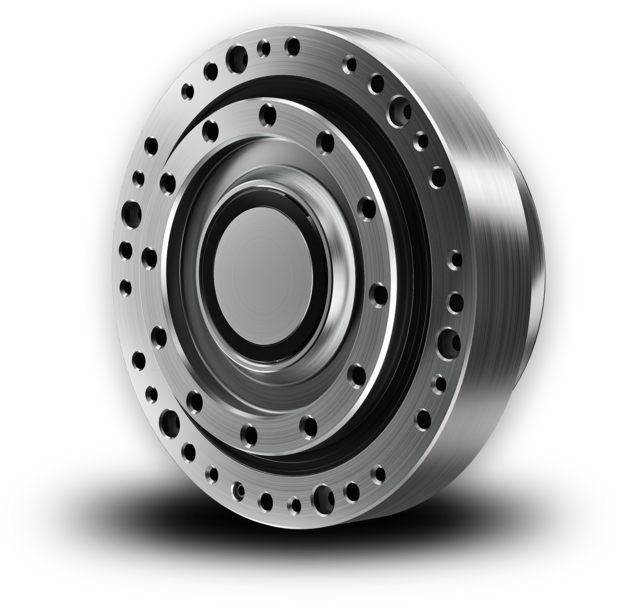

The CSG-CPM/H/S Series gears with output bearing consist of a precise CSG-2A Gear Component Set and a tilt resistant output bearing. They are available as motor mounted gear, with hollow shaft or with input shaft.



Harmonic Drive® Triangle Technology


In addition to the proven strain wave gear technology, CSG-CPM/H/S Series is also available in Triangle Technology. Setting new standards in torsional stiffness, transmission accuracy and dynamics.



Features

  • Highest torque capacity
  • Outstanding, lifetime precision and zero backlash
  • Longest lifetime
  • Three versions for different mounting situations
  • Large torque range
  • Integrated tilt resistant cross roller bearing
