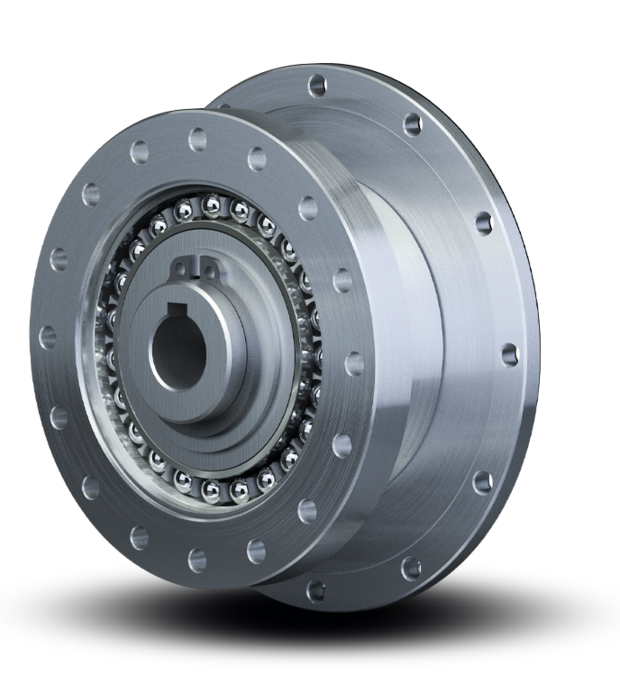

Gear Component Sets

SHG-2A

High overload capacity and service life

Maximum torque:

7 … 6175 Nm
Ø Hollow shaft:

-
Sizes:

14 … 65
Ratio:

50 … 160

High overload capacity and service life

The SHG-2A Series Gear Component Sets are characterised by maximum torque capacity, service life and overload capacity and are available with a large hollow shaft as an option.

Harmonic Drive® Triangle Technology

In addition to the proven strain wave gear technology, SHG-2A Series is also available in Triangle Technology. Setting new standards in torsional stiffness, transmission accuracy and dynamics.

Strain Wave Gear Technology Triangle Technology

Features

Highest torque capacity
Long service life
High torque range
Large hollow shaft for the passage of supply cables and shafts available as an option
Ideal for applications with own output bearing arrangement
