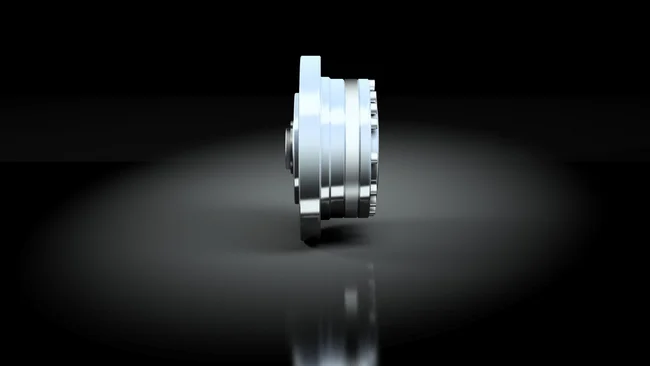

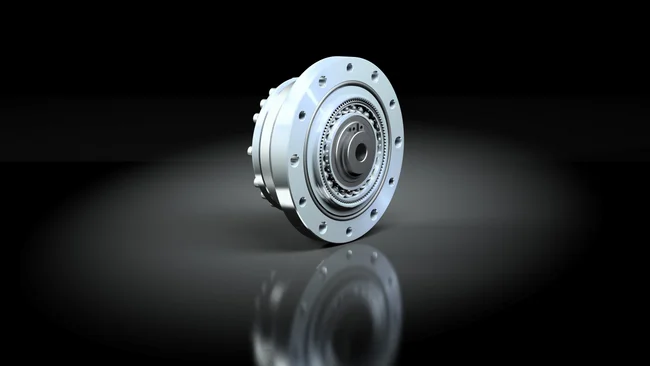

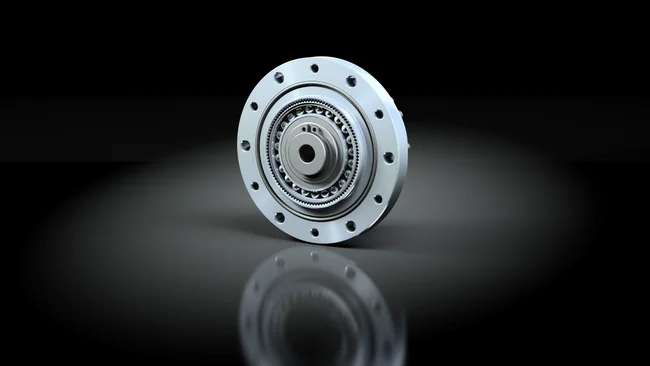

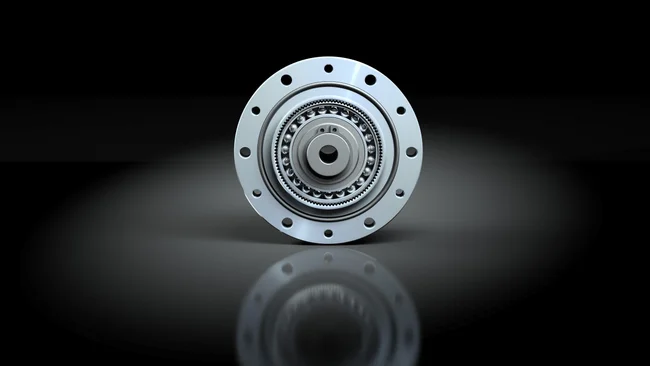

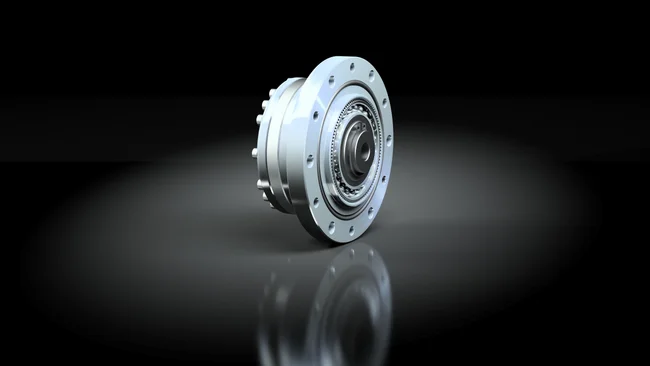

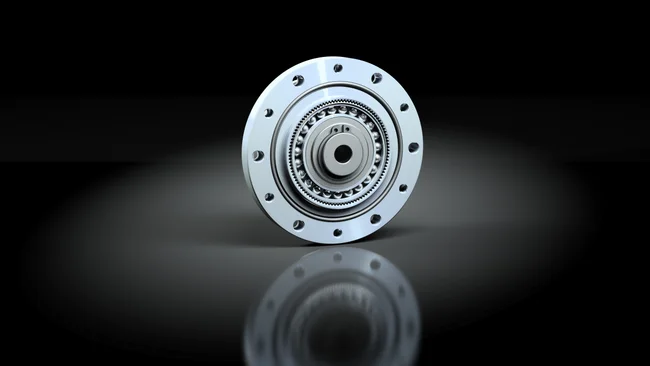

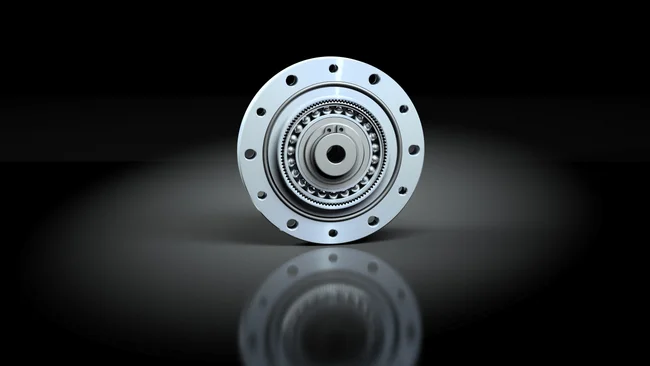

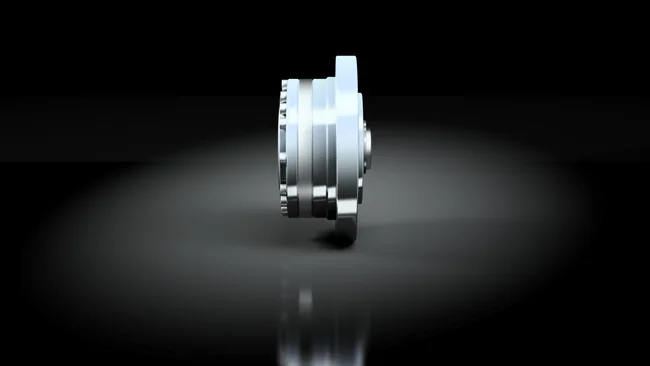

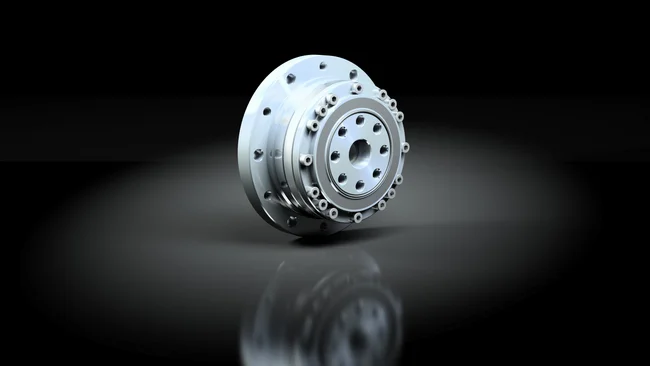

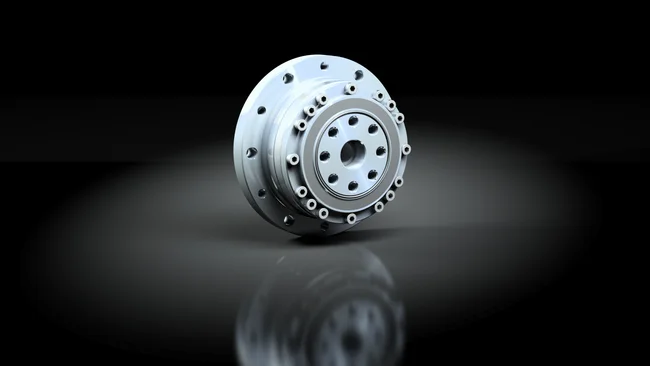

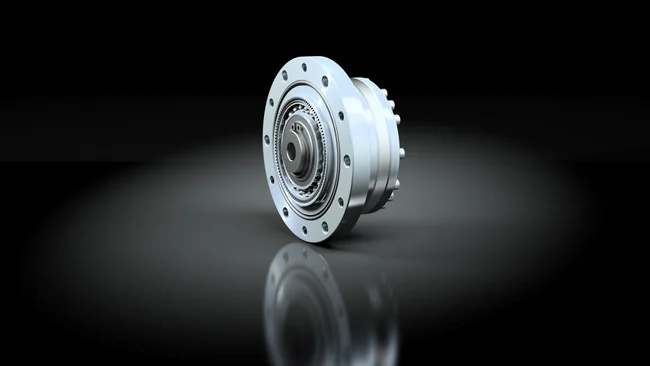

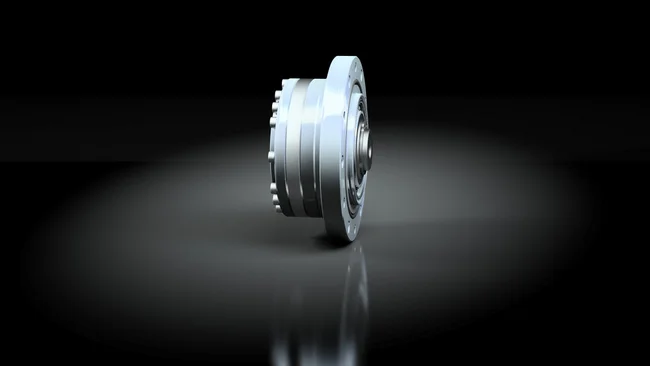

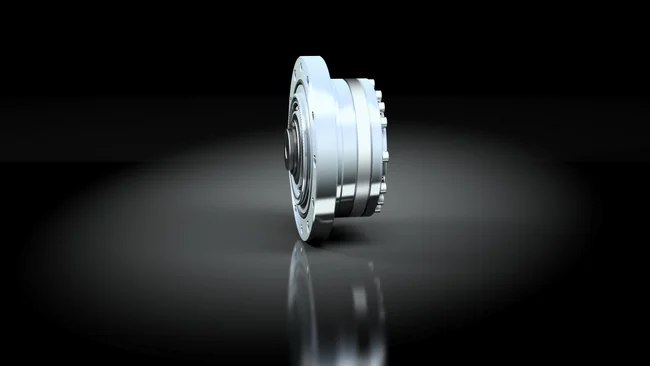

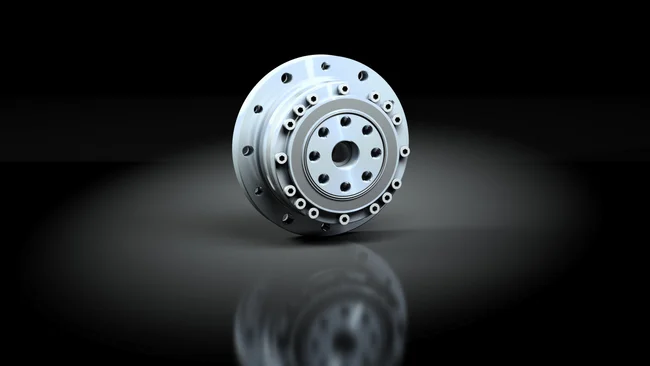

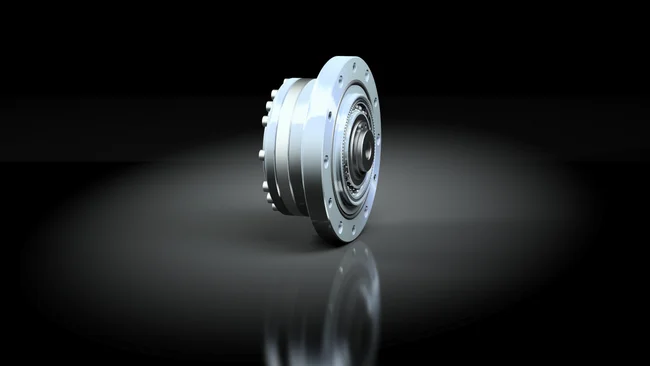

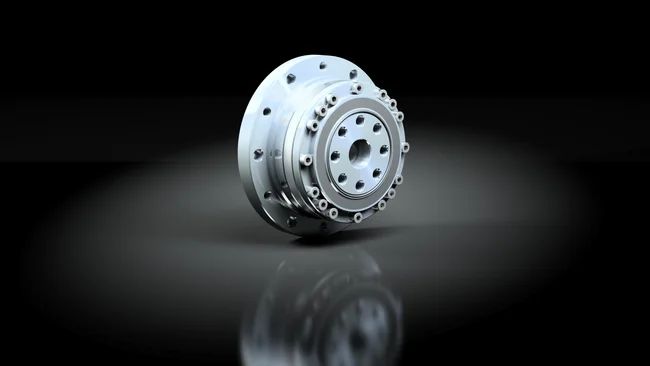

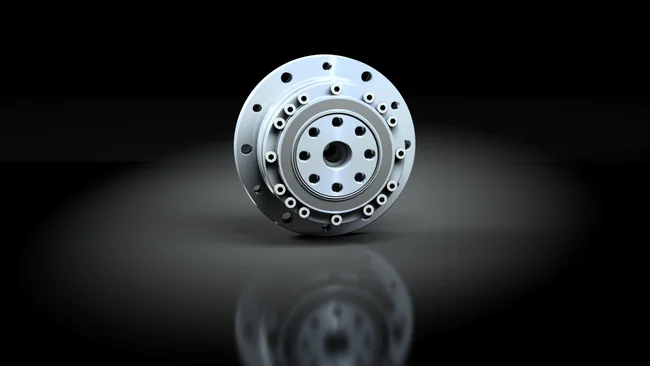

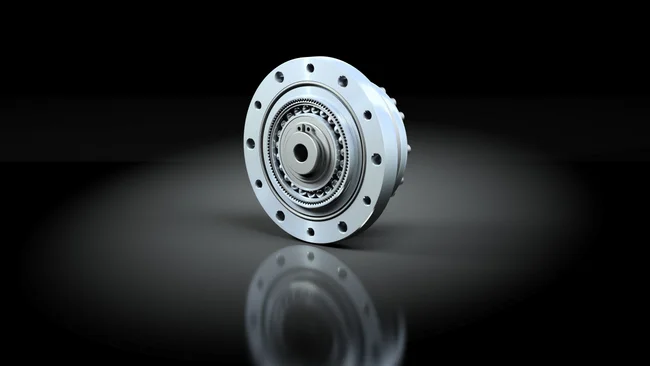

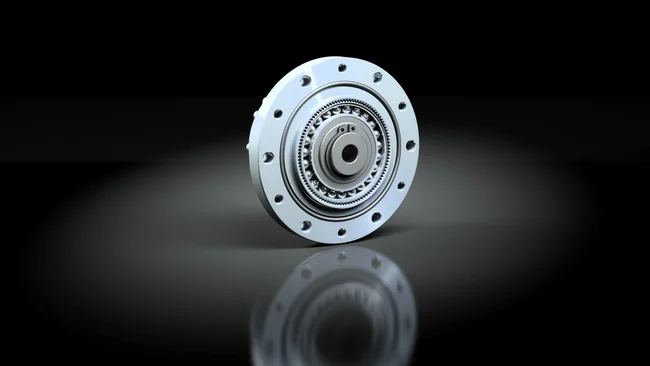

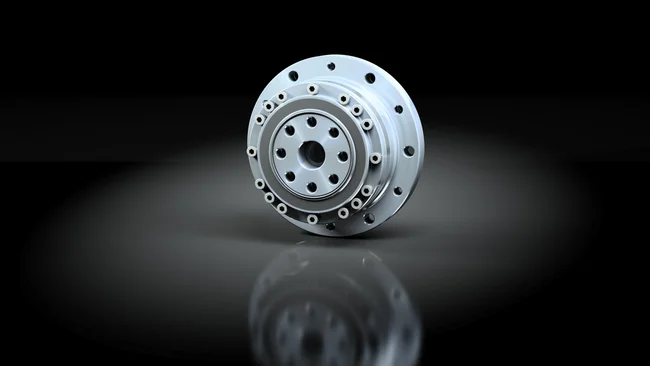

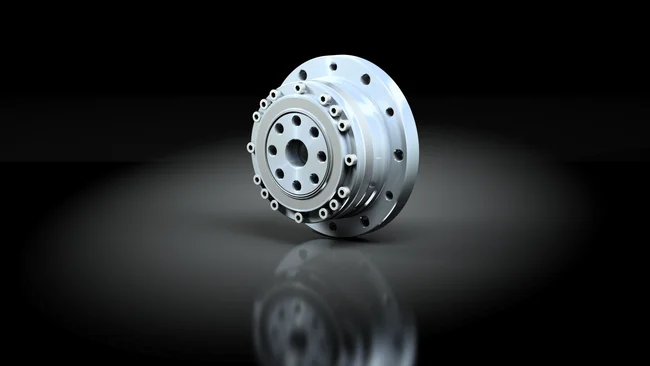

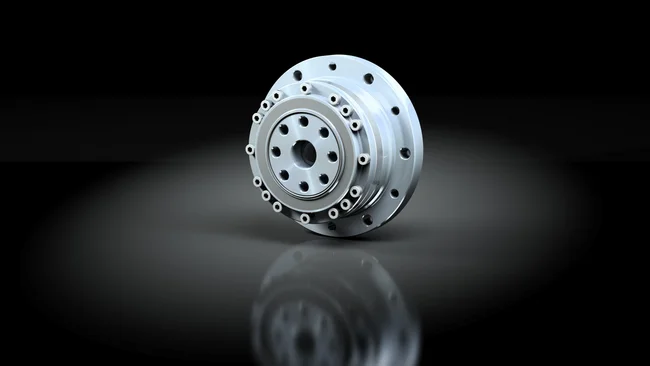

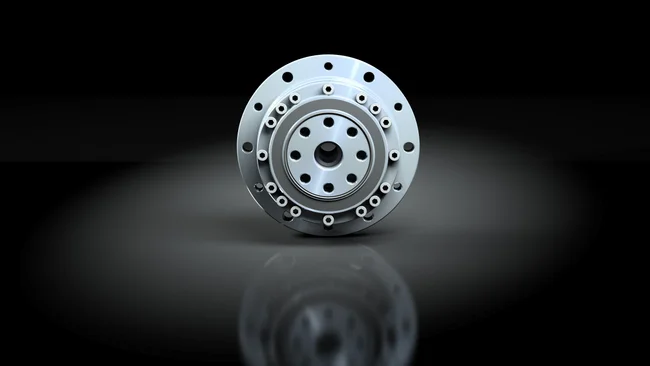

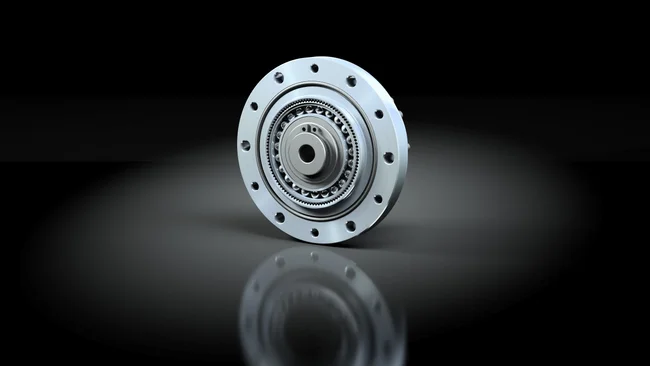

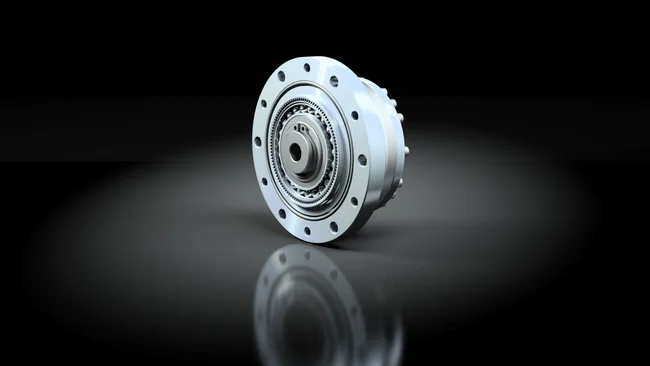

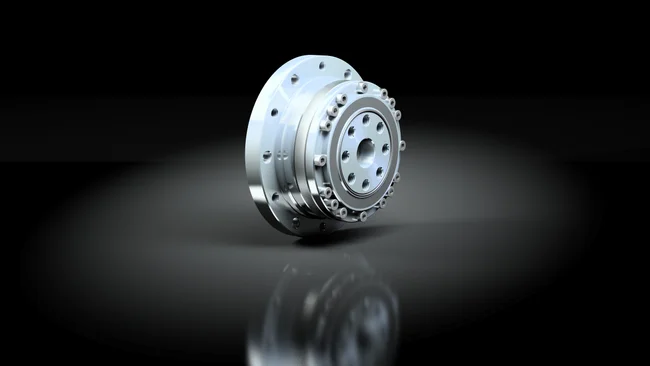

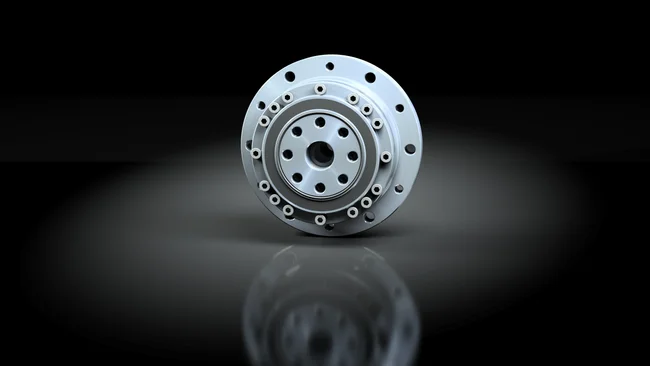

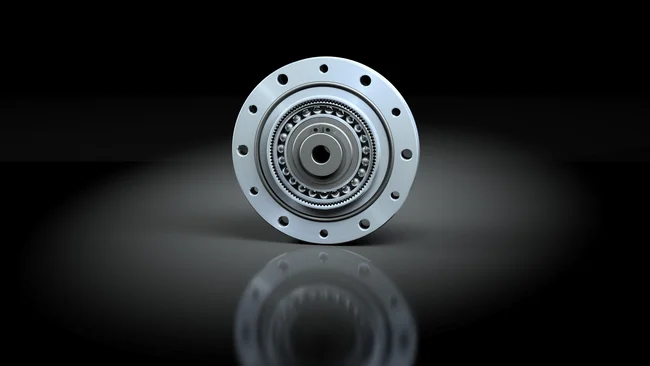

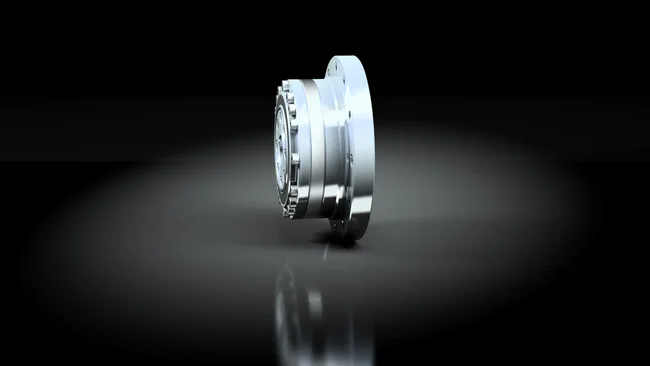

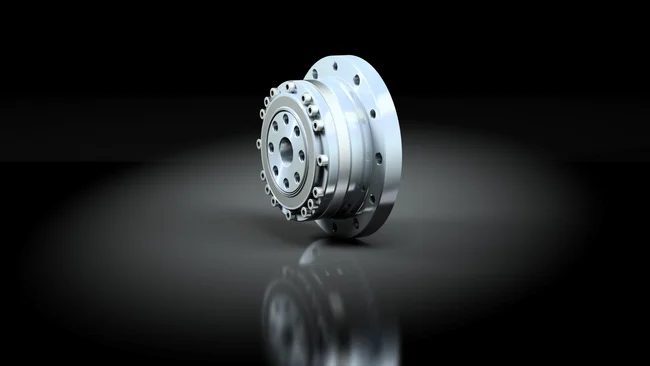

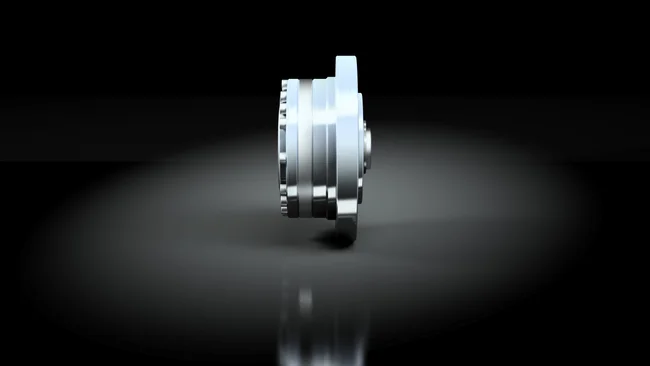

Click and drag for 360° view
Swipe

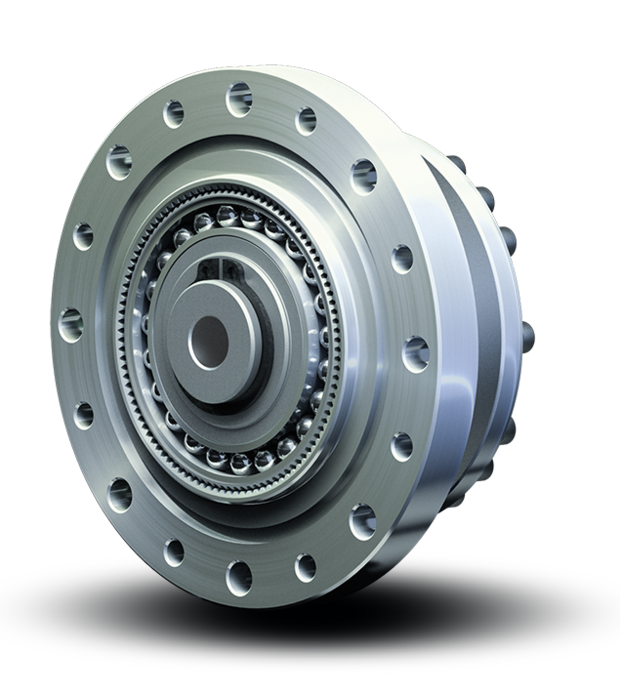

Gears with output bearing

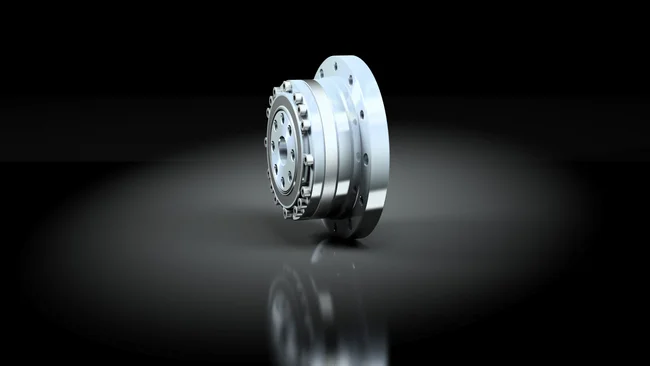

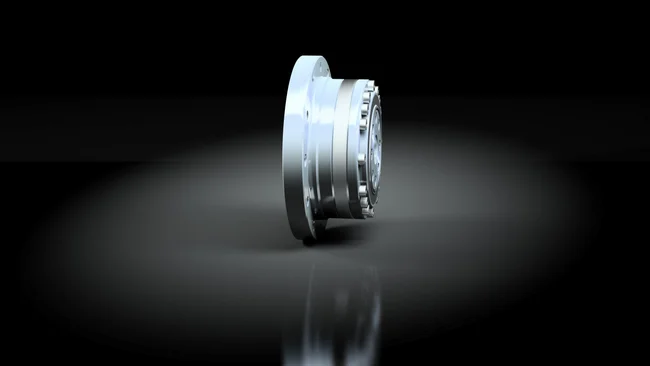

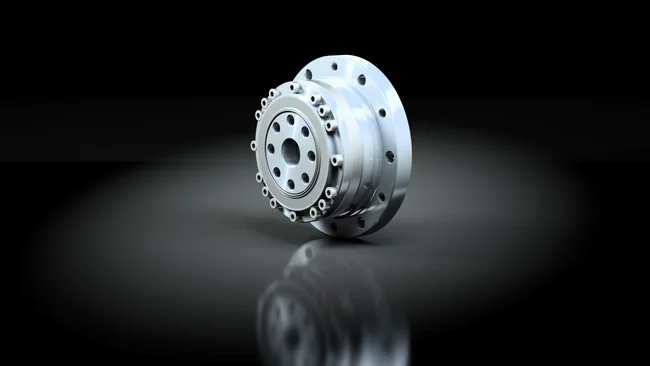

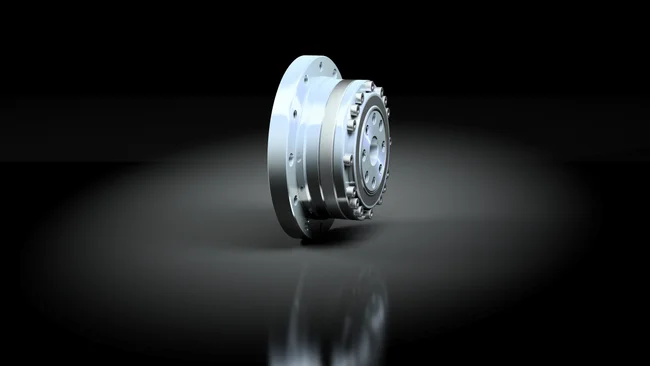

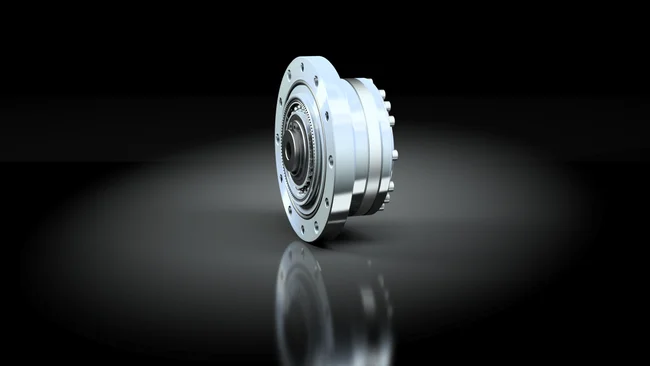

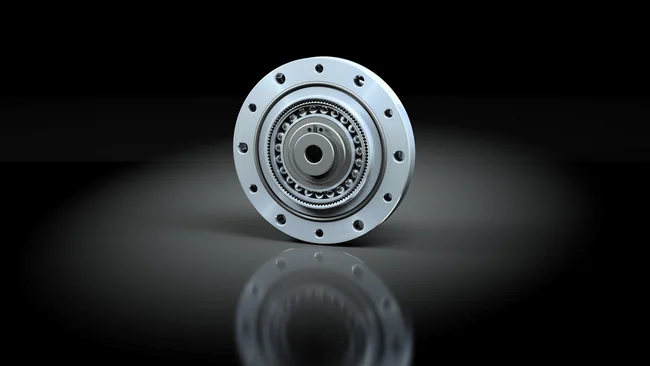

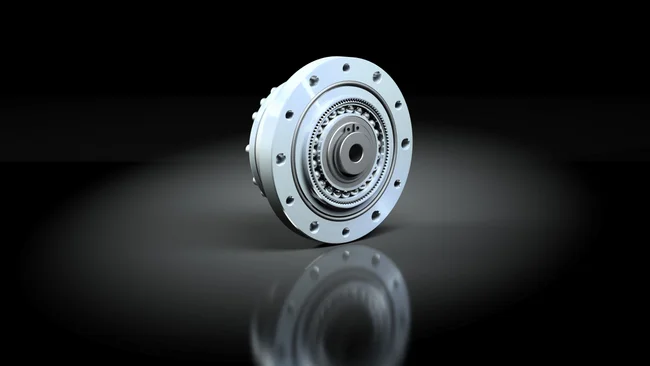

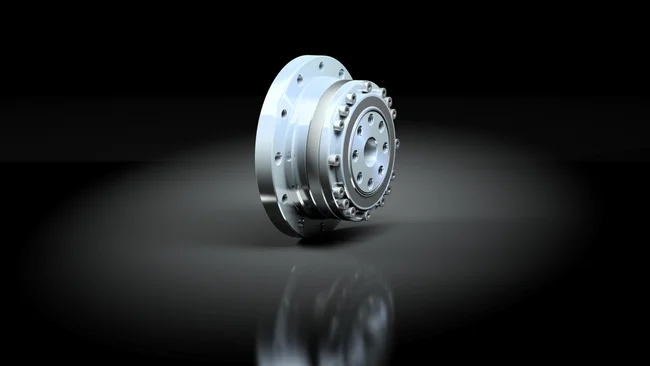

CobaltLine-2UH
Maximum torque capacity with extended temperature range
-
Maximum torque:
23 … 841 Nm -
Tilting moment:
41 … 450 Nm -
Sizes:
14 … 40 -
Ratio:
50 … 160 -
Ø Hollow shaft:
12 … 42 mm
Maximum torque capacity with extended temperature range
CobaltLine-2UH Gears with output bearing are available in six sizes with gear ratios of 50, 80, 100, 120 and 160:1 offering repeatable peak torques from 23 to 841 Nm.
Torque-enhanced unit with increased service life
The output bearing with high tilting capacity often allows direct attachment of heavy payloads without the need for further support, thereby providing simple and space saving design installations.
Extended temperature range
They cover a wide torque range and feature long service life. If required, the Gears with output bearing are available as specific configurations tailored to your application. Standard servo motors can be attached in a compact manner. The CobaltLine Series can be used for ambient temperatures between -40 °C and 90 °C.
Applications
- Industrial robots
- Humanoid robots
- Clamping and gripping
- Plastic and woodworking machines
