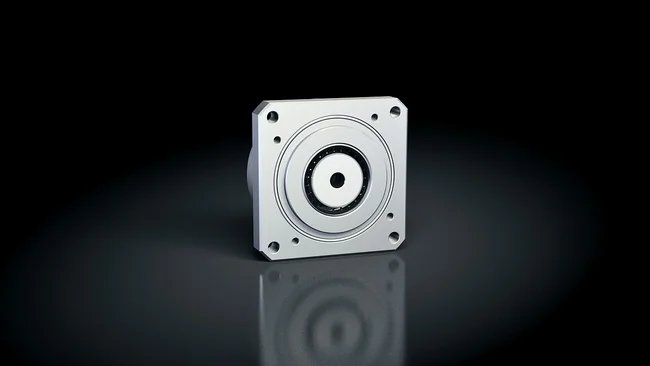

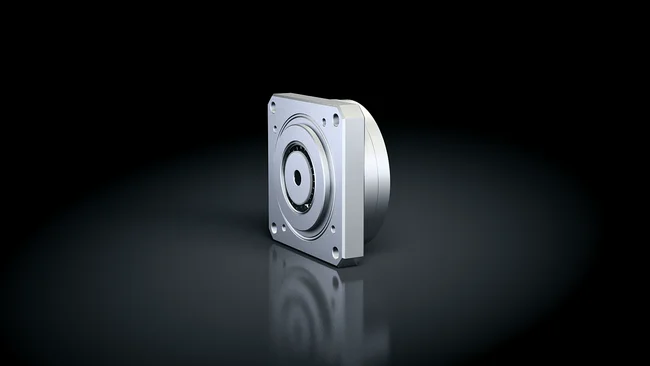

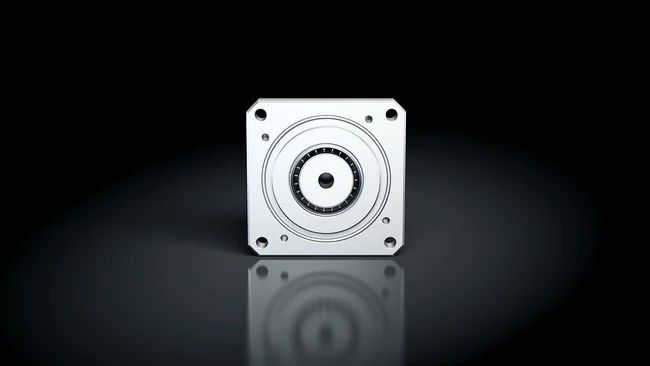

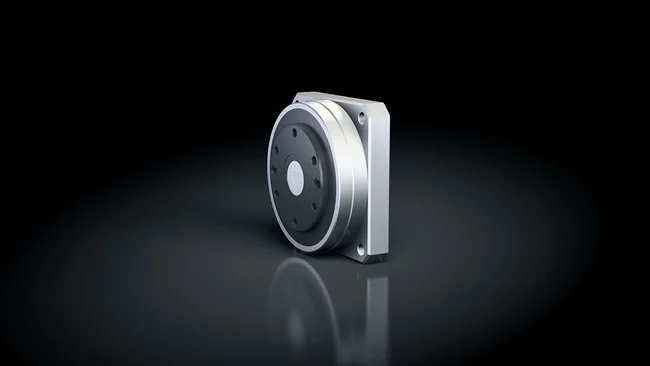

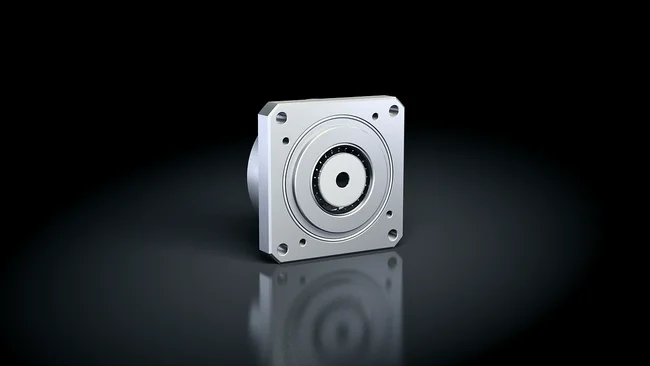

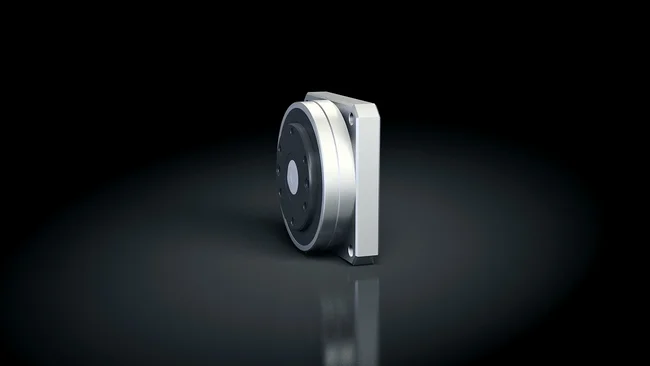

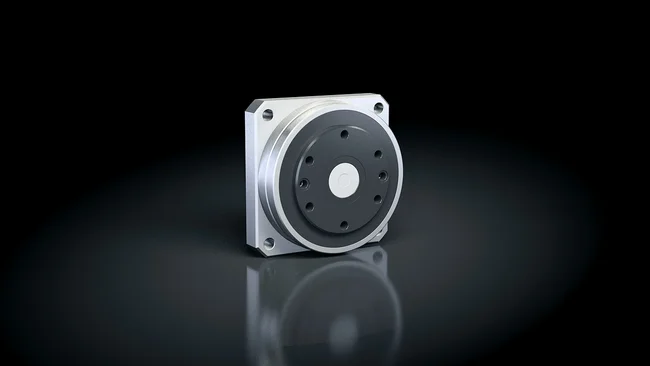

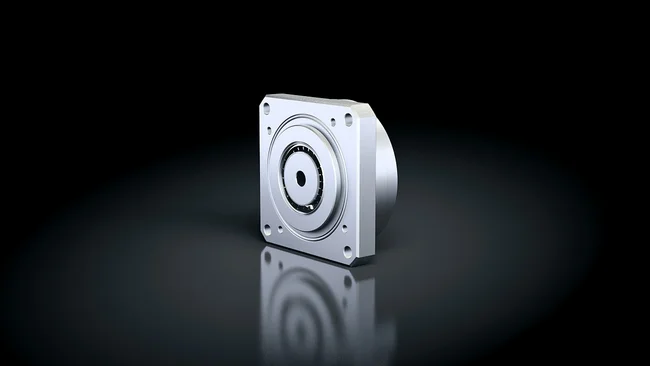

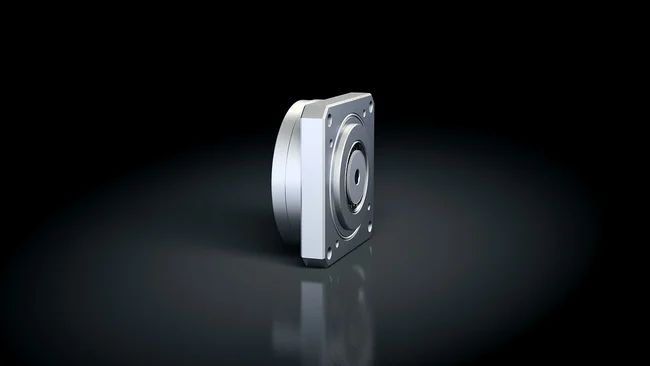

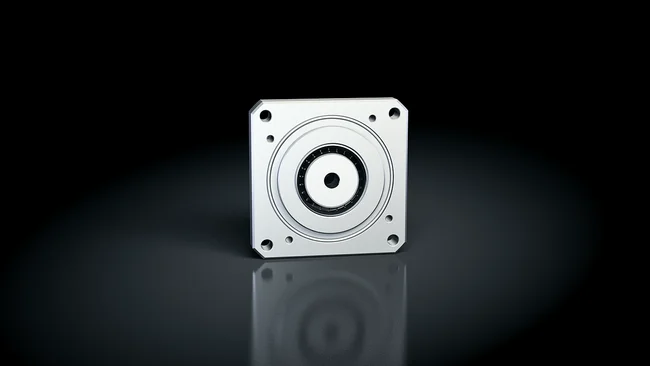

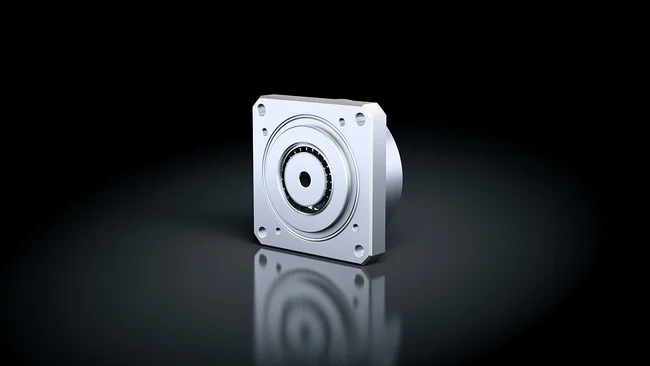

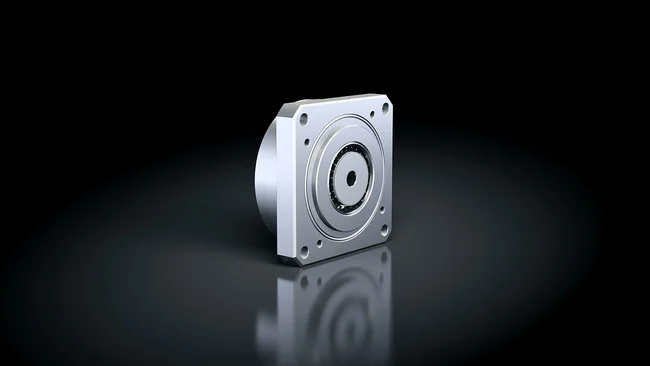

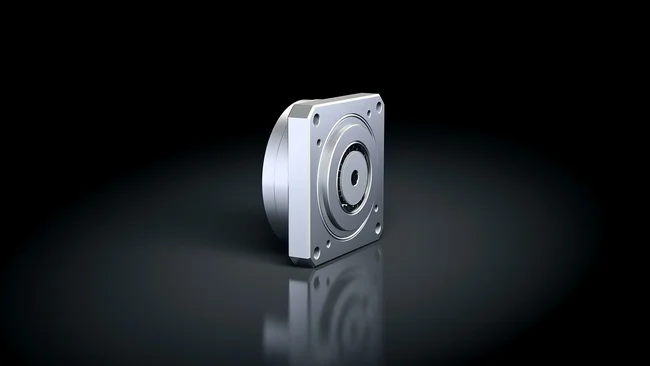

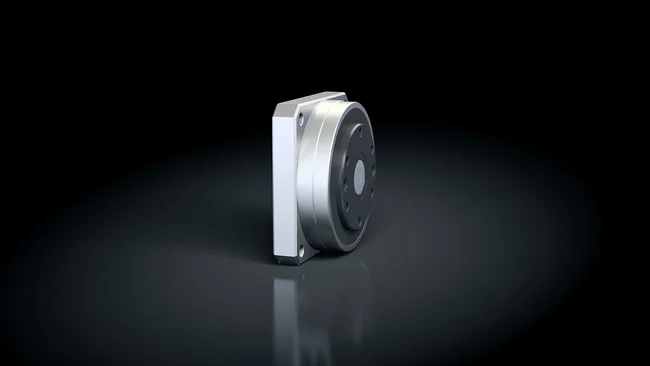

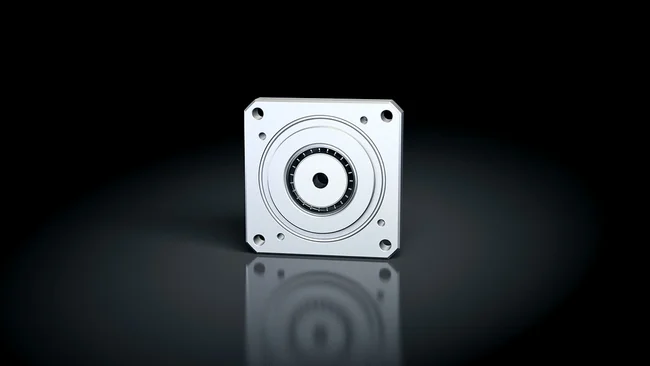

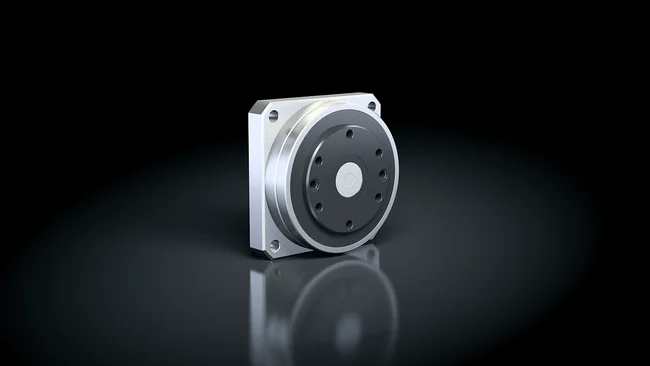

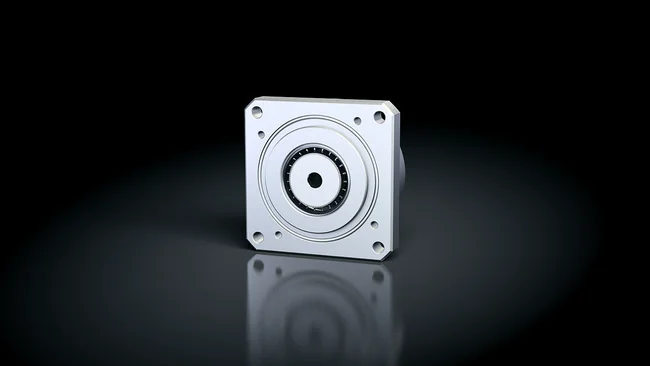

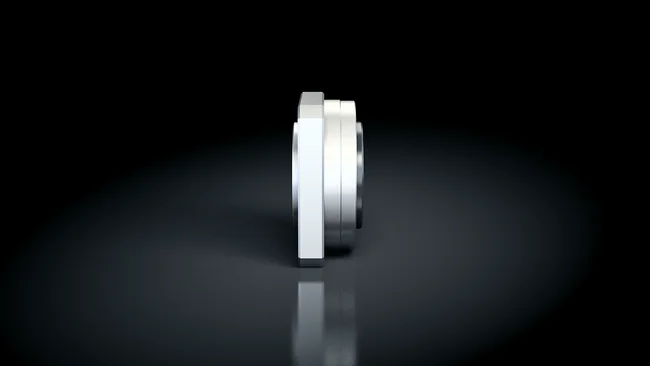

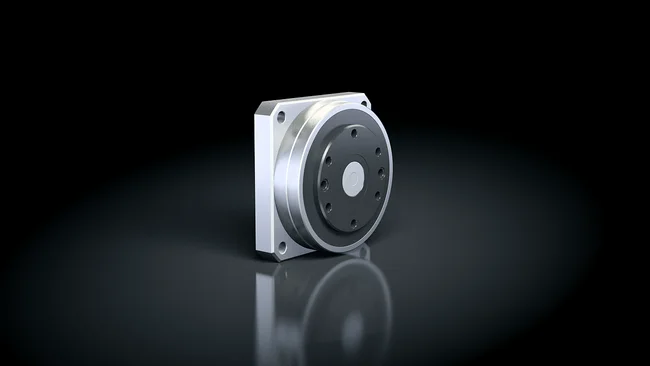

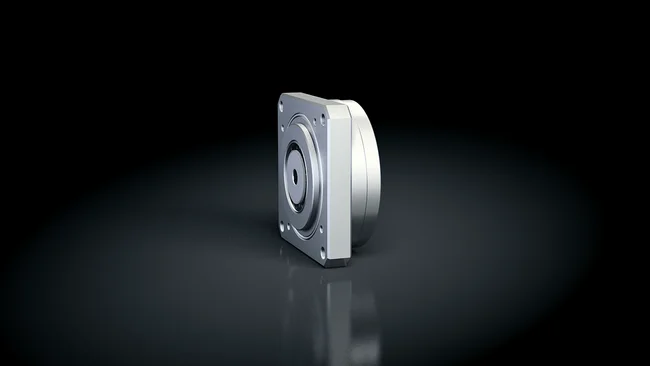

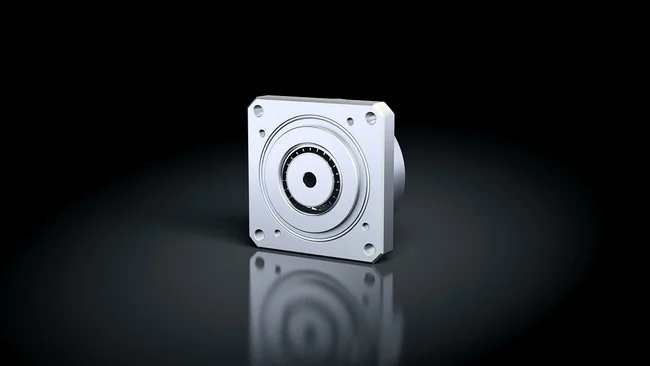

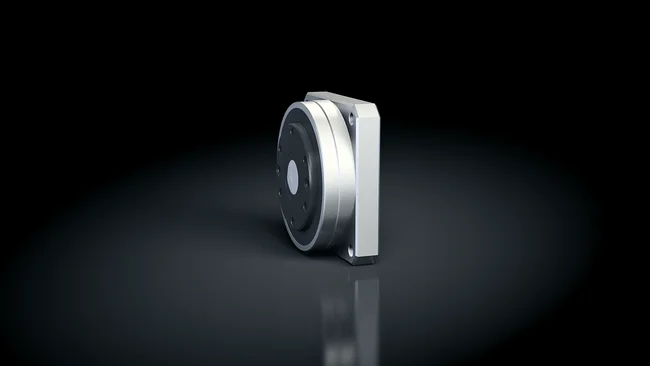

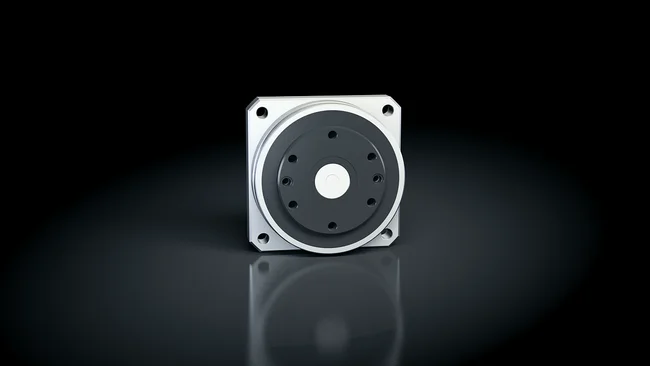

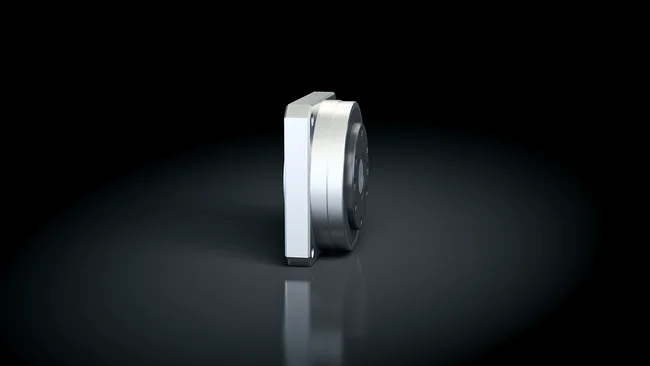

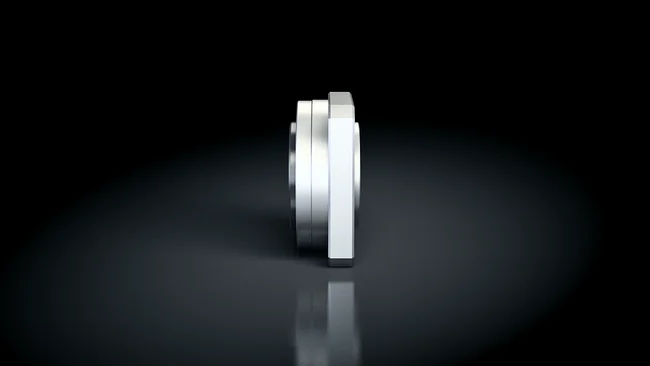

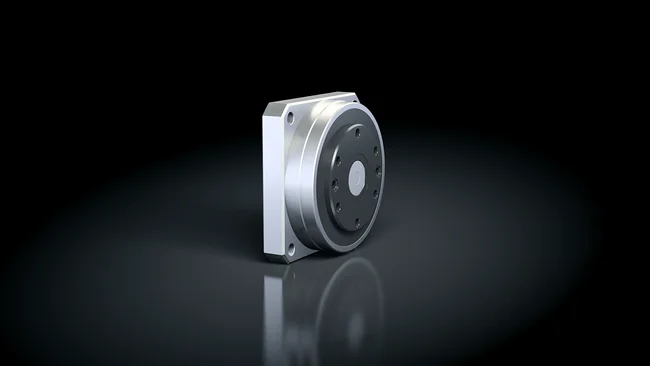

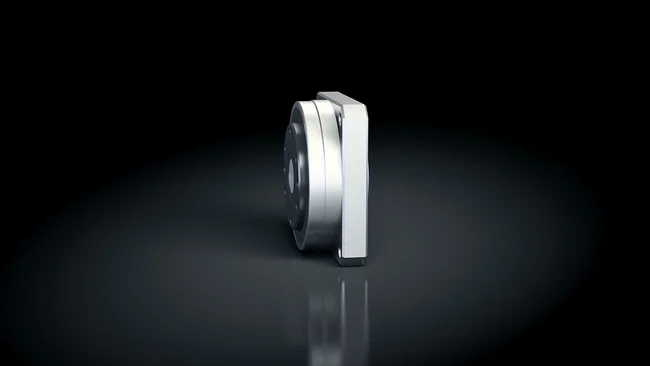

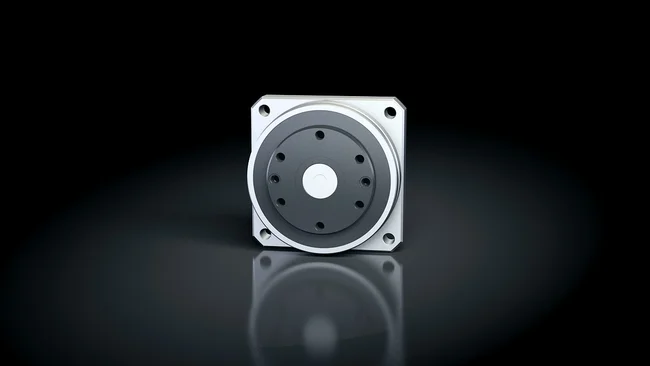

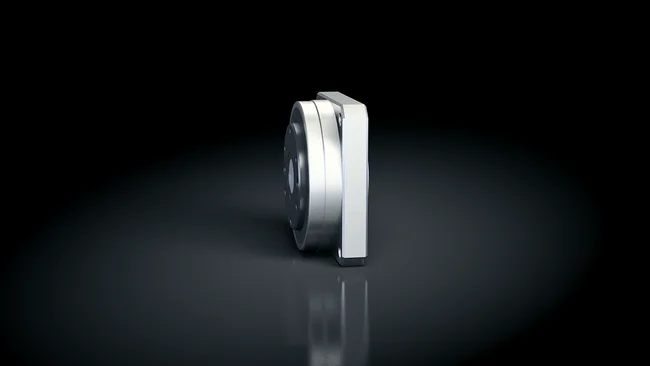

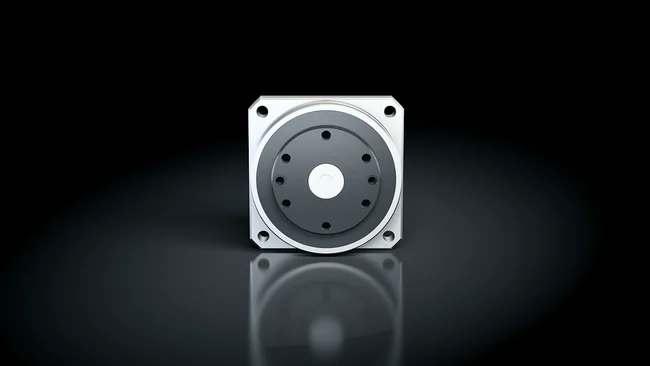

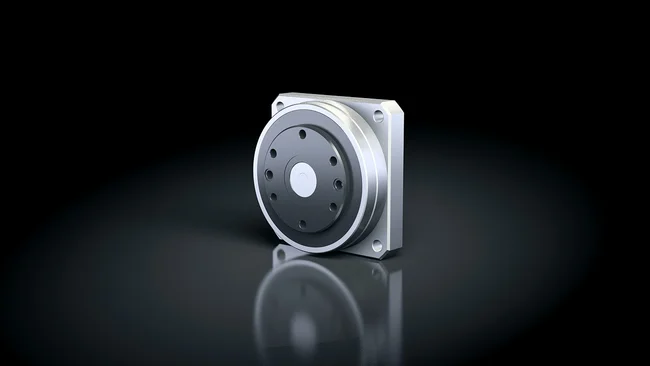

Click and drag for 360° view Swipe

Gears with output bearing

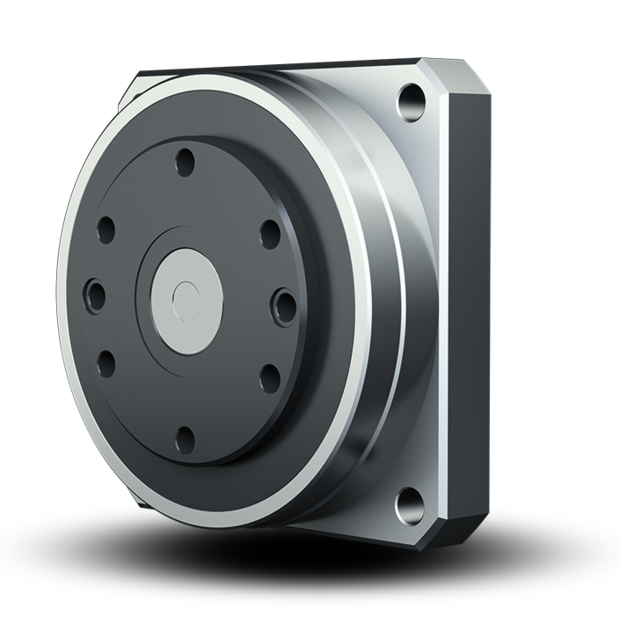

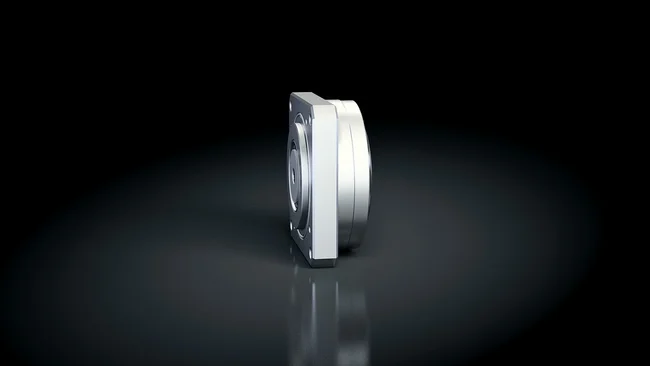

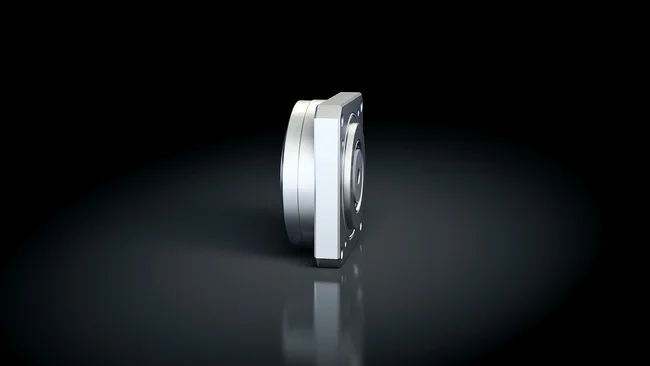

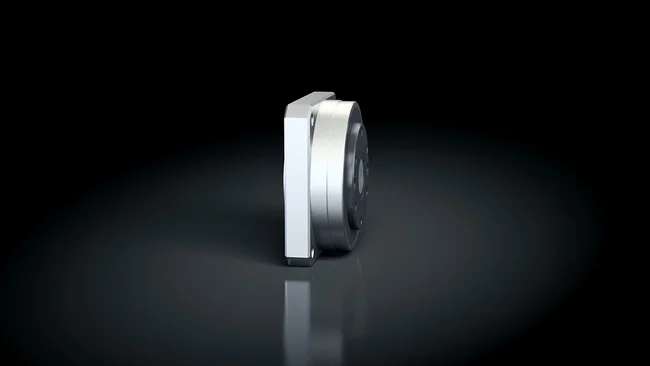

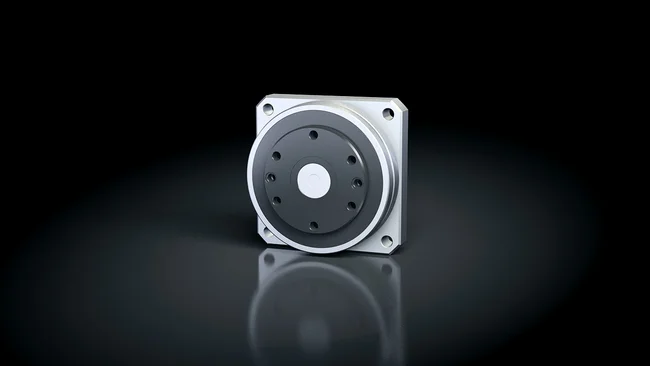

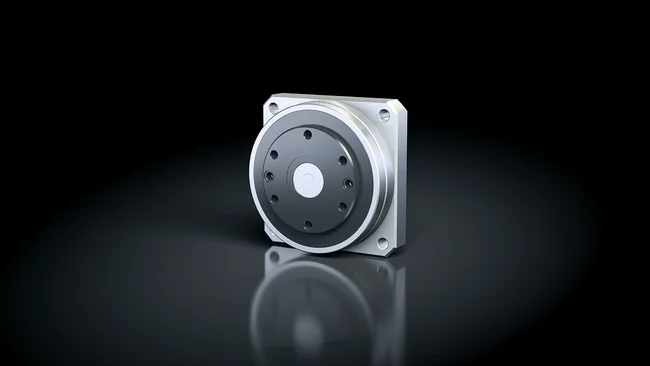

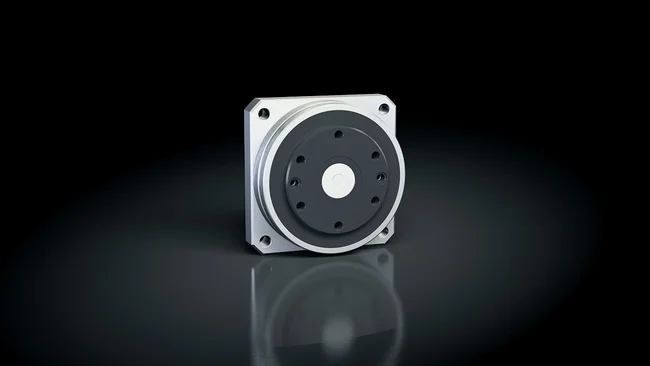

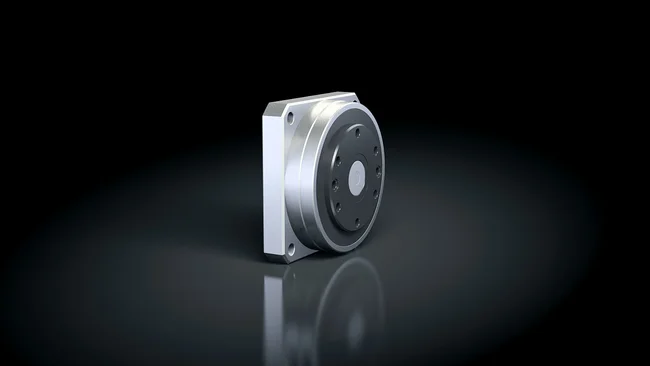

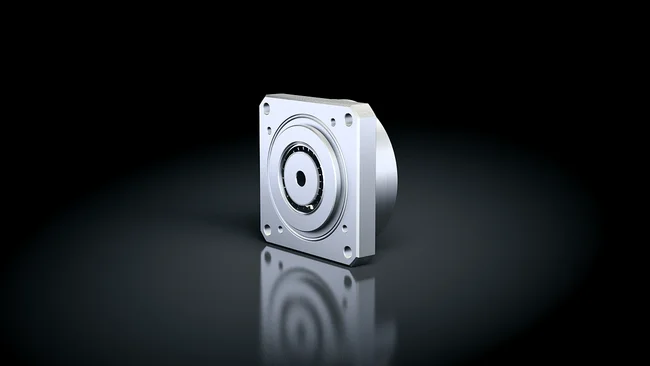

CSF-2UP

Short gear for direct motor mount with tilt resistant output bearing

  • Maximum torque:
    1.8 … 28 Nm
  • Tilting moment:
    15 … 75 Nm
  • Ratio:
    30 … 100
  • Sizes:
    8 … 14
  • Ø Hollow shaft:
    -
Downloads

Precision gears for low torques



The CSF-2UP Series Gears consist of an HFUC Gear Component Set and a tilt resistant output bearing. They are suitable for direct motor mounting in precision applications with low torque requirements.





Branches

Harmonic Drive SE products stand for precision, reliability, and maximum performance. They are used in a wide variety of applications—anywhere where precise movements, compact designs, and durable drive solutions are required.

Aviation & Space

Highly reliable, lightweight drive systems for aircraft and satellites – maintenance free for decades in extreme environments.

Learn more

01

Robotics, Handling & Automation

Precise, safe movements in collaborative and industrial robots – Harmonic Drive® products control every axis for maximum efficiency and flexibility.

Learn more

02

Applications

Applications

  • Coordinate measuring machines
  • Optical measuring machine
  • Delta robot
  • Camera positioning
  • Wafer inspection machines
