Gears with output bearing

CSG-CP-M/H/S

Highest torque capacity and reinforced output bearing

Maximum torque:

9 … 1840 Nm
Tilting moment:

73 … 2222 Nm
Sizes:

14 … 58
Ratio:

30 … 160
Ø Hollow shaft:

14 … 70 mm

Highest torque capacity and reinforced output bearing

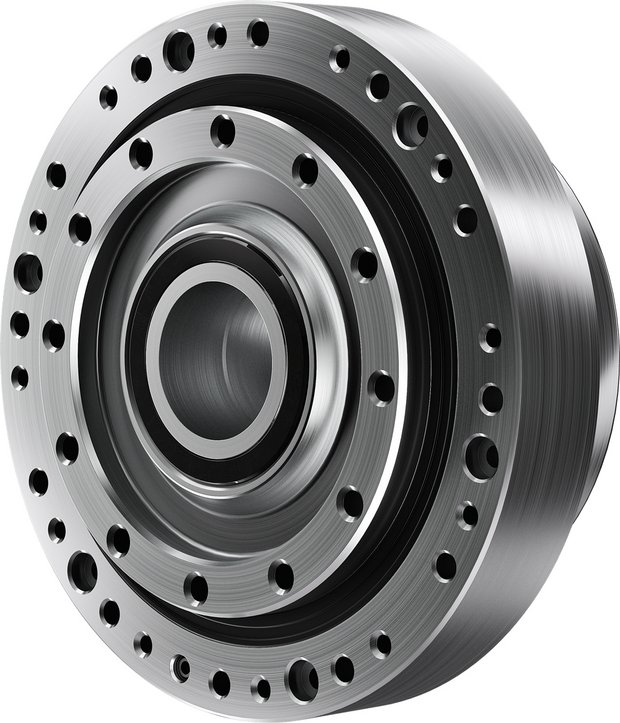

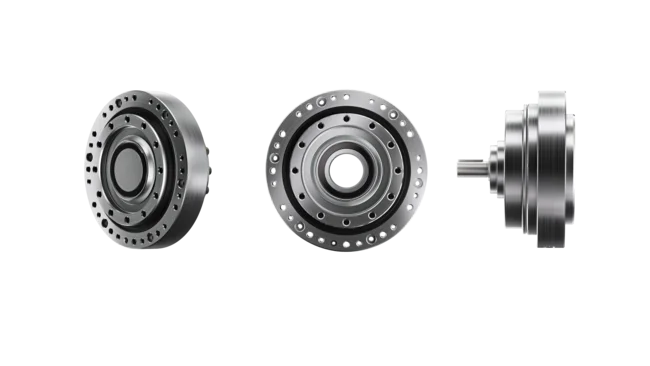

The CSG-CPM/H/S Series gears with output bearing consist of a precise CSG-2A Gear Component Set and a tilt resistant output bearing. They are available as motor mounted gear, with hollow shaft or with input shaft.

Harmonic Drive® Triangle Technology

In addition to the proven strain wave gear technology, CSG-CP Series is also available in Triangle Technology. Setting new standards in torsional stiffness, transmission accuracy and dynamics.

Strain Wave Gear Technology Triangle Technology

Features:

Highest torque capacity
Outstanding, lifetime precision and zero backlash
Longest lifetime
Three versions for different mounting situations
Large torque range
Integrated tilt resistant cross roller bearing

Show more Show less
