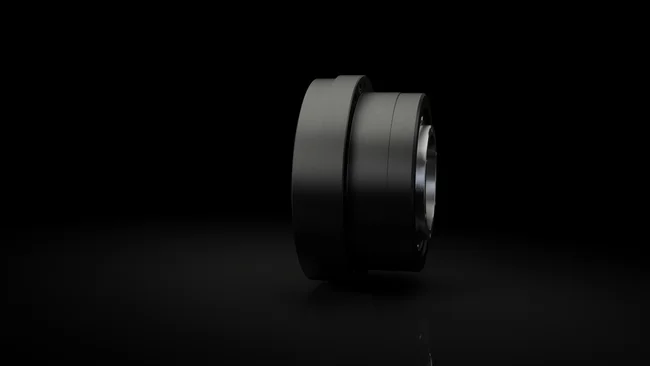

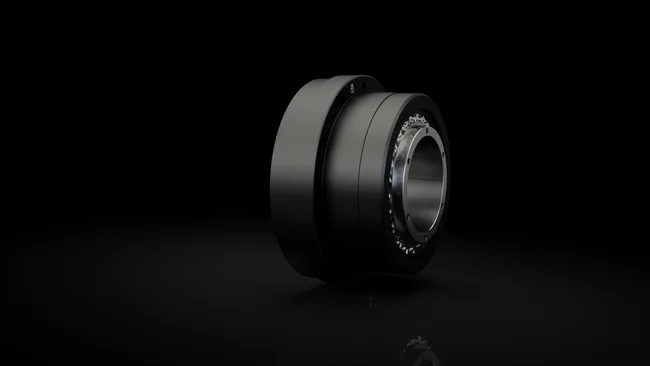

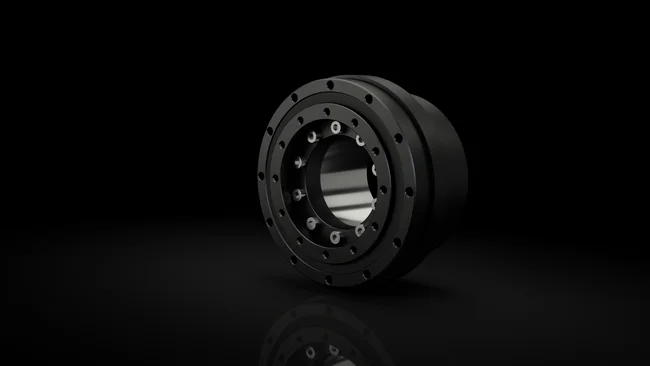

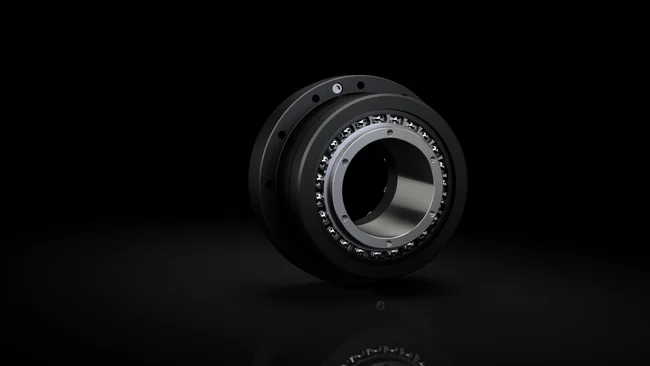

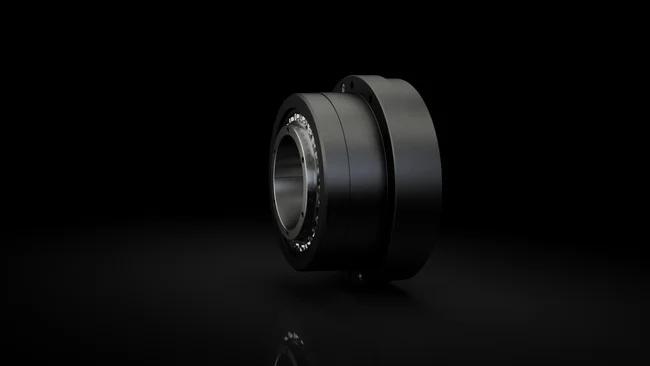

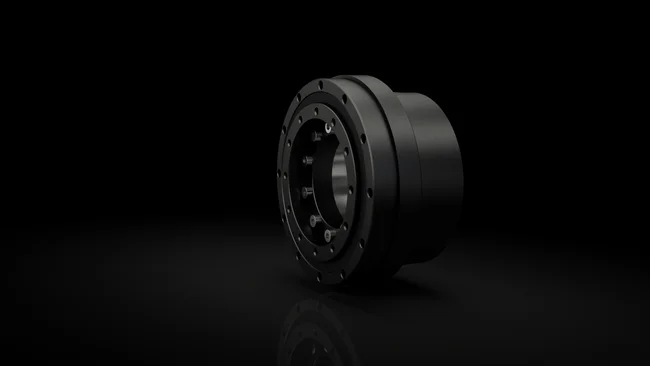

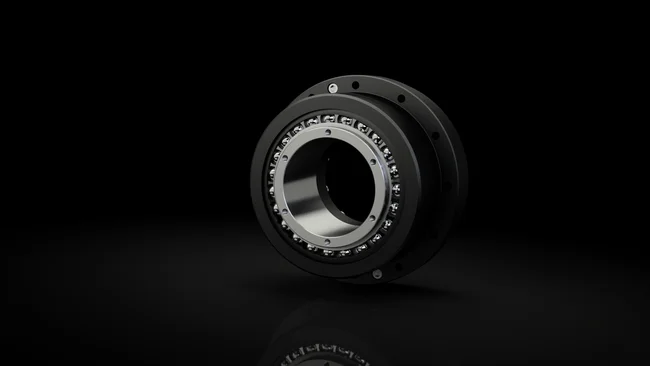

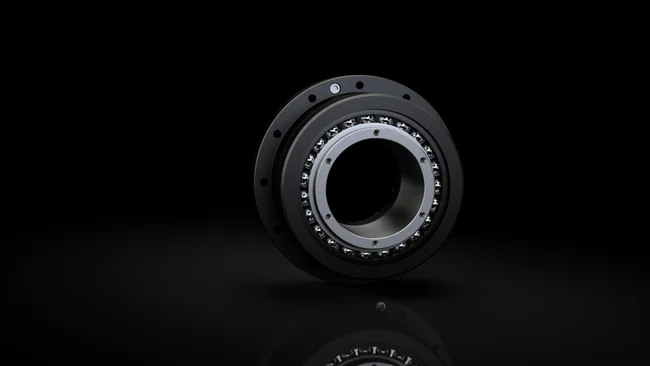

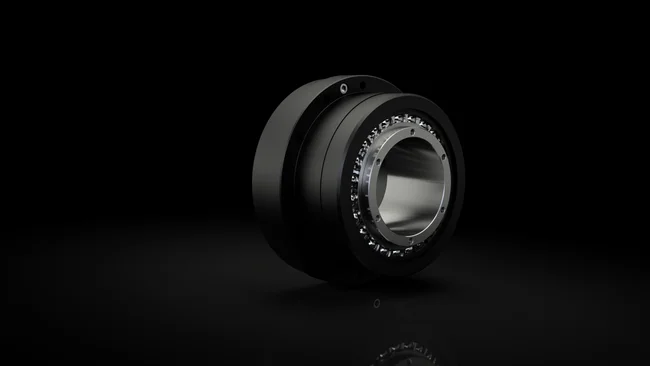

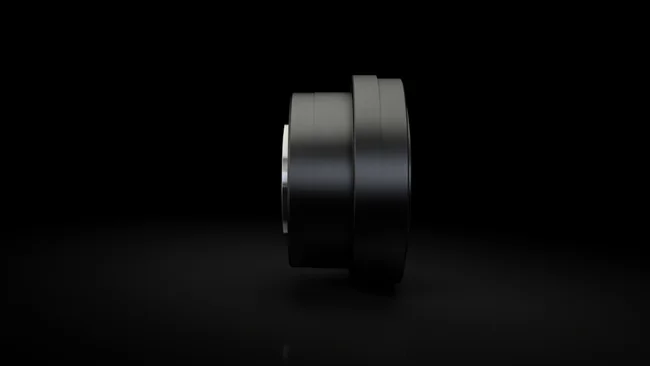

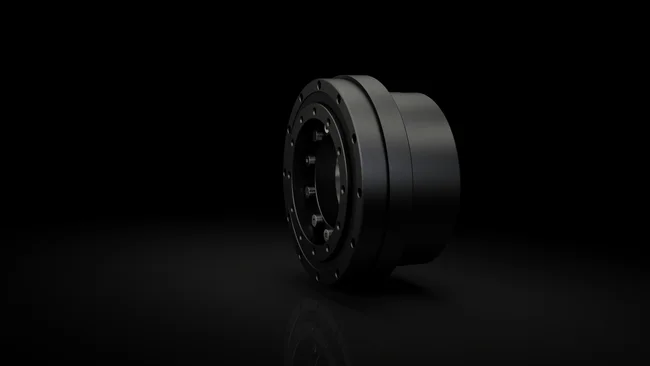

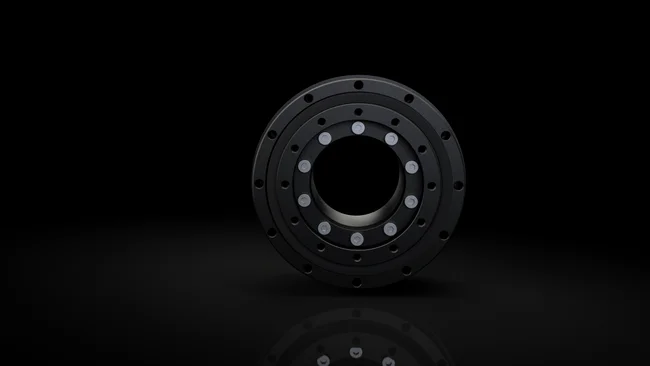

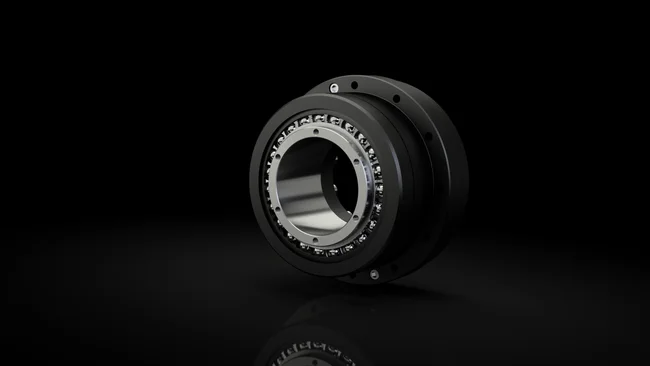

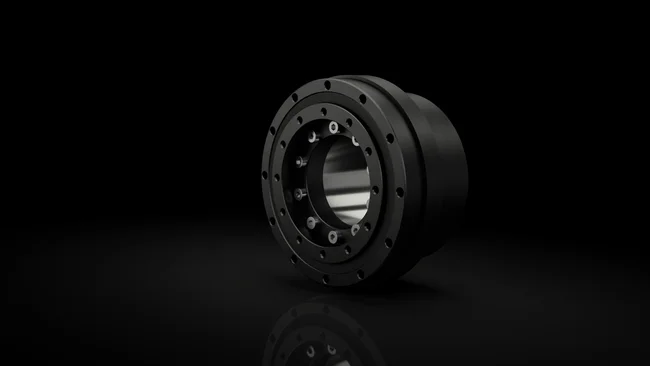

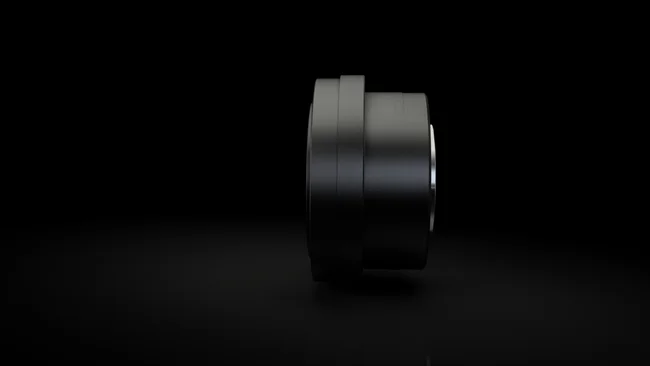

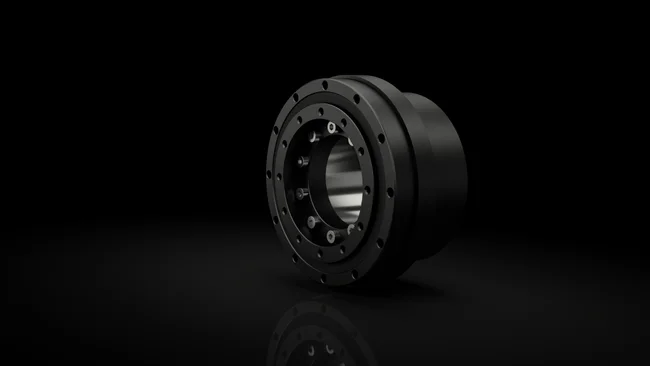

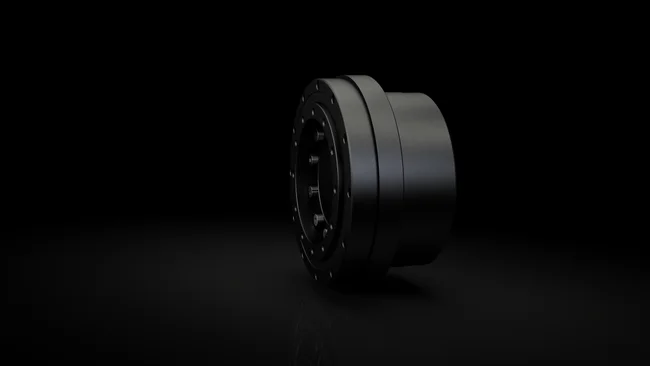

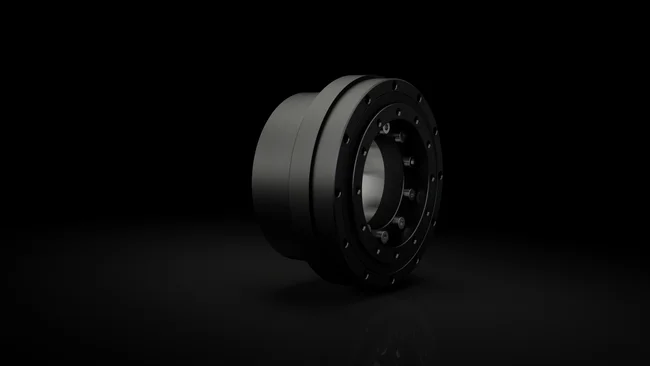

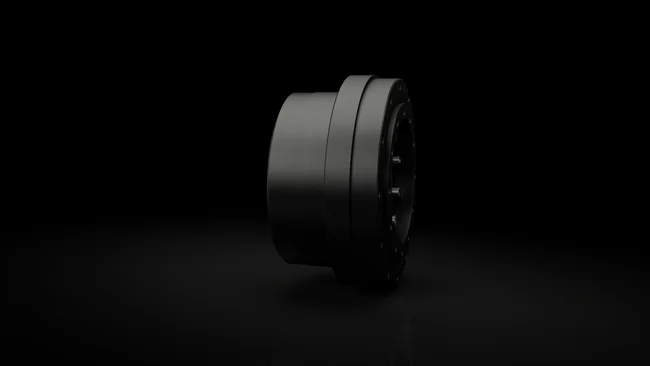

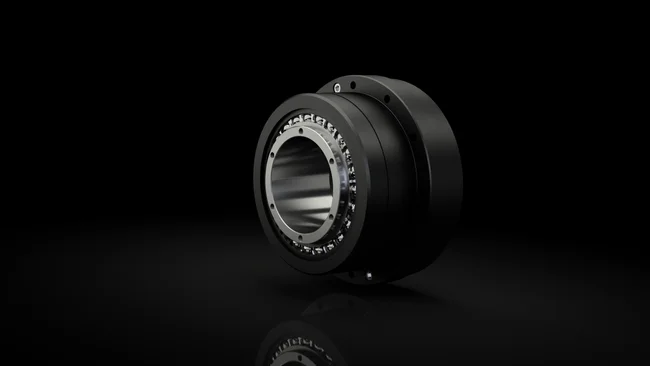

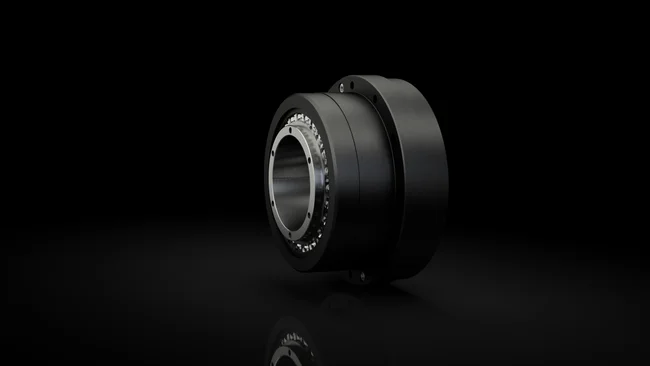

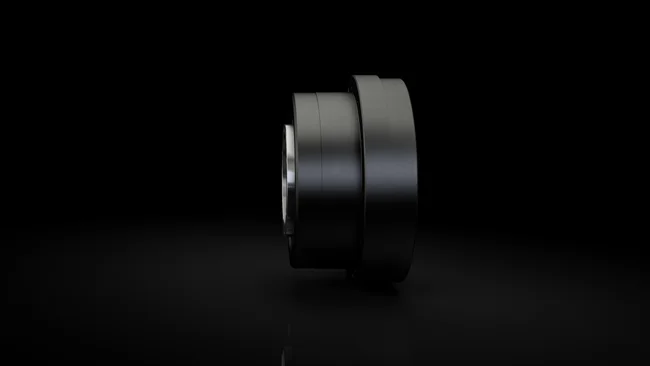

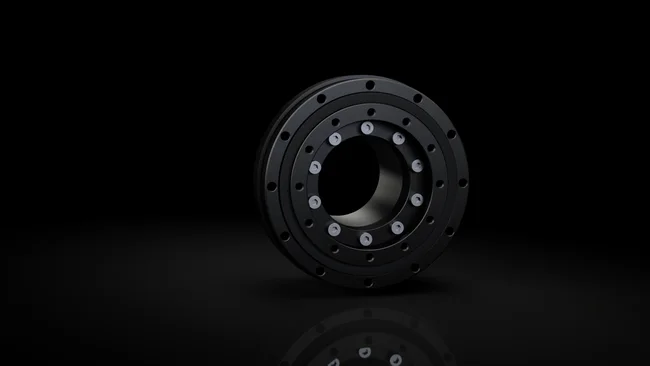

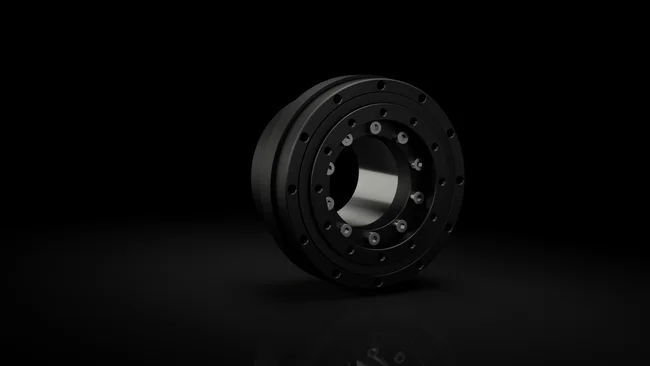

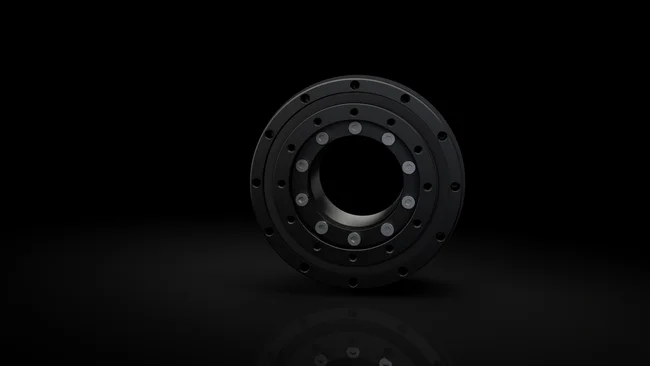

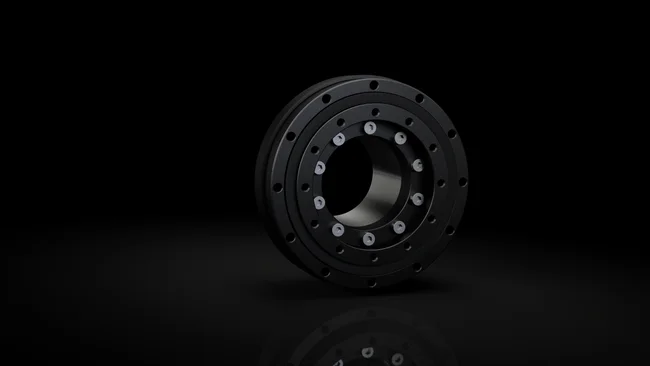

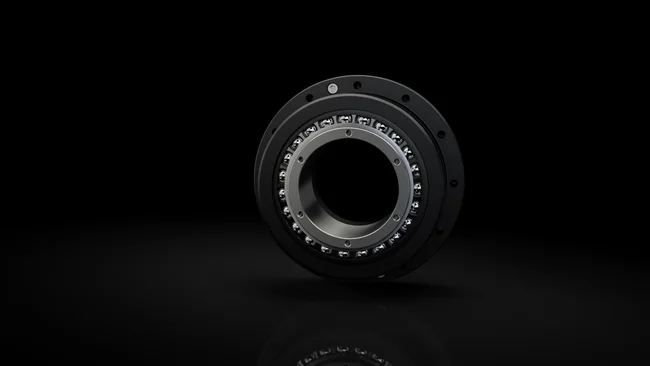

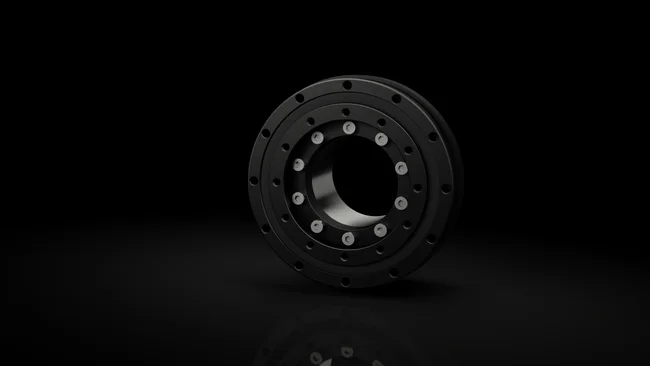

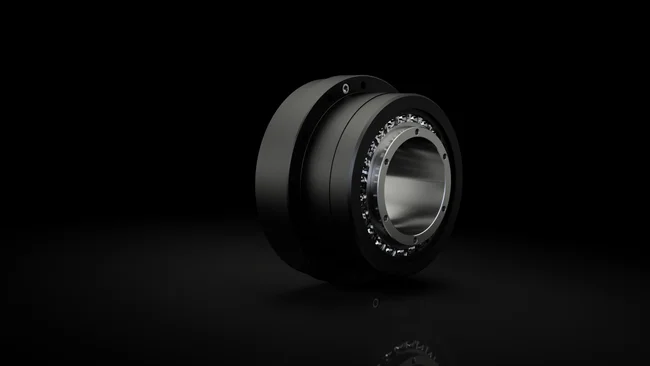

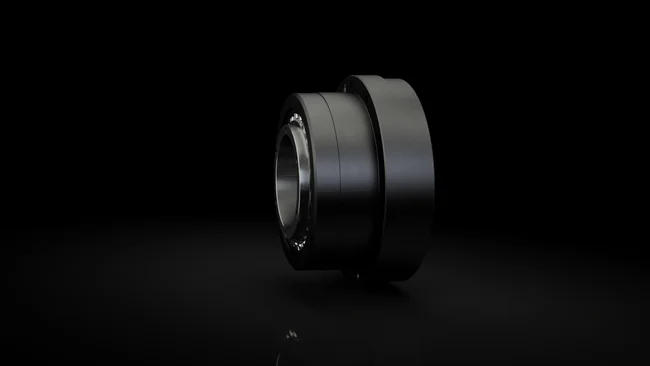

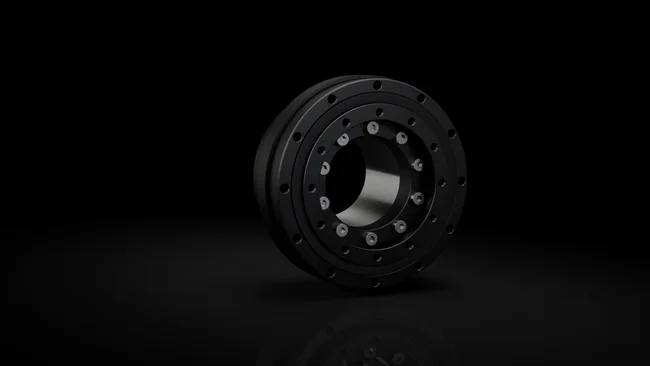

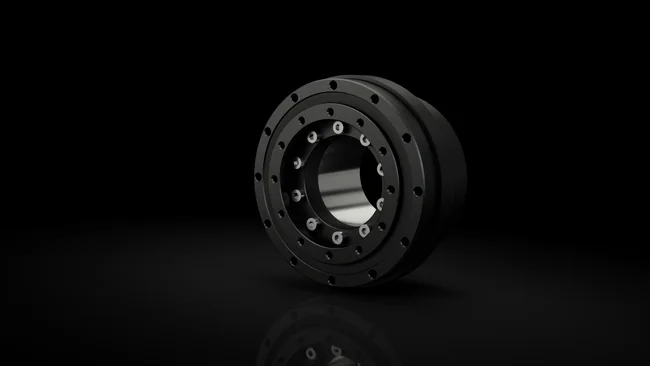

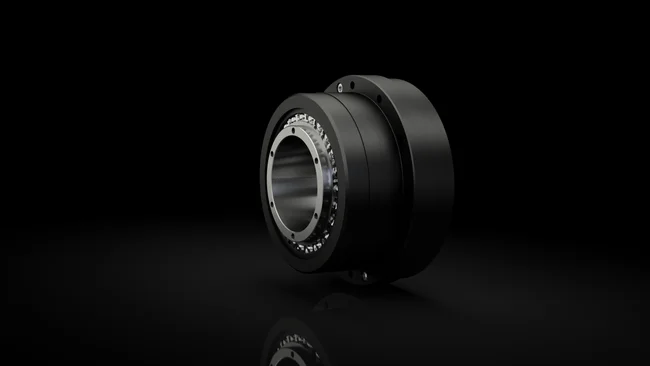

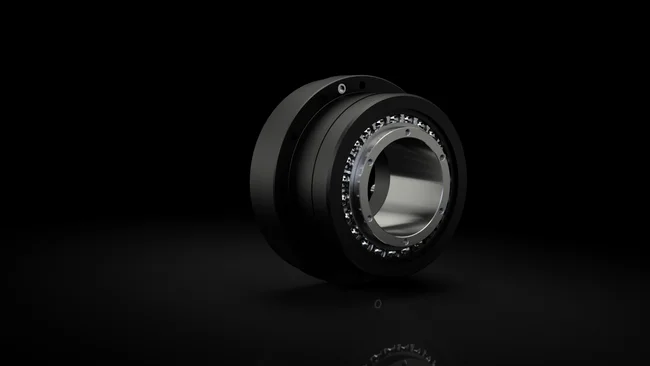

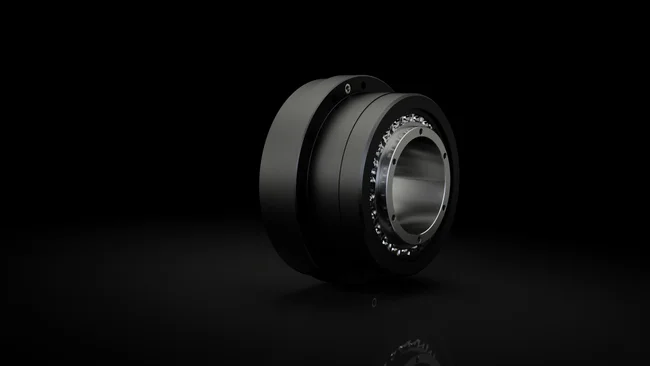

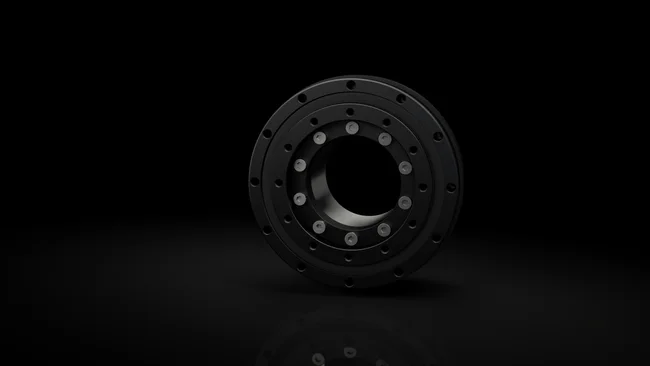

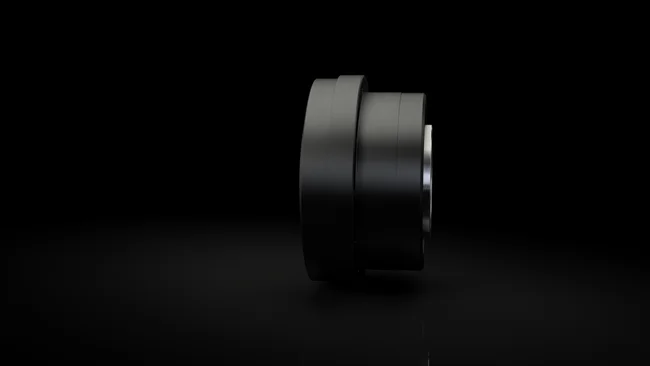

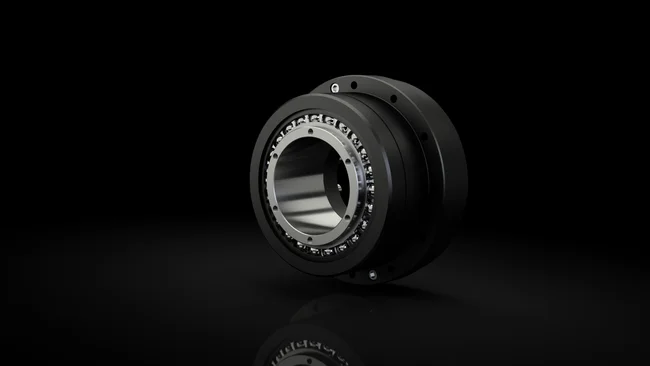

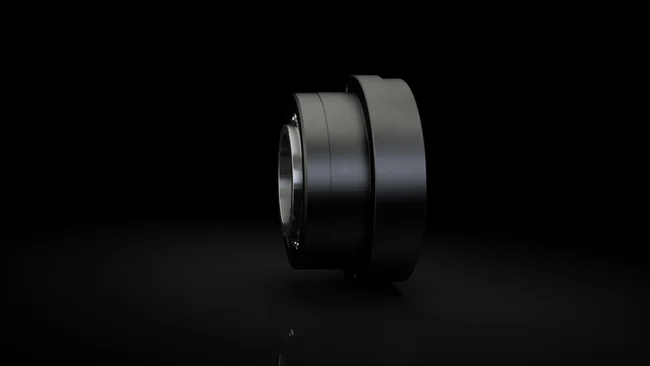

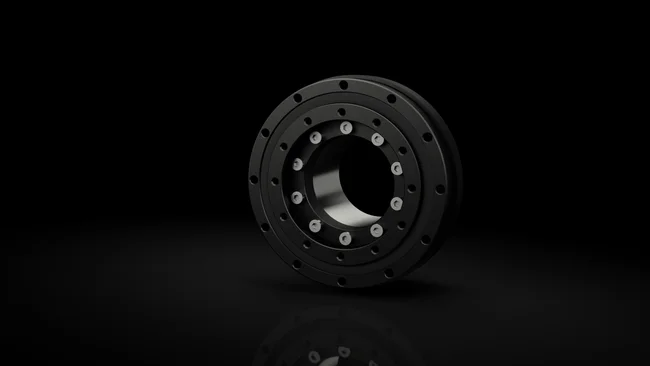

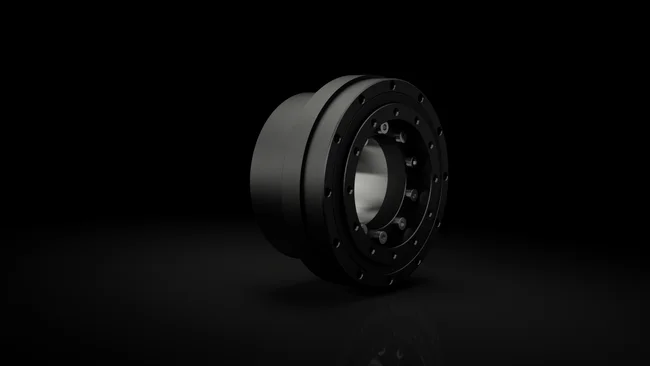

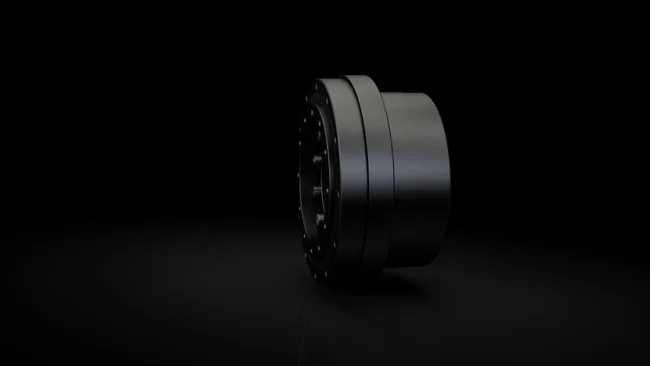

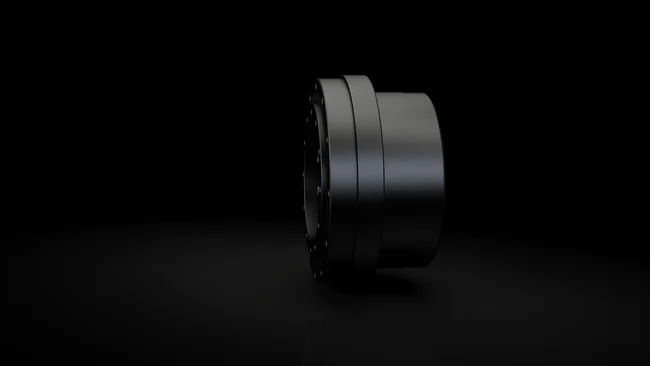

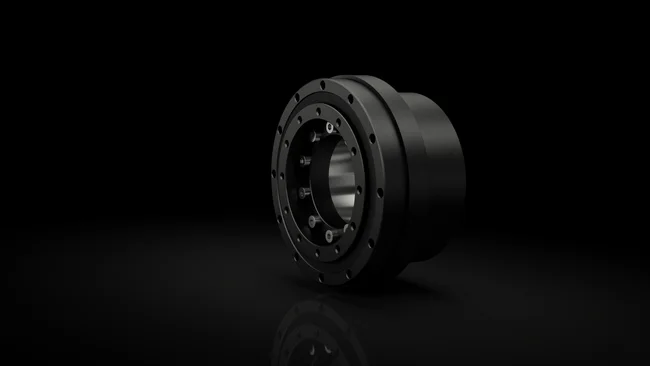

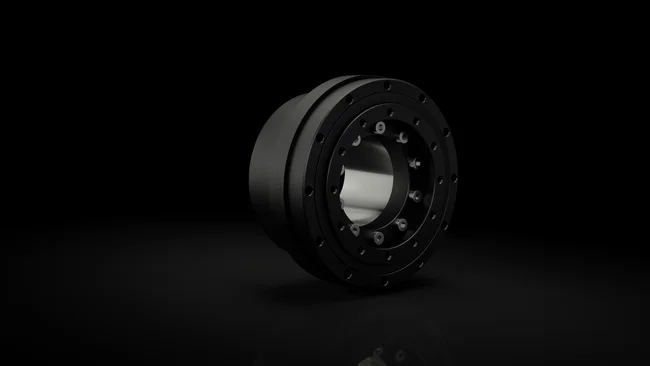

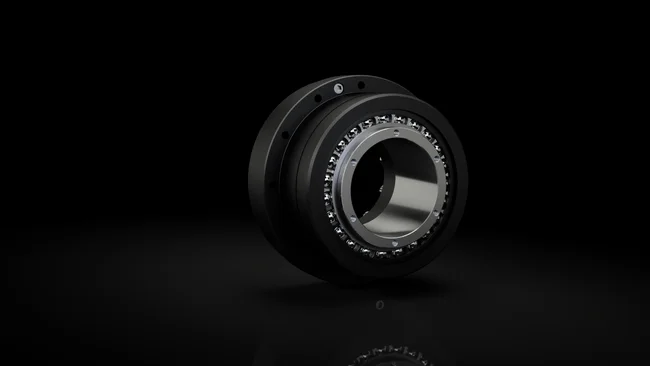

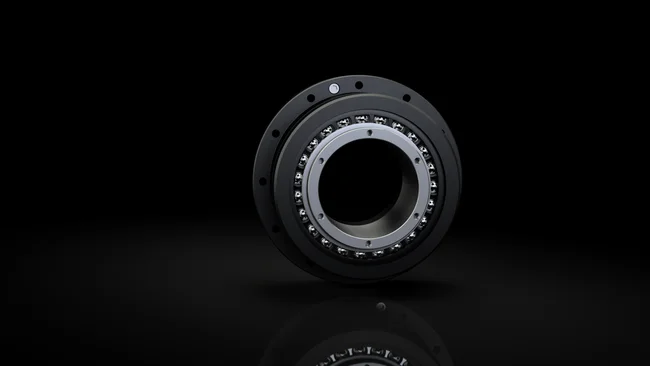

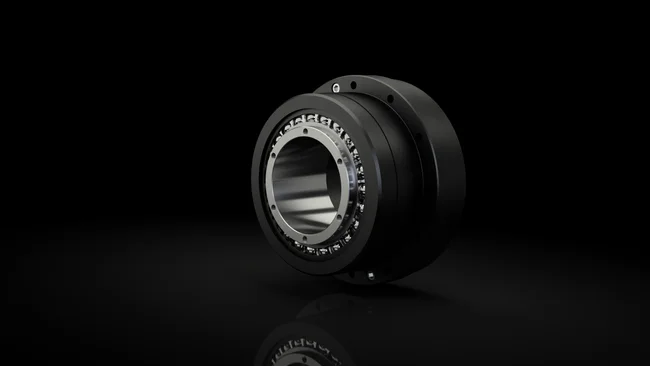

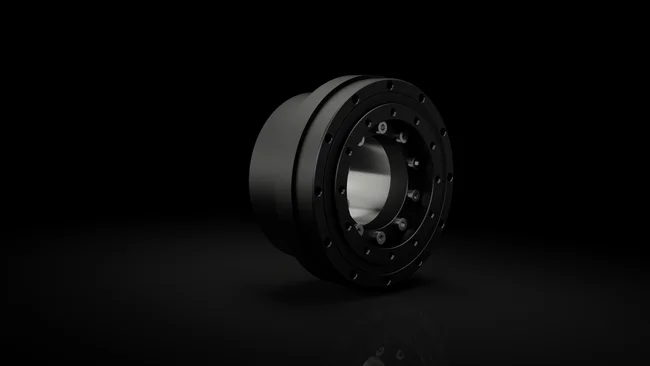

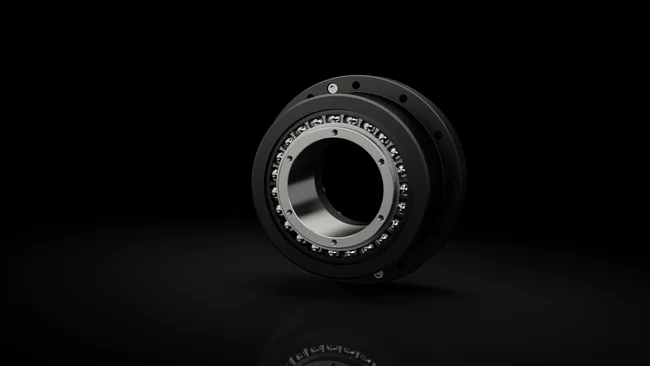

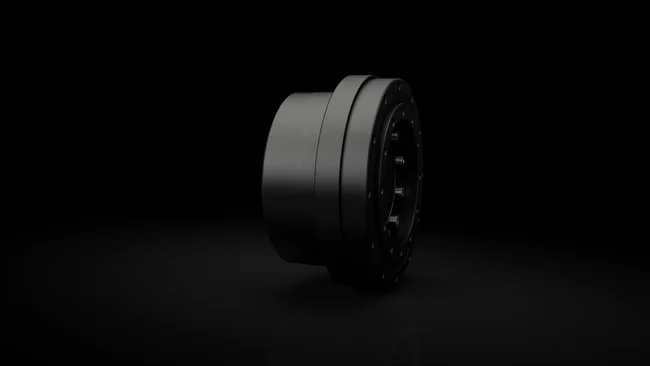

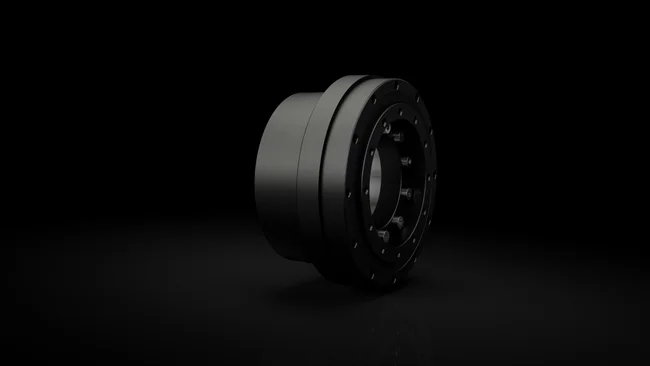

FBS-2UH

Largest hollow shaft with smallest outer diameter

Maximum torque:

25 … 106 Nm
Tilting moment:

93 … 129 Nm
Sizes:

25 32
Ratio:

30 … 100
Ø Hollow shaft:

41 … 55.1 mm

Downloads

Largest hollow shaft with smallest outer diameter

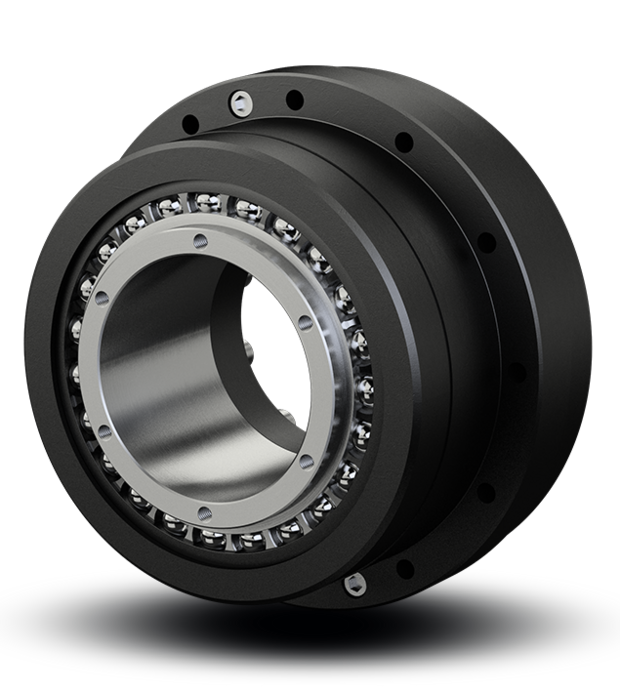

The gears with output bearing of the FBS-2UH Series are characterised by the largest hollow shaft with a small outer diameter at the same time. The large hollow shaft is the ideal solution for robots and machine tools that require a central cable feed through the rotary axis. By avoiding cable loops, the machine design can therefore be simplified. Based on the new gear technology of the gear component set of the FBS Series, an increased torque, a high torsional stiffness as well as an extended service life are achieved.

Show more Show less
