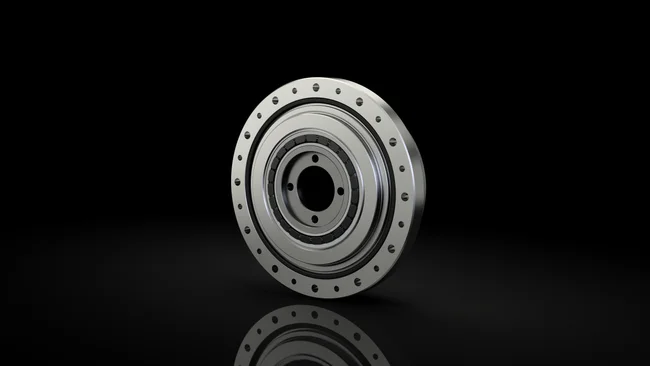

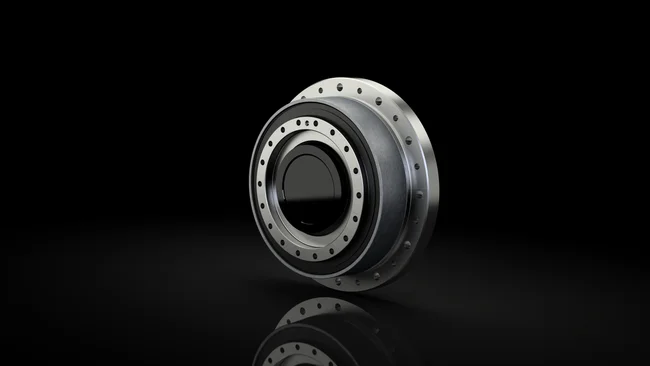

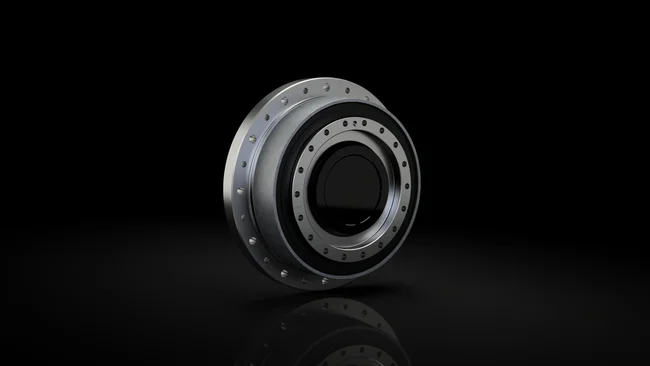

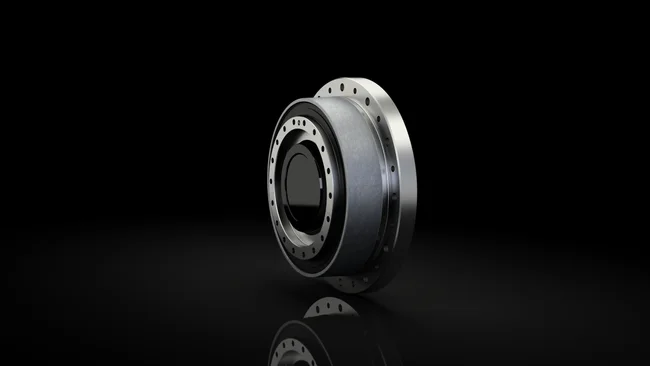

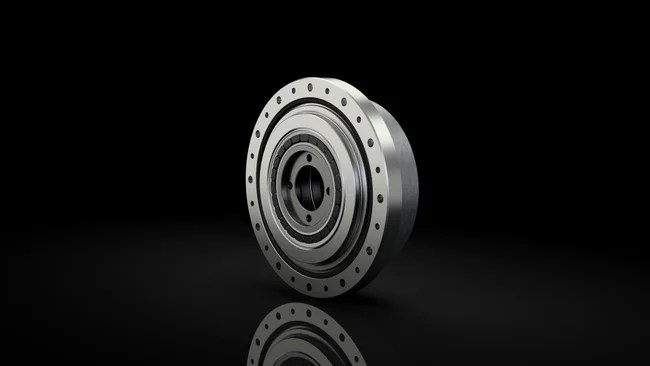

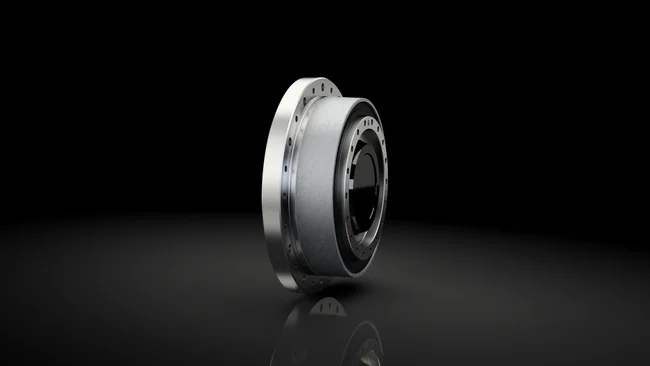

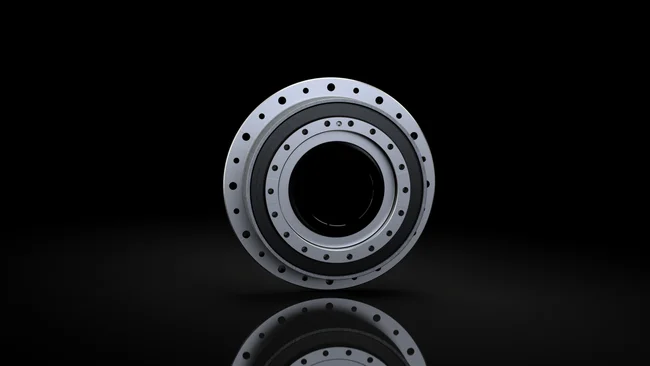

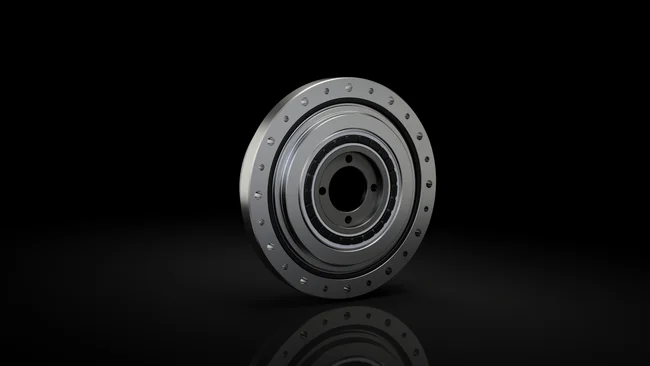

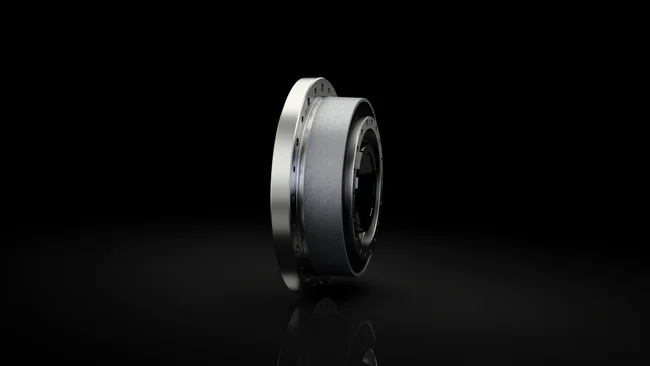

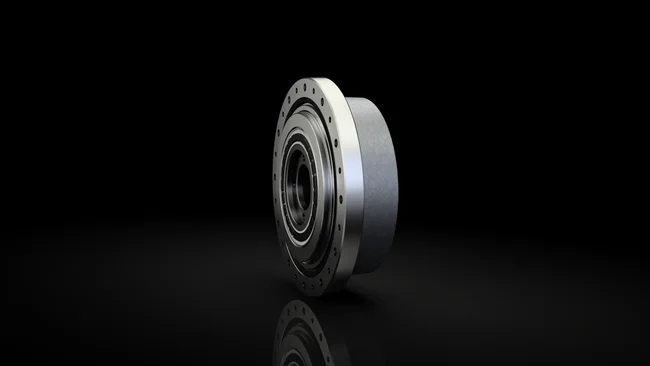

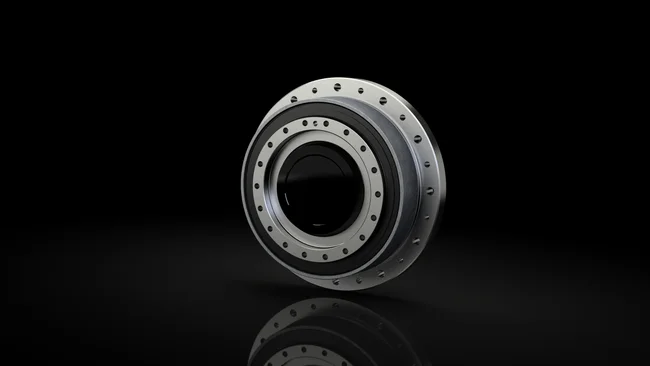

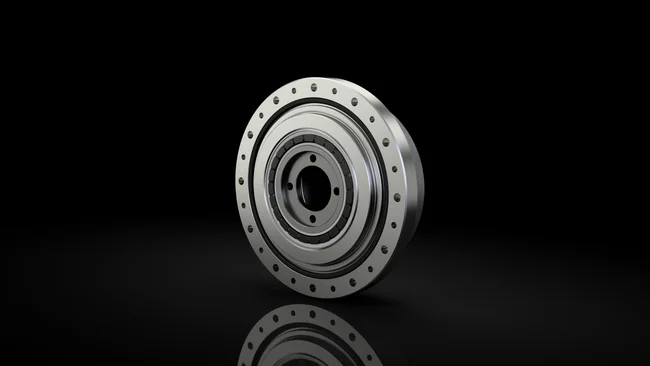

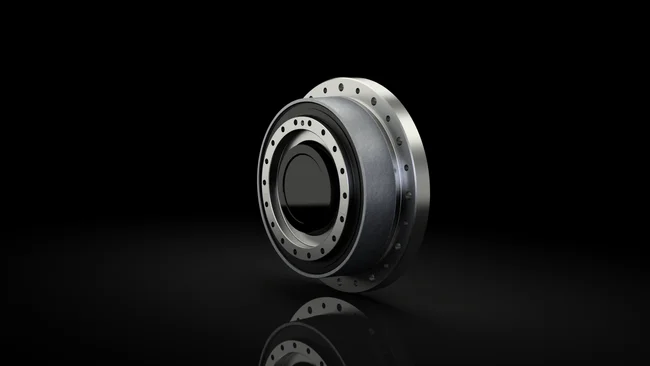

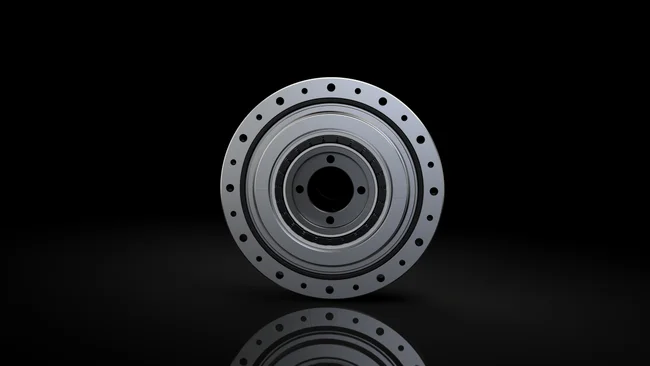

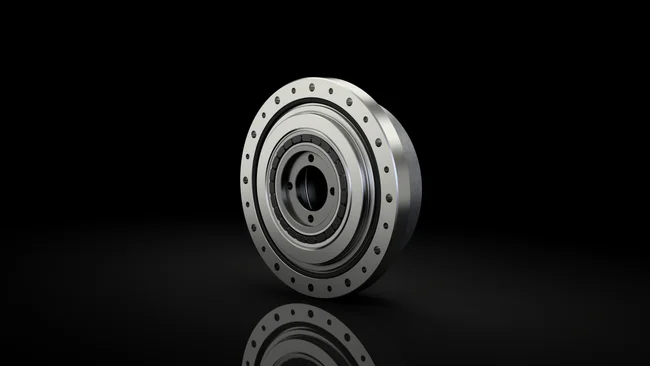

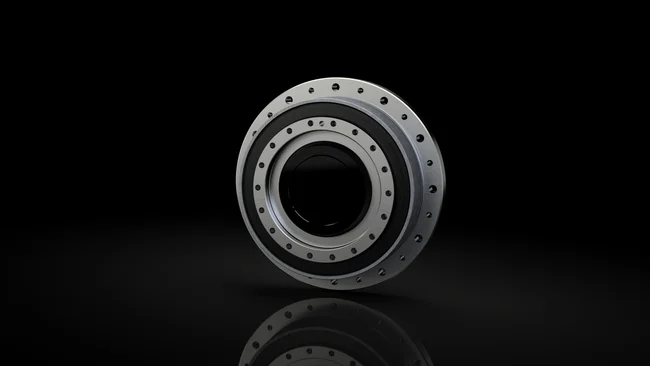

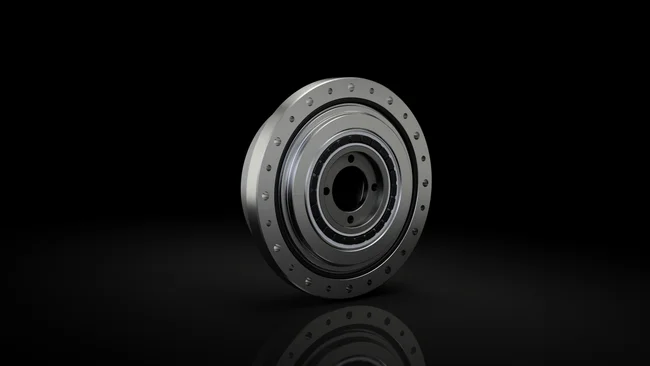

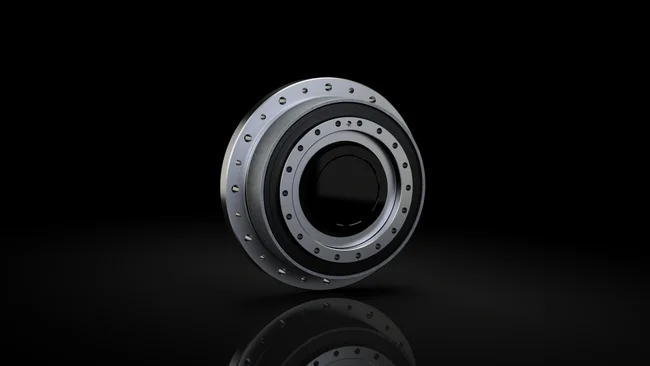

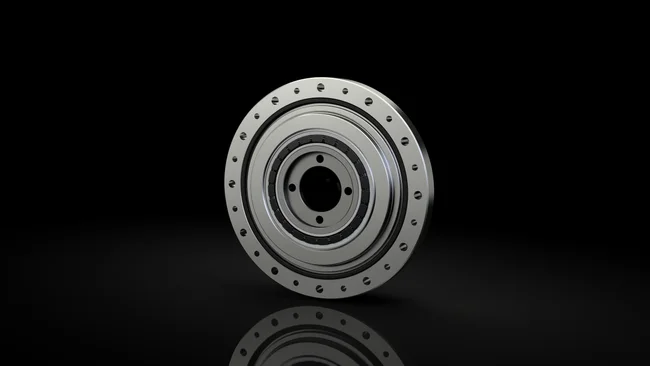

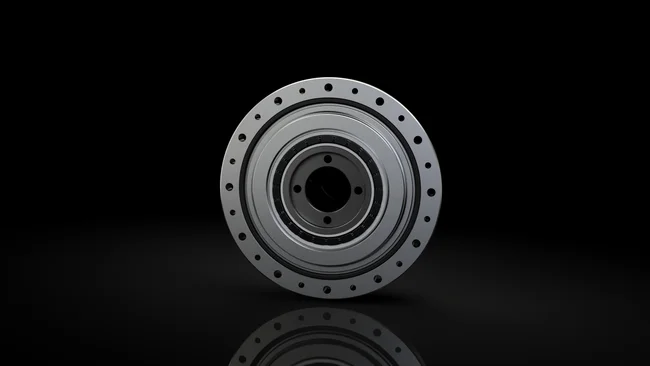

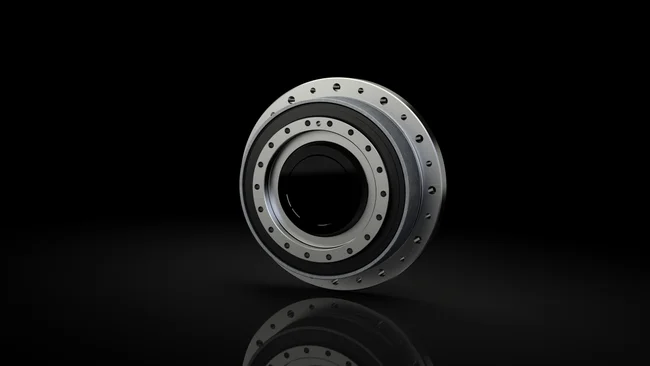

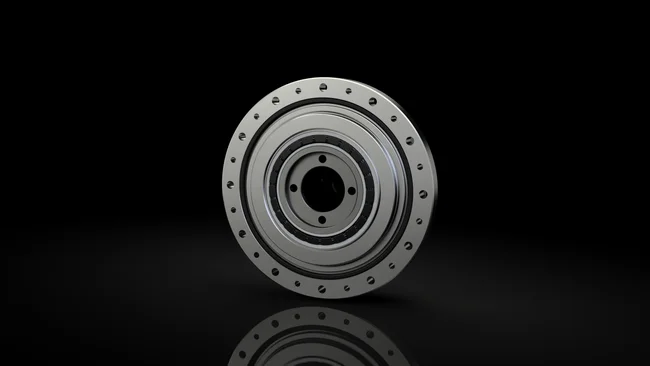

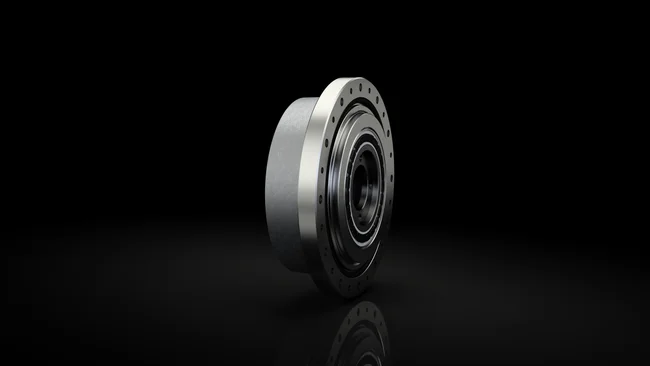

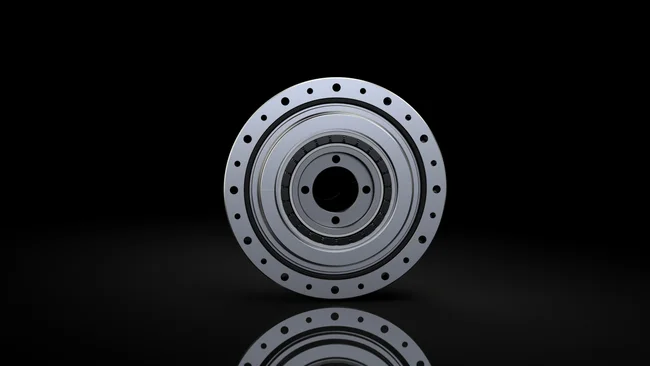

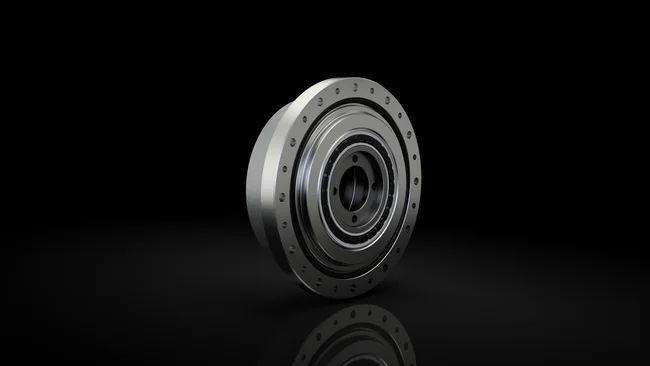

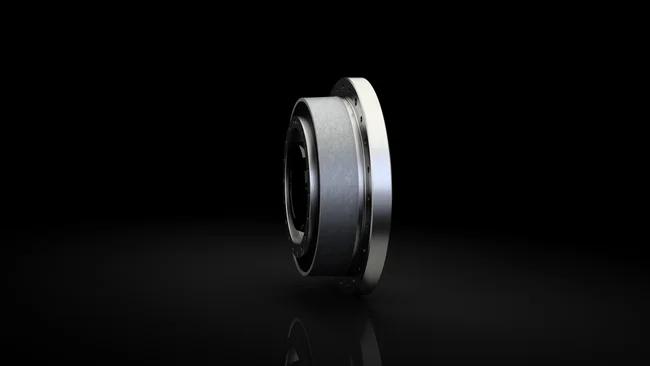

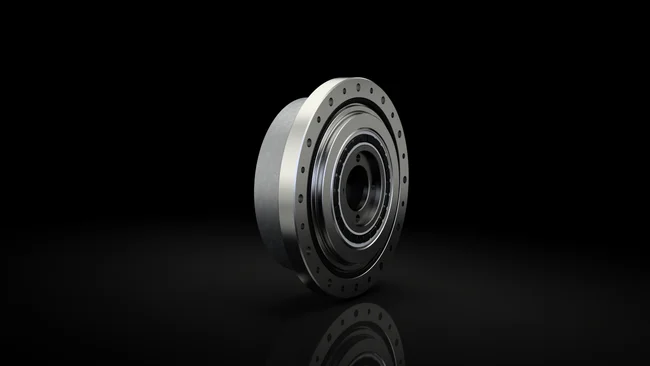

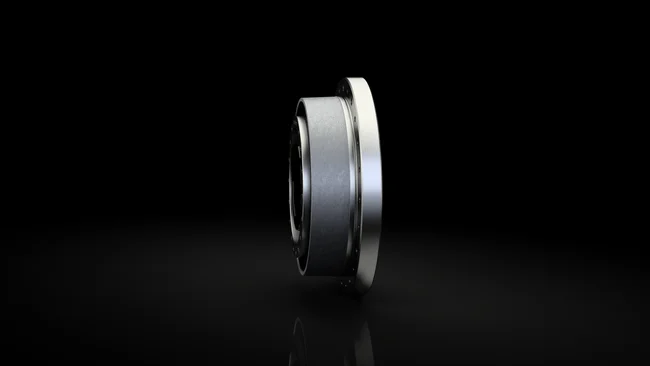

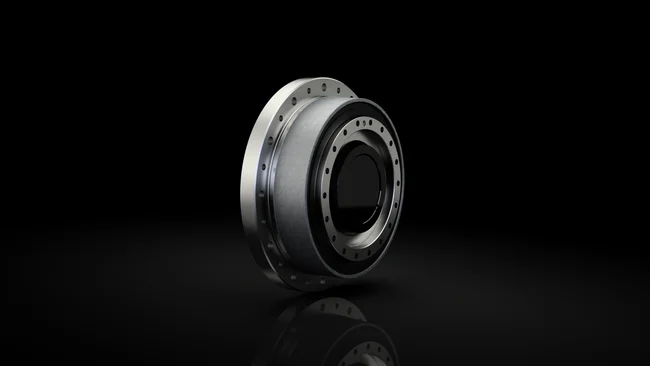

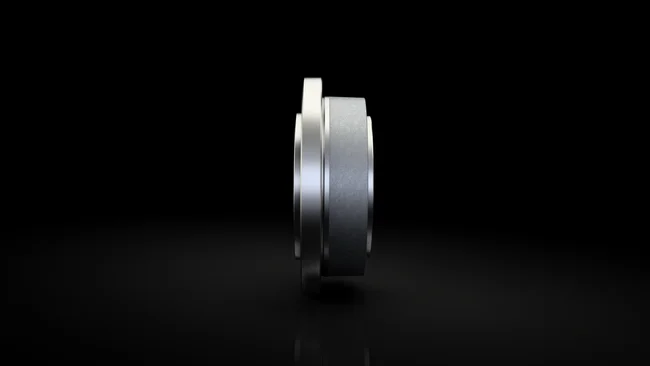

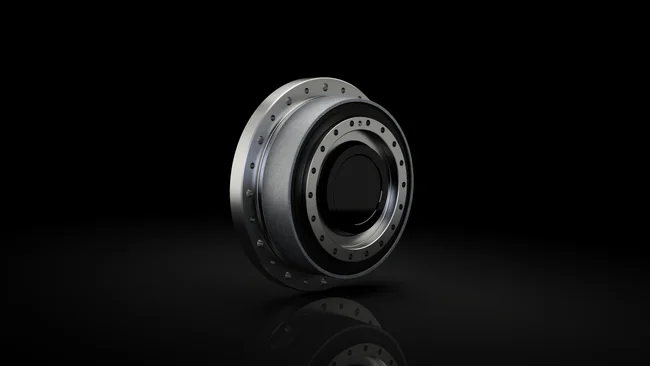

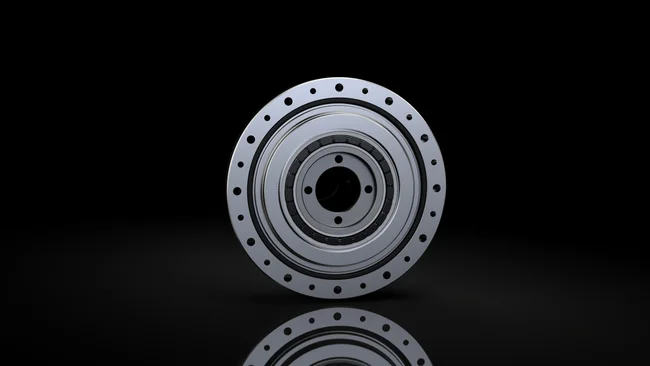

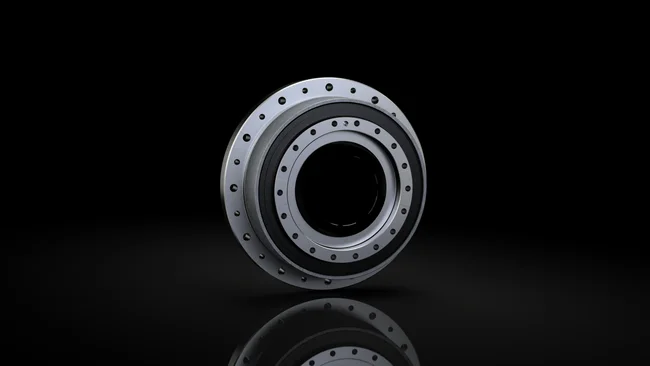

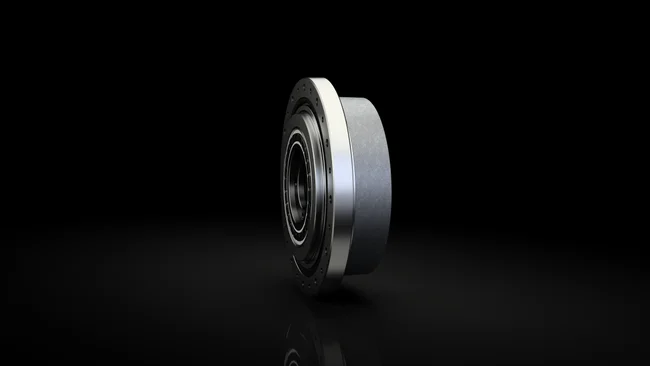

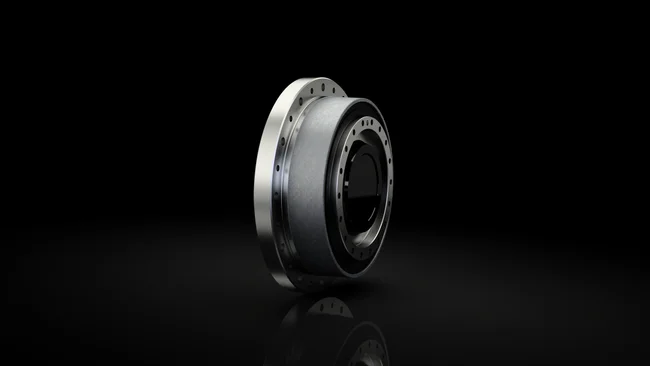

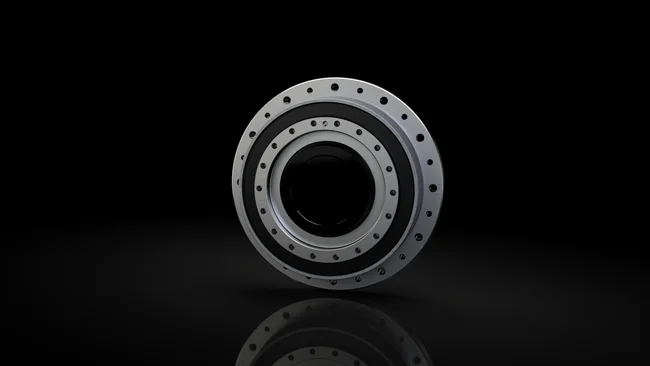

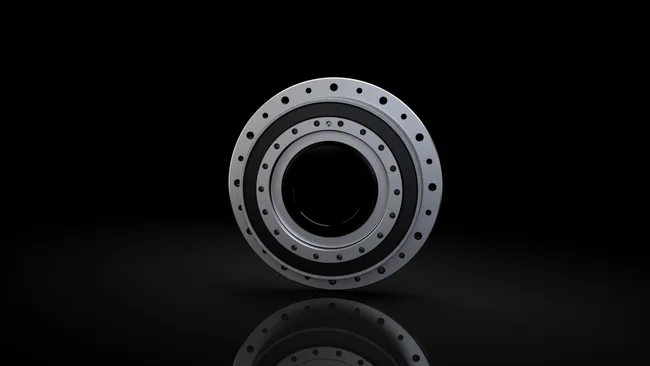

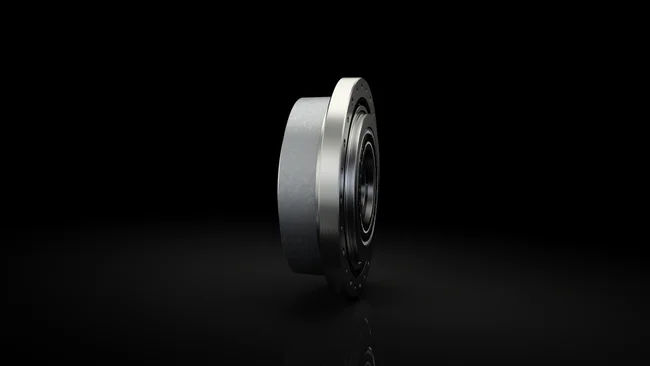

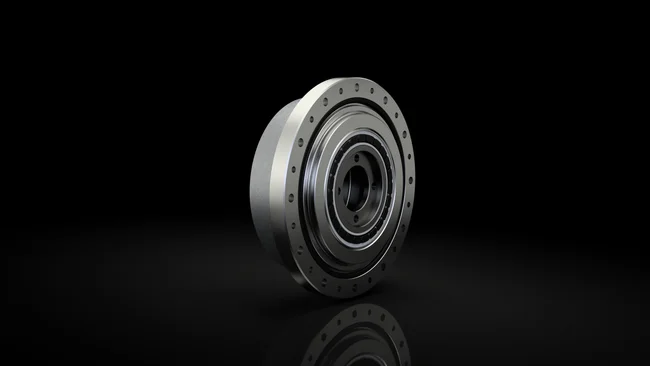

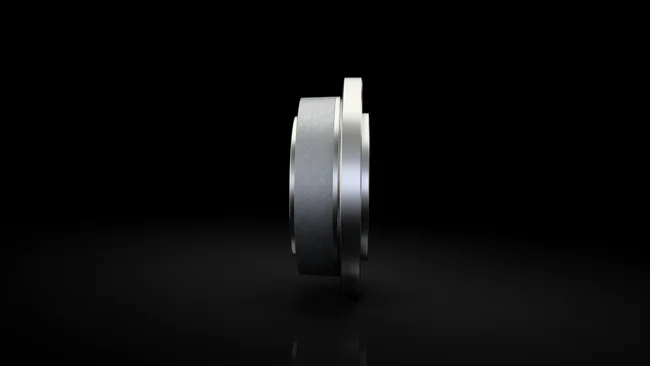

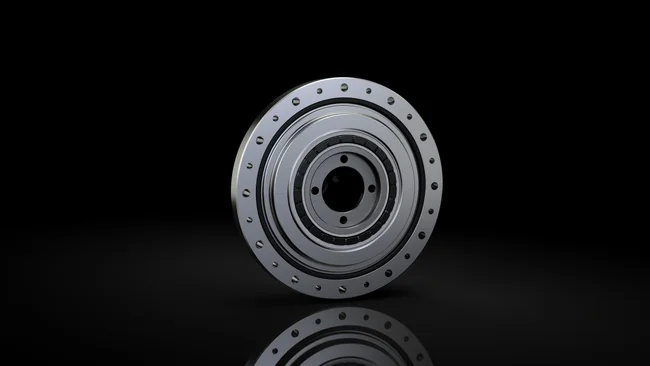

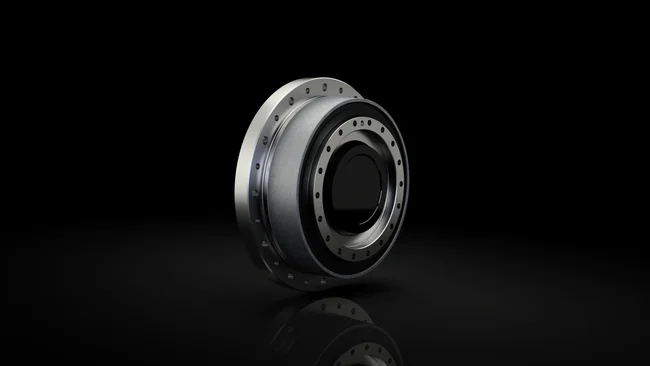

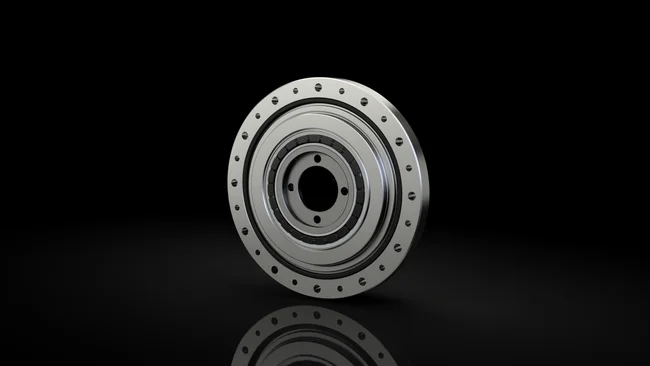

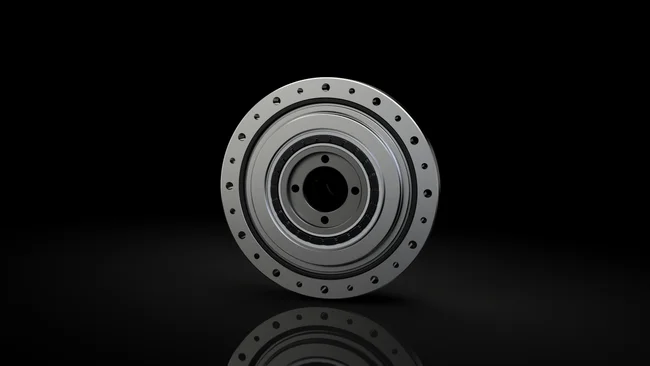

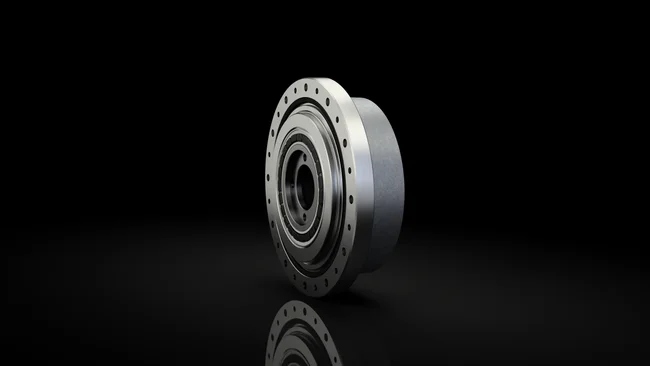

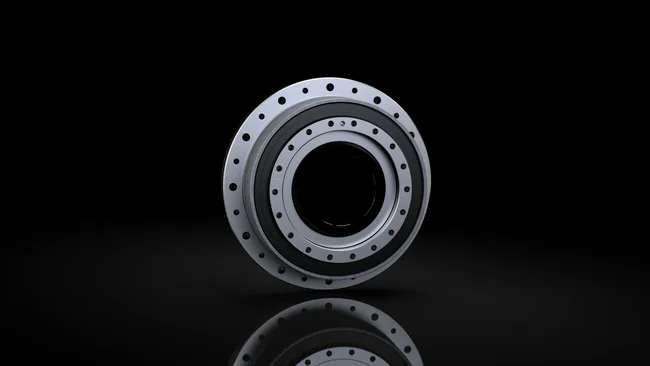

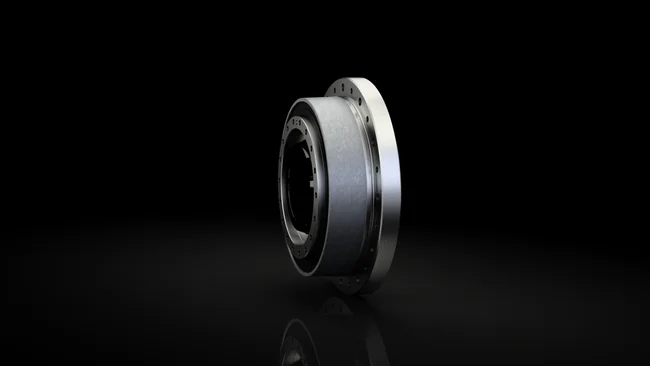

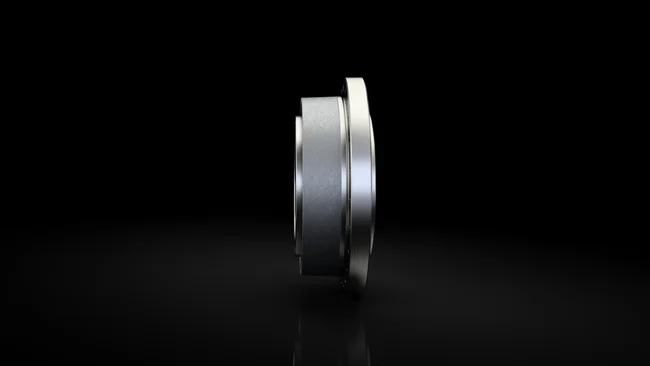

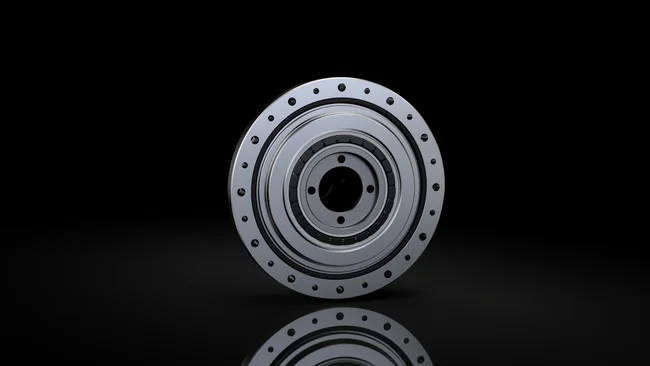

CSF-ULW

Outstanding low weight combined with a short design

Maximum torque:

1.8 … 92 Nm
Tilting moment:

2.9 … 18.9 Nm
Sizes:

8 … 20
Ratio:

30 … 160
Ø Hollow shaft:

3 … 19 mm

Downloads

Outstanding low weight combined with a short design

The CSF-ULW Series Gears are characterised by lowest weight combined with a short overall length. The ULW Series achieves the same performance data as the HFUC-2UH Series with a weight saving of approx. 50 % and a length reduction of approx. 30 %. These precision gears are ideal for use in hand axes of small and collaborative robots, as well as for industrial applications where low weight is required.
