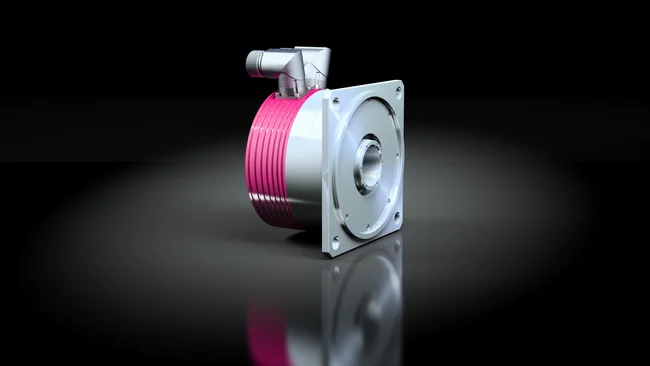

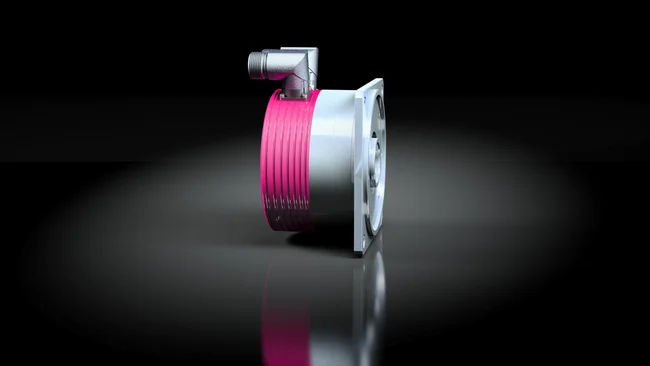

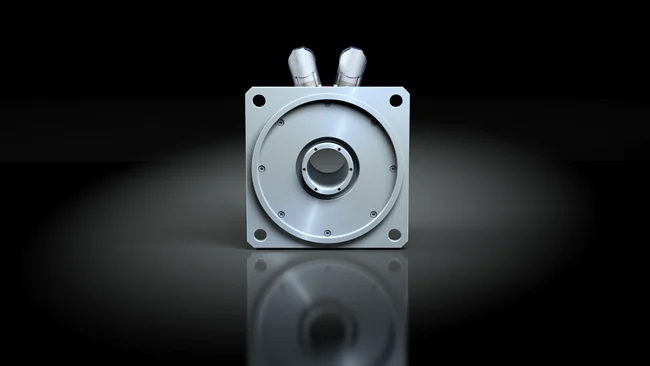

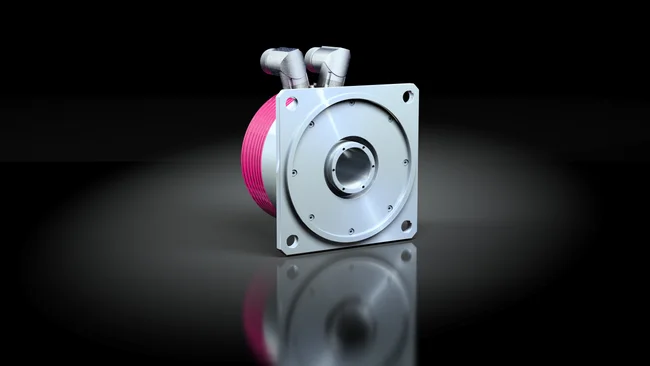

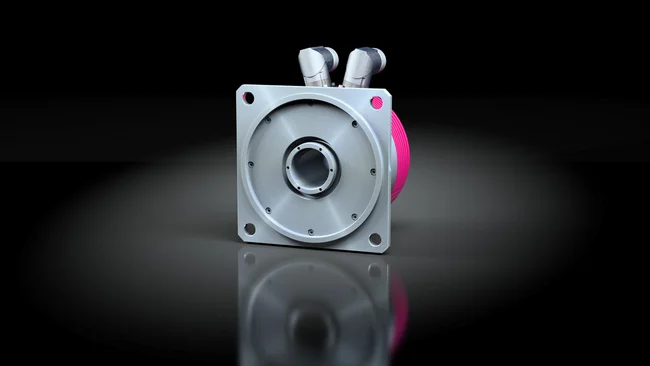

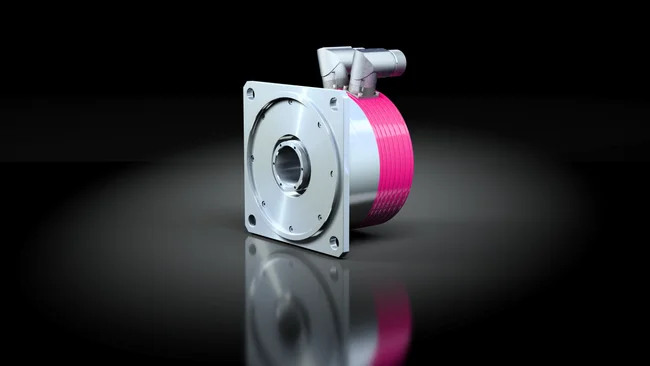

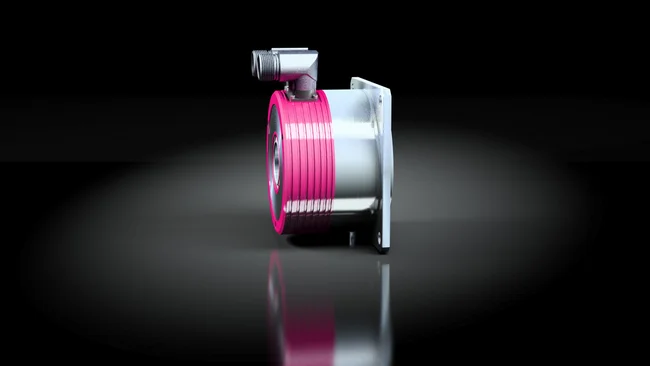

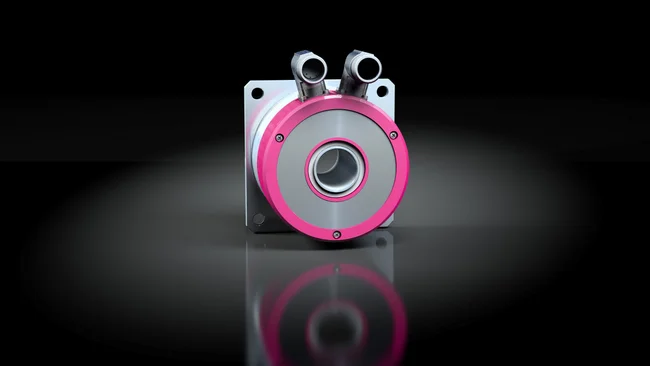

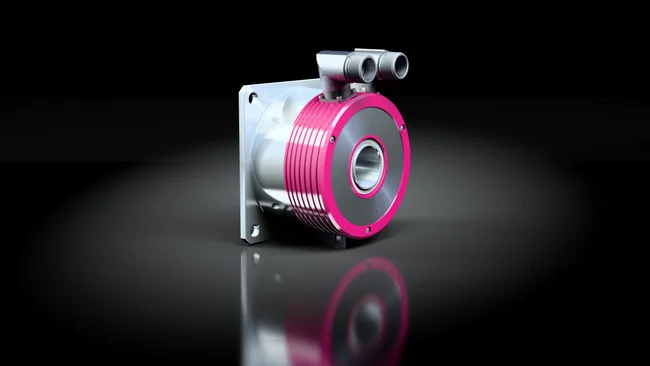

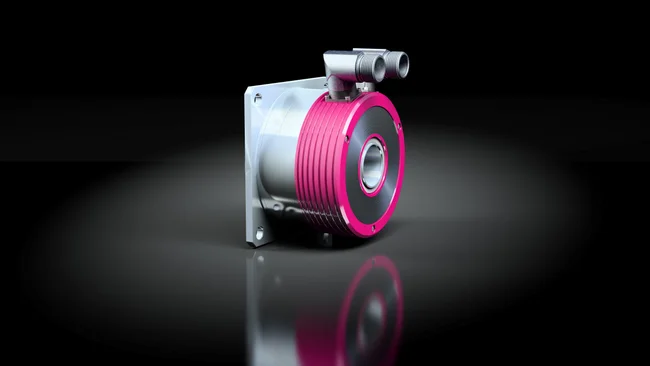

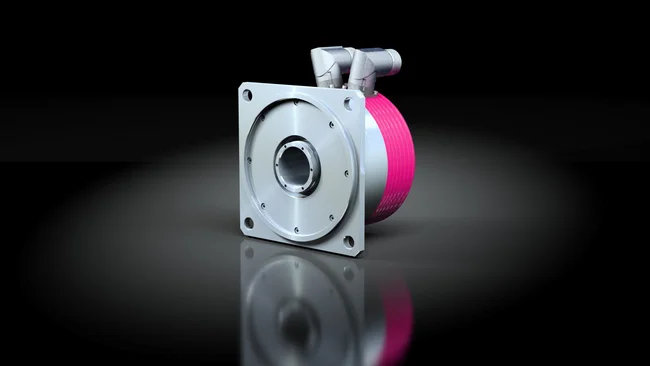

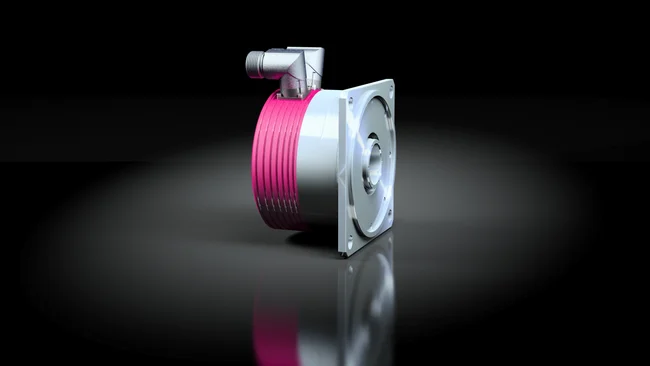

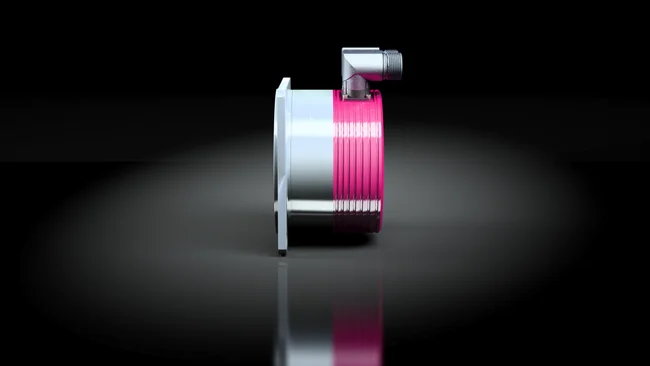

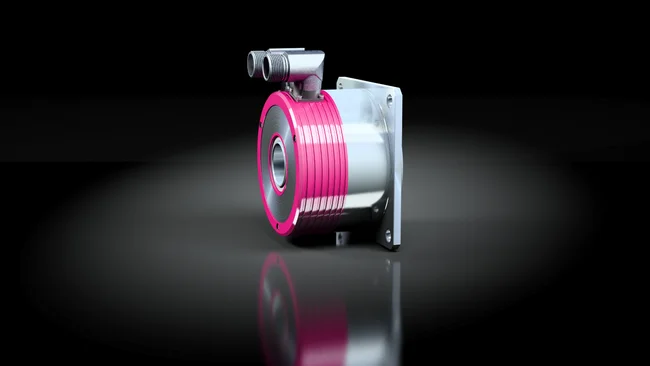

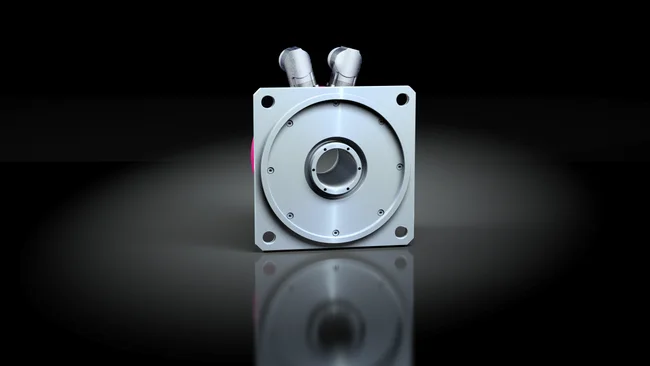

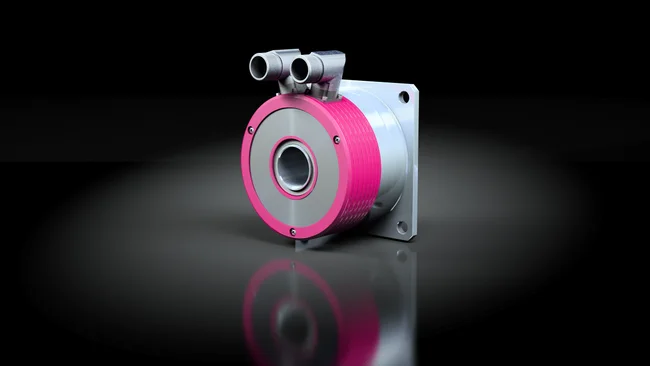

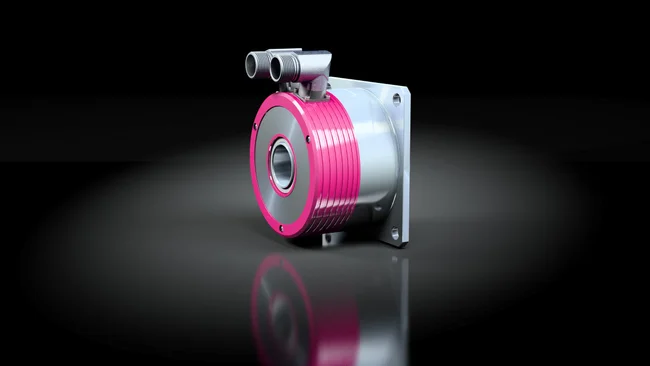

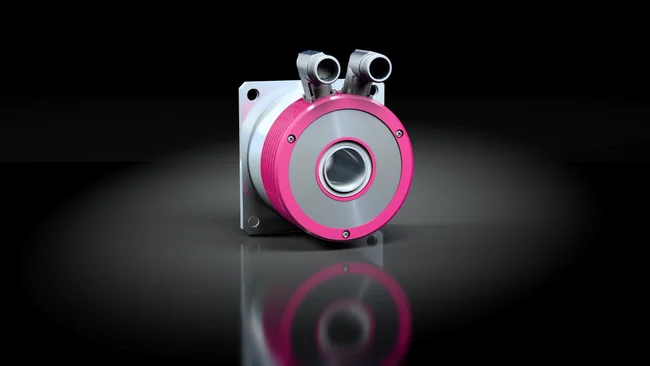

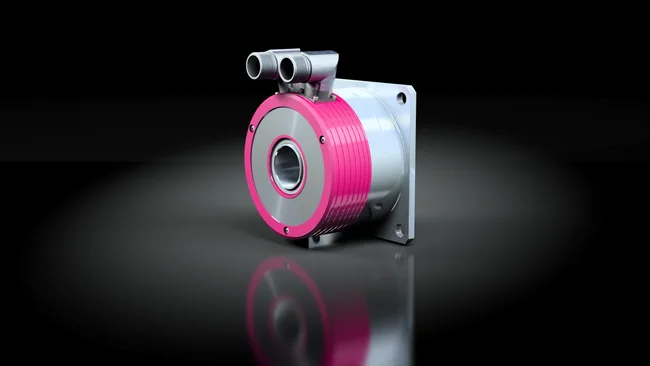

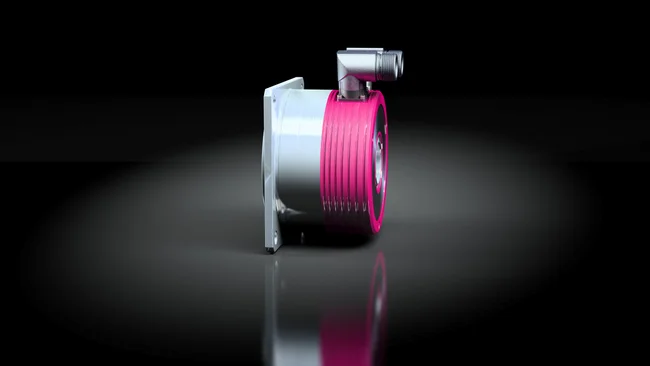

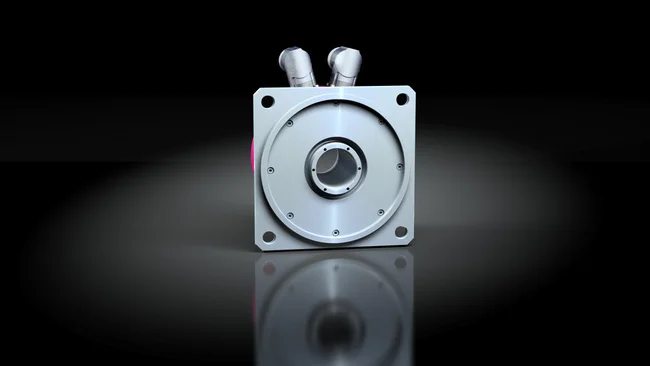

Click and drag for 360° view
Swipe

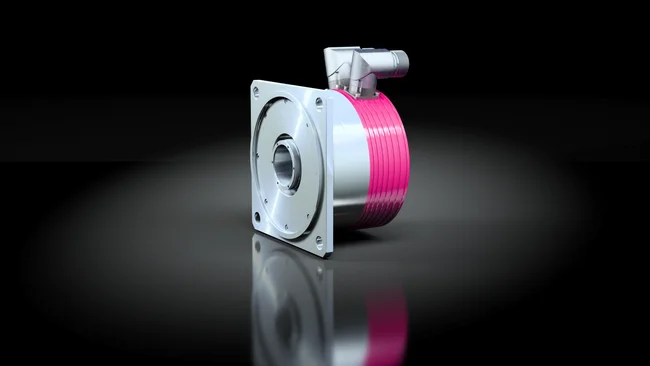

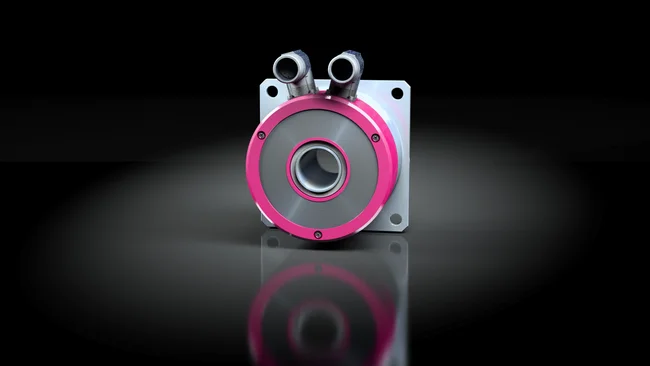

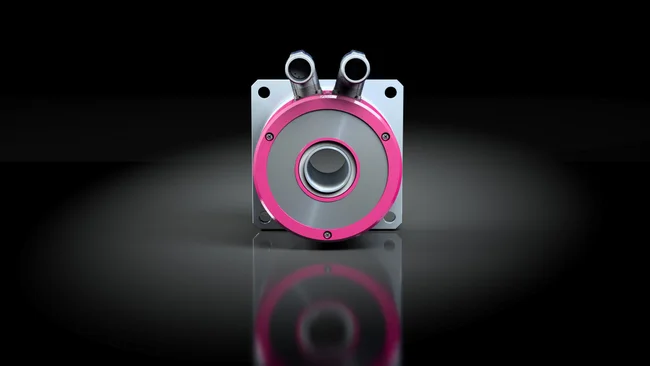

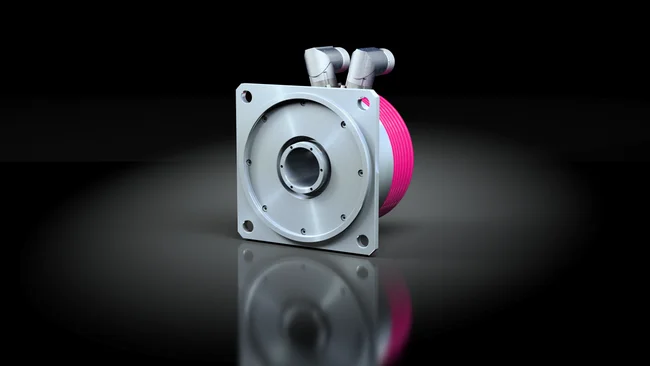

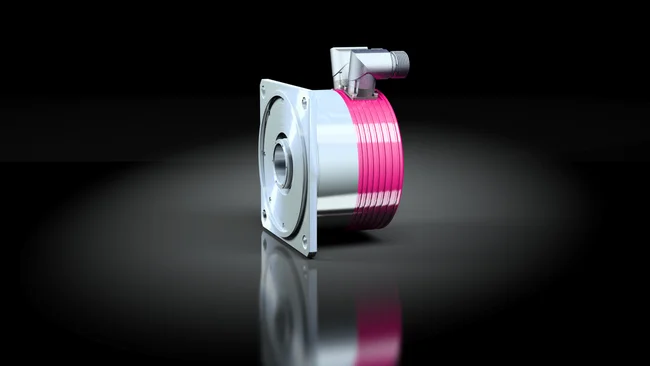

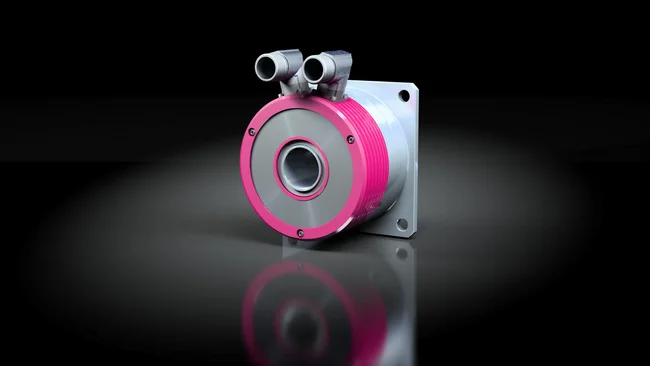

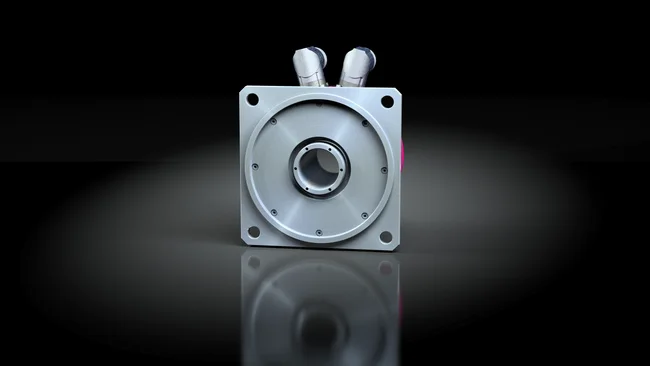

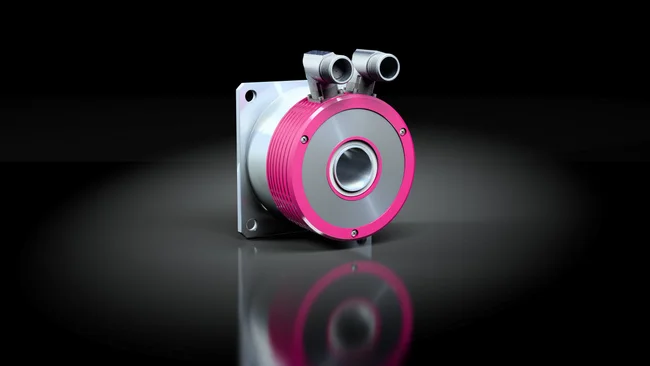

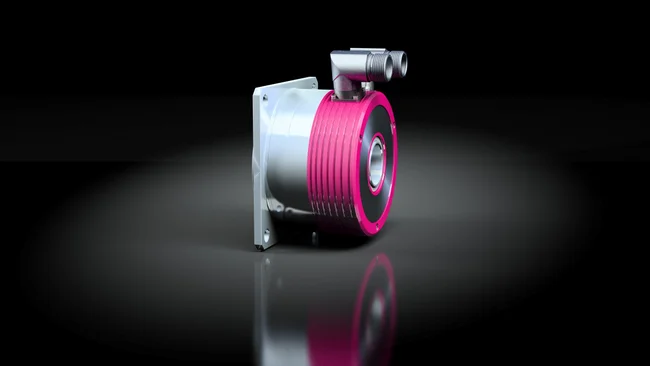

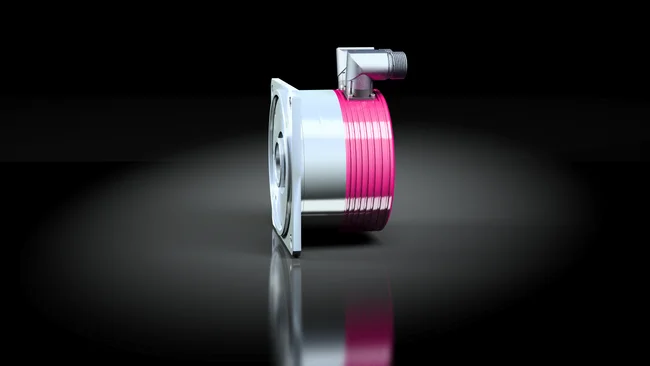

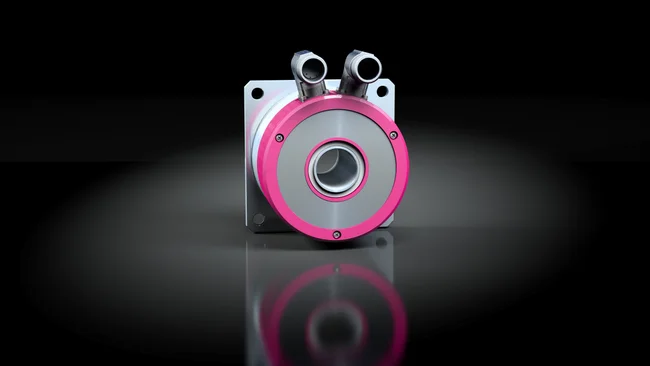

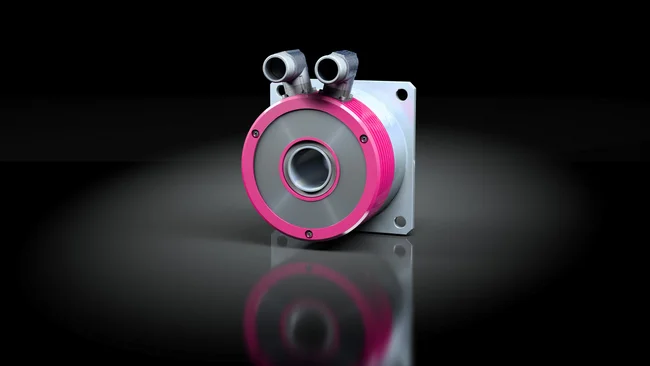

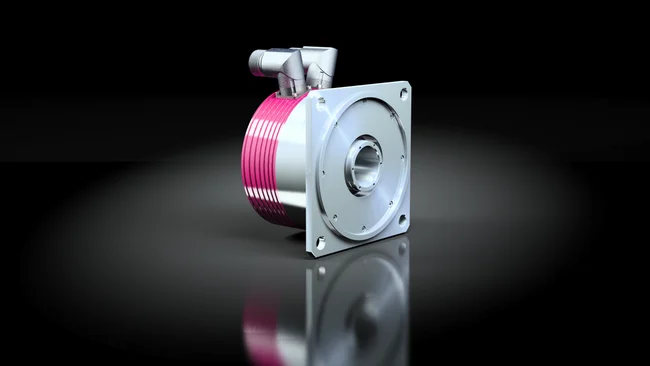

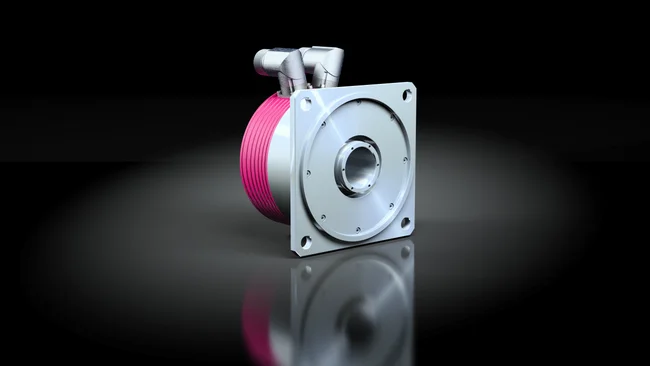

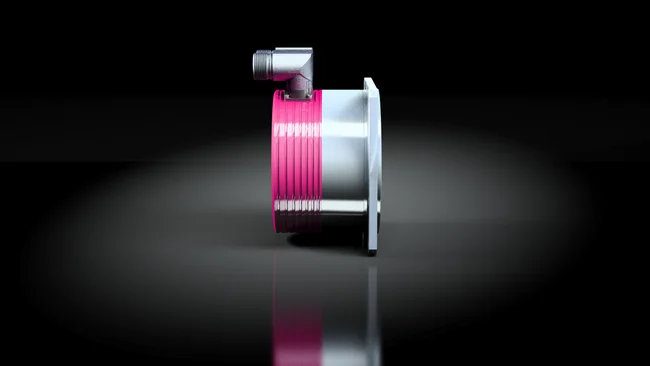

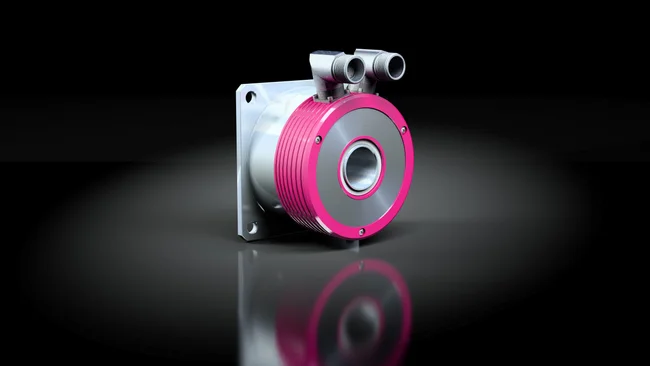

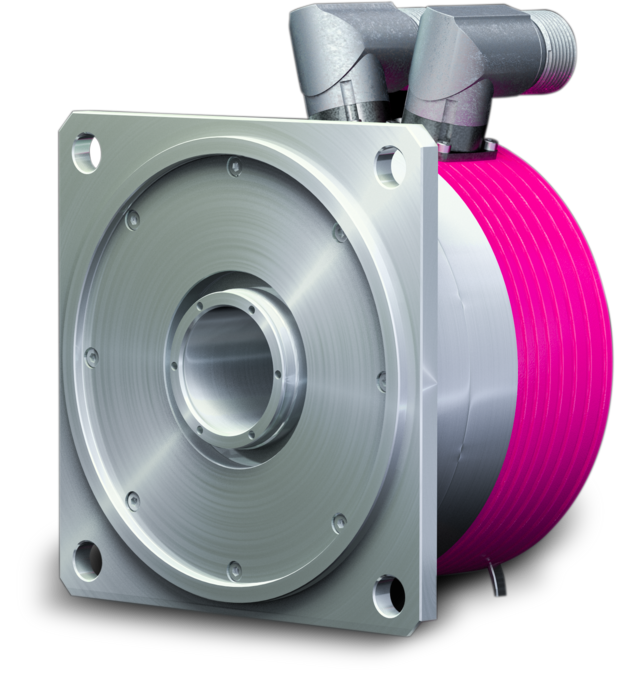

Servo actuators with hollow shaft
CHM
High speed and low cogging torque
-
Maximum torque:
2.8 … 37 Nm -
Maximum speed:
4000 … 6500 min-1 -
Tilting moment:
6.7 … 27 Nm -
Sizes:
83 … 1100 -
Ratio:
- -
Ø Hollow shaft:
21 … 46 mm
High speed and low cogging torque
The CHM Servo Motor is characterised by distributed winding, high resolution measuring systems and a hollow shaft. Available in five sizes, the motors offer maximum torques from 2.8 to 37 Nm at speeds of up to 6,500 rpm.
Applications
- Ophthalmic optics
- Surveillance systems
- Gimbal equipment
- Embossing machines
- Special machines
