Frameless motors

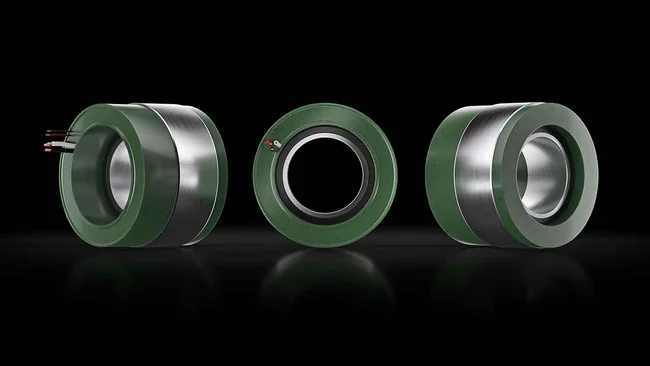

BHK

High dynamics in a compact assembly

Maximum torque:

3 ... 6 Nm
Maximum speed:

5600 ... 7300 min^-1
Continuous stall torque:

1 … 2 Nm
Ø Hollow shaft:

37.6 mm

High dynamics in a compact assembly

The frameless motors in the BHK series are characterised by their high overload capacity combined with a low dead weight and low moment of inertia.

The frameless motors in the BHK series impress with their high degree of compactness, overload capacity and dynamics. With their large inner bore, they are ideal for hollow shaft drives. However, very short installation lengths can also be achieved in solid shaft motors with these installation kits.

Features:

Stator ready for connection
High power density due to segmented stator winding
Short design
Small outer diameter
Large hollow shaft
Customising know-how in Germany
Complete production in Germany
